Audient iD14 USB Audio Interface Brugervejledning

1. Introduktion

The Audient iD14 is a high-performance USB audio interface designed for studio and portable recording. It features two Audient console mic preamps, class-leading AD/DA converters, and a versatile feature set including JFET D.I. and revolutionary ScrollControl. This manual provides essential information for setting up, operating, and maintaining your iD14 interface.

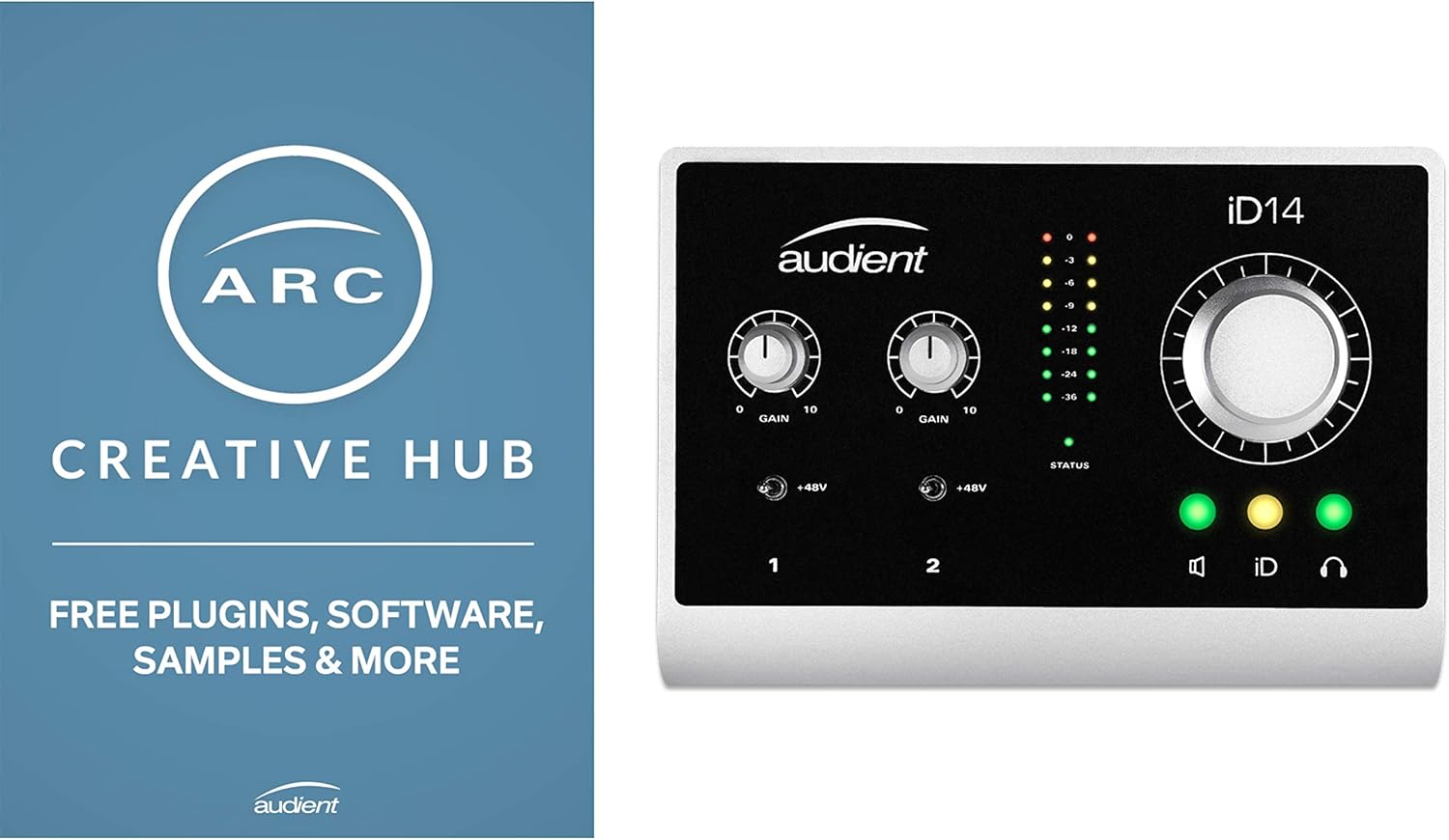

Figur 1: Forside view of the Audient iD14 USB Audio Interface, showcasing its controls and inputs.

2. Opsætning

2.1. Systemkrav

• PC or laptop manufactured after January 2006
• Intel Core 2 @1.6 GHz, or AMD equivalent processor
• 1 GB hovedhukommelse
• Supported Operating Systems: Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit), OS X 10.7.5 and later.

2.2. Driver installation

Before connecting your iD14, download the latest drivers from the official Audient website. Install the drivers according to the on-screen instructions. Regular driver updates are crucial for optimal performance and compatibility with your operating system and digital audio workstation (DAW) software.

2.3. Connecting the iD14

1. Connect the iD14 to your computer using a USB cable. The iD14 supports USB 2.0 bus power, meaning it can be powered directly from your computer's USB port without an external power adapter.
2. If you require phantom power (+48V) for condenser microphones, an external power adapter (12VDC 1.25A) must be used.
3. Connect your microphones to the XLR inputs on the rear panel.
4. Connect your studio monitors to the 1L OUT and 2R OUT quarter-inch speaker outputs on the rear panel.
5. For instruments like guitars, use the D.I. (Direct Input) quarter-inch input on the front panel.
6. Headphones can be connected to the quarter-inch headphone input on the front panel.
7. The Optical In (SPDIF) port on the rear allows for additional digital input connections, which can be useful for expanding your setup with other digital audio devices.

Figur 2: Bagside view of the Audient iD14, showing XLR inputs, speaker outputs, USB, and optical input.

Figur 3: Top-front view of the Audient iD14, highlighting the gain knobs, +48V switches, and main control knob.

3. Operating the iD14

3.1. Kontrol og funktioner

• Gain-knapper: Two dedicated gain knobs control the input level for the two microphone preamps. Disse præamps offer extremely clean gain, even at high levels, and can be further boosted by 10dB via software.
• +48V Phantom Power: Toggle switches activate +48V phantom power for each microphone input, necessary for condenser microphones. Remember to use the external power adapter when phantom power is engaged.
• Hovedkontrolknap: This large, hand-finished aluminum knob provides smooth operation. It can be reprogrammed to function as a scroll wheel or channel level adjustment within your mixing software.
• Tactile Buttons: High-quality tactile buttons are available for various functions, with one being programmable for custom assignments.

3.2. Audient iD Mixer Software

The iD14 comes with a dedicated software mixer application that provides comprehensive control over your audio routing and monitoring. This software allows you to:

• Control listening levels with precision.
• Select and manage input sources.
• Mute or solo individual channels.
• Digitally control master levels, complementing the physical main control knob.

4. Vedligeholdelse

To ensure the longevity and optimal performance of your Audient iD14, follow these maintenance guidelines:

• Rensning: Use a soft, dry cloth to clean the exterior of the unit. Avoid abrasive cleaners or solvents that could damage the finish.
• Opbevaring: Store the iD14 in a cool, dry place away from direct sunlight and extreme temperatures.
• Kabelstyring: Ensure all cables are connected securely and are not under undue strain. Proper cable management helps prevent damage to ports and connectors.
• Softwareopdateringer: Tjek regelmæssigt publikummet website for the latest driver and firmware updates. Keeping your software up-to-date is crucial for compatibility and performance, especially with evolving operating systems and DAWs.

5. Fejlfinding

If you encounter issues with your Audient iD14, consider the following troubleshooting steps:

• Ingen lyd/intermitterende lyd:
  • Verify all cables (USB, XLR, speaker) are securely connected.
  • Check your computer's sound settings to ensure the iD14 is selected as the input and output device.
  • Confirm that the gain levels on the iD14 and within your DAW are appropriately set.
  • Restart your computer and the iD14.
• Humming/Hissing Noise (Dirty Gain):
  • Ensure your microphone cables are balanced (XLR).
  • Check for ground loops. Try connecting your computer and iD14 to the same power outlet.
  • The iD14's preamps are designed for clean gain. If experiencing excessive noise, ensure gain levels are not pushed unnecessarily high.
• Driver Issues/Compatibility Problems:
  • Always use the latest drivers from the Audient website. Outdated drivers are a common cause of compatibility issues.
  • If experiencing crashes or unexpected behavior, reinstall the drivers.
  • Check the Audient support page for FAQs related to your operating system (e.g., Windows 10 Cortana conflicts, sample rate issues).
• Phantom Power virker ikke:
  • Confirm the external 12VDC 1.25A power adapter is connected and functioning correctly. Phantom power requires external power, not just USB bus power.

6. Specifikationer

7. Garanti og support

Audient is committed to providing excellent customer support and regularly updates drivers for their products. For the most up-to-date information regarding warranty, technical support, and driver downloads, please visit the official Audient webwebsted.

Regular driver updates are provided to ensure compatibility with the latest operating systems and software, addressing potential issues and enhancing performance. If you encounter any specific problems or have questions, contacting Audient's support directly is recommended.
