Indledning
The OttLite Folding Task Lamp provides a precise balance of contrast and brightness, offering low heat and low glare illumination for various tasks. Its unique fold-up design and portable handle make it ideal for use on desks, workstations, or for on-the-go activities. This manual provides essential information for the safe and effective use of your OttLite lamp.
Sikkerhedsoplysninger
Please read all instructions carefully before using the lamp. Gem denne vejledning til fremtidig reference.
- Sørg for at lamp placeres på en stabil, plan overflade for at forhindre væltning.
- Udsæt ikke lamp for vand eller for høj fugtighed.
- Use only the specified replacement bulb type (Type E, 13W CFL) for this lamp.
- Tag stikket ud af lamp from the power outlet before cleaning or replacing the bulb.
- Behold lamp væk fra brændbare materialer.
- Forsøg ikke at adskille eller reparere lamp yourself. Refer to qualified service personnel.
Pakkens indhold
- OttLite Foldeopgave Lamp (Base and Shade assembly)
- 13-watt CFL Bulb (Type E)
Opsætning
- Fjern forsigtigt lamp and all packaging materials from the box.
- Placer lamp on a stable, flat surface where you intend to use it.
- Fold l'en udamp shade from its compact, folded position. The lamp will automatically power on as the shade is opened.
- Sæt netledningen i en standard 120V AC stikkontakt.
Betjeningsvejledning
Tænd/sluk

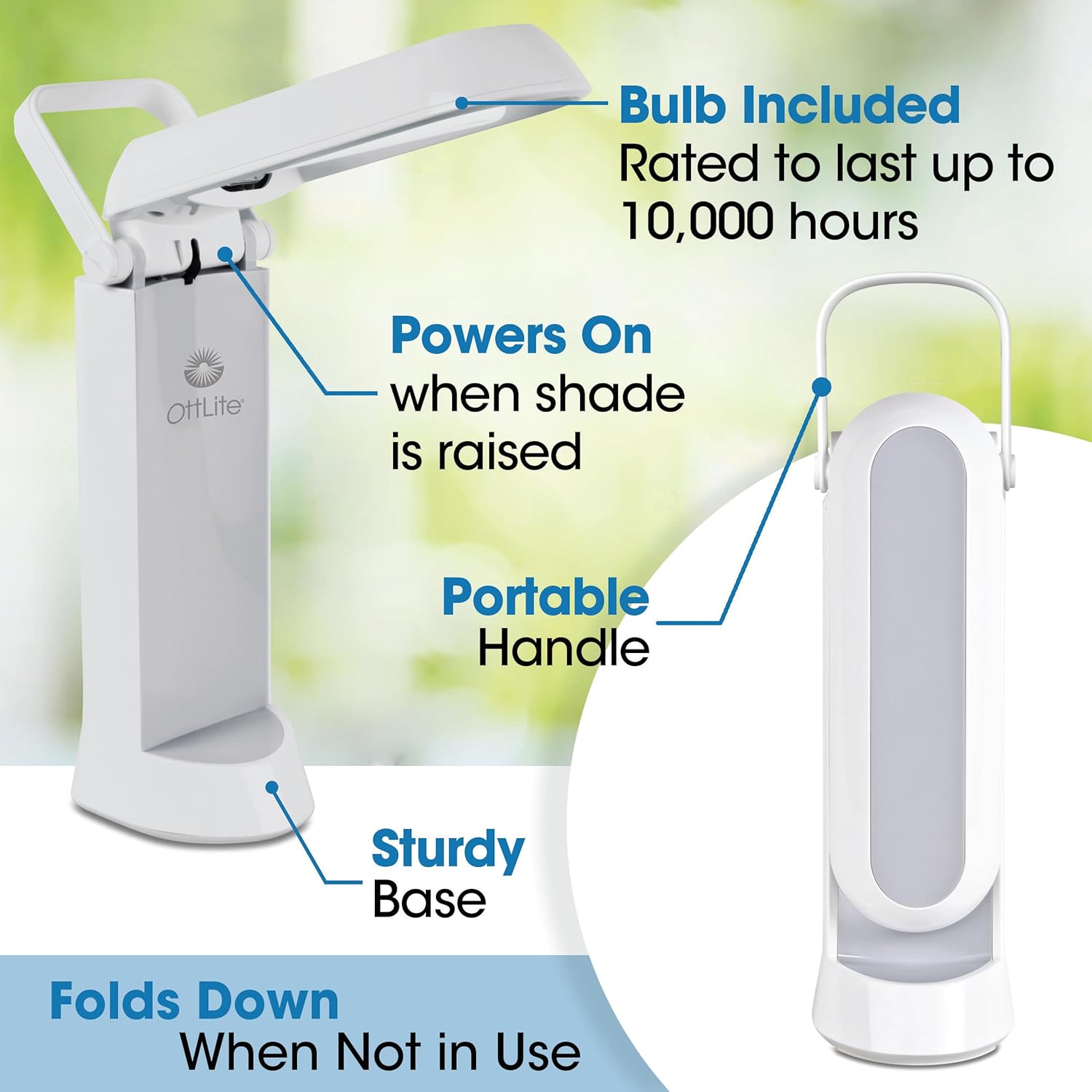

The OttLite Folding Task Lamp is designed for convenience. It automatically powers on when the shade is fully opened and turns off when the shade is closed and folded down.
Justering af skyggen
The multi-position shade can be easily adjusted to direct light precisely where it is needed. The lamp's neck can be adjusted from 11 ¼ inches to 17 ½ inches in height. Gently pivot the shade to achieve your desired lighting angle.
Bærbarhed
Lamp features a unique fold-up design and an integrated handle, making it highly portable. When not in use, simply fold the shade down into its compact form for easy storage or transport.
Opretholdelse
Rensning
For at rense lamp, ensure it is unplugged from the power outlet. Wipe the surfaces with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
Udskiftning af pære
The included 13-watt CFL bulb (Type E) is rated to last up to 10,000 hours. When replacement is necessary, ensure the lamp is unplugged and the bulb has cooled. Gently twist and pull the old bulb to remove it, then insert the new Type E 13-watt CFL bulb by aligning the pins and pushing it firmly into place.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | Not plugged in; Shade not fully open; Bulb is loose or burnt out. | Ensure power cord is securely plugged in; Fully open the lamp shade; Check if bulb is properly seated or needs replacement. |
| Lyse flimrer. | Loose bulb; Bulb nearing end of life. | Ensure bulb is securely seated; Replace the bulb if flickering persists. |
| Lamp er ustabil. | Ikke på en plan overflade. | Placer lamp på en fast, plan overflade. |
Specifikationer
- Model: 783003
- Lyskildetype: CFL
- Wattage: 13 watt
- Voltage: 120 volt (AC)
- Lysstyrke: 580 Lumen
- Pære base: E26
- Produktdimensioner (foldet): Cirka 4.63 cm D x 4.75 cm B x 20.75 cm H
- Justerbar højde: 11.25" til 17.5"
- Grundmateriale: Plast
- Udfør type: Poleret
- Varens vægt: 2 pund
- Speciel funktion: Sammenfoldelig
- Anbefalede anvendelser: Office, Desk, Crafting, Reading, Studying, Sewing, Needlework
Garanti og support
OttLite products are designed for quality and durability. For specific warranty information, please refer to the documentation included with your purchase or visit the official OttLite website. If you encounter any issues or require technical assistance, please contact OttLite customer support through their official channels.
OttLite Technologies
Webwebsted: www.ottlite.com
