SANSUI T-α7 FM/AM Stereo Tuner aelf Series Component Unit User Manual

Produkt overview

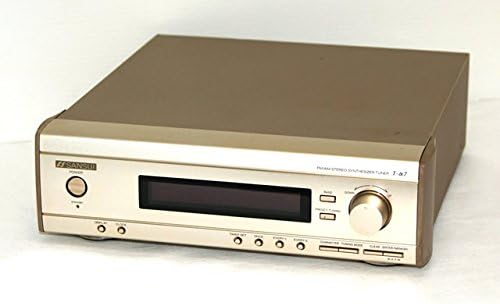

Front view of the SANSUI T-α7 FM/AM Stereo Tuner, showing the power button, display, tuning knob, and various control buttons.

The SANSUI T-α7 is an FM/AM stereo tuner from the aelf series, equipped with a comprehensive set of features designed for enhanced audio experience.

• Capable of presetting 15 stations for both FM and AM bands.
• Features AI Area Fine Memory, which automatically presets receivable frequencies and broadcast station names by simply selecting the region.
• Allows registration of original broadcast station names up to 5 digits using manual input.
• Supports AM stereo broadcasting.
• Equipped with a 3-program advanced timer supporting weekly operation (ONCE, EVERY1, EVERY2).
• When connected with other aelf series components, it allows for day of the week settings, play source designation, unattended recording, ON/OFF times, and amplifier volume position control.
• Includes a sleep timer function that automatically turns off the power when CD/tape playback ends.
• Features insulators made of newly developed material with excellent vibration dampegenskaber.
• Incorporates a clock display that dims when the power is off.
• Equipped with gold-plated output terminals for superior signal transfer.
• Remote control operation is possible with the aelf series amplifier's remote control.

Opsætning

1. Udpakning: Carefully remove the tuner from its packaging. Retain all packing materials for future transport or storage.
2. Placering: Placer tuneren på en stabil, plan overflade væk fra direkte sollys, varmekilder og for meget støv eller fugt. Sørg for tilstrækkelig ventilation omkring enheden.
3. Antenneforbindelse:
   • For FM reception, connect a 75Ω coaxial FM antenna to the FM ANTENNA terminal. For optimal reception, an outdoor antenna is recommended.
   • For AM reception, connect the supplied AM loop antenna to the AM ANTENNA terminals. Position the loop antenna for best reception.
4. Lydforbindelse: Connect the audio output terminals (gold-plated) of the T-α7 tuner to an available input on your amplifier or receiver using appropriate audio cables. Ensure correct left and right channel connections.
5. Strømtilslutning: Sæt netledningen i en passende stikkontakt.

Betjeningsvejledning

Grundlæggende betjening

1. Tænd/sluk: Tryk på MAGT knappen på frontpanelet for at tænde eller slukke enheden.
2. Bandvalg: Tryk på FM/AM knappen for at skifte mellem FM- og AM-båndene.
3. tuning:
   • Manuel indstilling: Drej på TUNING knappen til manuelt at justere frekvensen.
   • Automatisk tuning: Tryk på TUNING MODE button to select auto tuning, then use the tuning knob or preset buttons to scan for stations.
4. Forudindstillede stationer:
   • To store a station: Tune to the desired station, then press and hold one of the FORUDINDSTILLING buttons (1-15) until the display confirms storage.
   • To recall a station: Press the corresponding FORUDINDSTILLING knap.

Avancerede funktioner

• AI Area Fine Memory: Select your region from the menu (refer to the on-screen display or manual for specific steps) to automatically preset local frequencies and station names.
• Custom Station Name Registration: Use the manual input function (details in the full manual) to register custom 5-digit names for your favorite broadcast stations.
• Advanced Timer: Program up to three weekly operations (ONCE, EVERY1, EVERY2) for automatic power on/off and station selection.
• Sleep timer: Activate the sleep timer to automatically turn off the unit after a set period, or when connected CD/tape playback concludes.
• Fjernbetjening: If connected to a SANSUI aelf series amplifier, use the amplifier's remote control to operate the tuner's basic functions.

Opretholdelse

• Rensning:

  Wipe the exterior of the unit with a soft, dry cloth. For stubborn dirt, dampen the cloth slightly with water and a mild detergent, then wipe dry. Do not use abrasive cleaners, solvents, or alcohol, as they may damage the finish.

• Ventilation:

  Ensure that the ventilation openings on the unit are not blocked. Proper airflow is essential to prevent overheating.

• Strømledning:

  Kontrollér regelmæssigt netledningen for tegn på skader. Hvis den er beskadiget, skal du ophøre med at bruge den og kontakte kvalificeret servicepersonale.
• Opbevaring:

  If storing the unit for an extended period, disconnect it from the power outlet and store it in a cool, dry place, preferably in its original packaging.

Fejlfinding

If the problem persists after trying these solutions, please contact SANSUI customer support or a qualified service technician.

Specifikationer

FM-tunersektion

• Reception Frequency Range: 76.0 - 90.0 MHz
• Sensitivity (IHF): 2 µV
• Total Harmonic Distortion (Stereo): 0.4 % eller mindre
• S/N-forhold: 70 dB eller mere
• Separation (1kHz): 40 dB eller mere
• Selektivitet: 60 dB eller mere
• Optagelsesforhold: 2 dB eller mindre

AM Tuner Sektion

• Reception Frequency Range: 531 - 1,629 kHz
• Sensitivity (Bar Antenna): 53 dB/m
• Selektivitet: 30 dB eller mere

Generel

• Included Circuits/Devices: FM attenuator, Muting switch, Discriminator terminal, 2-meter method, 300Ω/75Ω coaxial antenna terminal
• External Dimensions (W x H x D): 400 x 120 x 240 mm (15.75 x 4.72 x 9.45 tommer)
• Vægt: 5.0 kg (11.02 lbs)
• Producentreference: T-α7
• Connector Type: Koaksial
• Lydudgangstilstand: Stereoanlæg
• Kontrolmetode: Fjern

Garanti og support

SANSUI products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official SANSUI webwebsted.

For technical support, service, or inquiries about replacement parts, please contact SANSUI customer service. Keep your model number (T-α7) and purchase information readily available when contacting support.

Bemærk venligst, at uautoriserede reparationer eller ændringer kan ugyldiggøre din garanti.
