Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your SKS-Germany Shockblade Front Fender. Designed for 26"-27.5" wheels, this fender effectively protects against splash and debris, enhancing your cycling experience. Please read this manual thoroughly before installation and use.

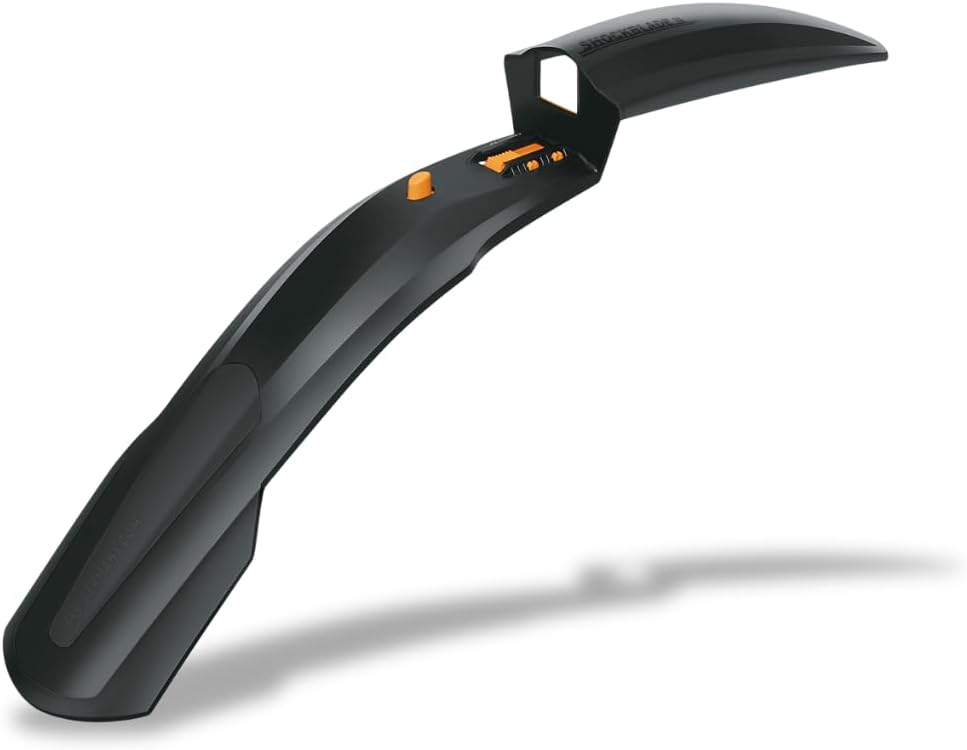

Figure 1: SKS-Germany Shockblade Fender. This image shows the overall design of the black front fender, highlighting its curved shape and quick-release mechanism.
Produkt overview
The SKS-Germany Shockblade Fender is engineered for durability and ease of use. Key features include:
- Kompatibilitet: Designed for 26" and 27.5" bicycle wheels.
- Quick Release System: Features a chuck cone that installs into the steerer tube, allowing the fender to be quickly attached or removed.
- Holdbar konstruktion: Made from dual compound plastic for enhanced durability and flexibility.
- Alsidig pasform: An adapter is available separately for rigid and Cannondale forks (not included).
- Tire Width: Recommended for tire widths up to 3 inches.
Figur 2: Top-down view of the Shockblade Fender. This perspective shows the full length and width of the fender, emphasizing its robust design and the central quick-release mechanism.
Opsætning og installation
Follow these steps to properly install your SKS-Germany Shockblade Fender:
- Prepare the Steerer Tube: Ensure the steerer tube of your bicycle fork is clean and free of obstructions. The chuck cone will be inserted into the bottom of the steerer tube.
- Insert Chuck Cone: Carefully insert the chuck cone (the orange component) into the steerer tube. Push it in until it is snug.
- Secure the Chuck Cone: The chuck cone expands to secure itself within the steerer tube. Ensure it is firmly seated and does not wobble.
- Attach the Fender: Align the quick-release mechanism on the fender with the installed chuck cone. Push the fender onto the cone until it clicks into place.
- Bekræft stabilitet: Gently pull on the fender to ensure it is securely attached and does not easily detach.
Figure 3: Chuck cone installation. This image illustrates the chuck cone component being inserted into the steerer tube of a bicycle fork.
Figure 4: Fender attachment. This image shows the quick-release mechanism of the fender engaging with the chuck cone, securing the fender to the bicycle.
Figure 5: Installed Shockblade Fender. This image displays the fender properly installed on a bicycle, ready for use.
Betjeningsvejledning
The SKS-Germany Shockblade Fender is designed for simple operation, primarily focusing on its quick-release function.
- Attaching the Fender: As described in the installation section, simply push the fender onto the pre-installed chuck cone until it locks securely.
- Detaching the Fender: To remove the fender, locate the quick-release button or lever on the fender's mounting point. Press or activate it while gently pulling the fender away from the chuck cone. This allows for easy removal when not needed, or for transport and cleaning.
Opretholdelse
Proper maintenance will extend the life of your Shockblade Fender:
- Rensning: Regularly clean the fender with mild soap and water to remove dirt, mud, and road grime. Avoid harsh chemicals that may damage the plastic.
- Inspektion: Periodically inspect the fender and its mounting mechanism for any signs of wear, cracks, or damage. Ensure the chuck cone remains securely seated in the steerer tube.
- Opbevaring: When not in use, store the fender in a cool, dry place away from direct sunlight to prevent material degradation.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Fender is loose or wobbles after installation. | Chuck cone not fully expanded or seated. | Re-insert the chuck cone and ensure it expands properly within the steerer tube. Verify the fender is fully clicked into the quick-release mechanism. |
| Fender does not fit into the steerer tube. | Incorrect steerer tube diameter or obstructions. | Ensure your bicycle's steerer tube is compatible with the fender's mounting system. Check for any internal obstructions. An adapter may be required for certain fork types (e.g., rigid, Cannondale). |
| Fender detaches unexpectedly. | Quick-release not fully engaged or damaged. | Ensure the quick-release mechanism clicks firmly into place. Inspect the quick-release and chuck cone for any damage or wear. |
Specifikationer
| Produktdimensioner | 58.42 x 7.62 x 12.7 cm |
| Varemodelnummer | 11451 |
| Farve | Sort |
| Størrelse | 26"-27.5" |
| Længde | 23 tommer |
| Materiale | Dual compound plastic |
| Varens vægt | 195 g |
| Mærke | SKS |
| UPC | 040025568123 |
| Installationstype | Chuck Cone (expands in steerer tube) |
| Type køretøjstjeneste | Cykel |
| Auto del position | Front |
Garanti og support
For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official SKS-Germany webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købsbevis til garantikrav.
SKS-Germany Official Webwebsted: www.sks-germany.com
