1. Introduktion
This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Albrecht AE Desktop 1300 Scanner Antenna. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Produktet er slutview
The Albrecht AE Desktop 1300 is a compact scanner station antenna designed for wideband reception across the 25 - 1300 MHz frequency range. Its design makes it suitable for indoor use or balcony installations. The antenna features a magnetic base for stable placement and comes with eight radial elements.
Nøglefunktioner:
- Frequency Range: 25 - 1300 MHz
- Impedans: 50 Ohm
- Connector Type: BNC
- Base: Magnetic
- Antenna Length: Approximately 100 cm
- Radials: 8 pieces, each 41 cm long
3. Pakkens indhold
Kontroller venligst, at alle nedenstående varer er til stede i din pakke:
- 1x Albrecht AE Desktop 1300 Antenna (main mast with radiating elements)

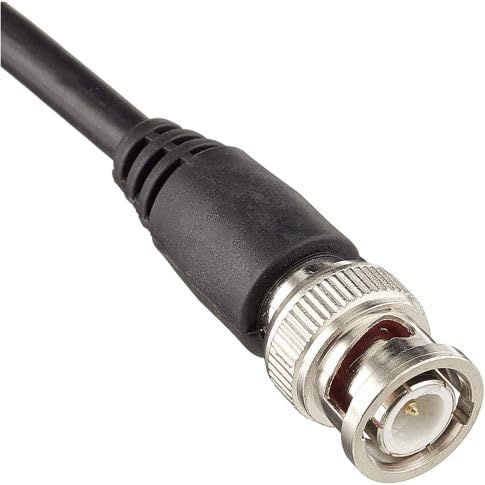

- 1x Magnetic Base with integrated coaxial cable (approx. 4m length) and BNC connector
- 8x Radial Elements (approx. 41 cm each)
- 1x Hex Key (for assembly)
4. Opsætningsvejledning
Follow these steps to assemble and set up your antenna:
4.1. Assembling the Radials
- Pak forsigtigt alle komponenter ud.
- Locate the magnetic base and the eight radial elements.
- Insert each of the eight radial elements into the designated slots around the base of the antenna. Ensure they are securely fastened, using the provided hex key if necessary, to prevent loosening.
4.2. Antenna Placement
For optimal reception, place the antenna in an elevated position, clear of obstructions. The magnetic base allows for stable placement on suitable metallic surfaces. It is designed for indoor use or on a balcony.
- Choose a location with minimal interference from electronic devices.
- Ensure the antenna is upright and stable.
4.3. Connecting to Your Receiver
- Locate the coaxial cable attached to the antenna's magnetic base.
- Connect the BNC connector at the end of the coaxial cable to the antenna input port on your scanner or receiver. Ensure the connection is firm.
5. Betjeningsvejledning
Once the antenna is assembled and connected, your scanner or receiver is ready for operation. The Albrecht AE Desktop 1300 is a passive antenna and does not require external power.
- Turn on your scanner/receiver and tune to the desired frequency within the 25 - 1300 MHz range.
- Adjust the position of the antenna slightly if reception is poor, as local conditions can affect signal strength.
6. Vedligeholdelse
The Albrecht AE Desktop 1300 antenna requires minimal maintenance to ensure continued performance.
- Rensning: Periodically wipe the antenna elements and base with a soft, dry cloth to remove dust. Do not use abrasive cleaners or solvents.
- Inspektion: Regularly check the radial elements and cable for any signs of damage or corrosion. Ensure all connections remain secure.
- Miljøbeskyttelse: While suitable for balcony use, prolonged exposure to extreme weather conditions (heavy rain, snow, direct sunlight) may reduce its lifespan. Consider bringing it indoors during severe weather.
7. Fejlfinding
Hvis du oplever problemer med din antenne, skal du overveje følgende:
- Dårlig modtagelse:
- Ensure the antenna is placed in an elevated position, away from large metallic objects or other electronic devices that may cause interference.
- Kontroller alle kabelforbindelser for at sikre, at de er sikre.
- Try repositioning the antenna to a different location.
- Verify that your scanner/receiver is functioning correctly and tuned to the correct frequency.
- Intet signal:
- Confirm the BNC connector is fully inserted into your receiver's antenna input.
- Inspect the coaxial cable for any visible damage (cuts, kinks).
- Ensure all radial elements are properly attached.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Albrecht |
| Model | AE Desktop 1300 (2040290) |
| Frekvensområde | 25 - 1300 MHz |
| Impedans | 50 Ohm |
| Connector Type | BNC |
| Antenne type | Scanner Station Antenna |
| Base Type | Magnetisk base |
| Antennens længde | 100 cm |
| Radial Length | 8 x 41 cm |
| Strømkilde | Electrically Wired (Passive) |
| Produktdimensioner | 41L x 41B x 100H cm |
| Vægt | 1.64 kg (pakkevægt) |
9. Garanti og support
Warranty information for the Albrecht AE Desktop 1300 antenna is typically provided by the manufacturer or the point of purchase. Please refer to the documentation included with your product or visit the official Albrecht website for details regarding warranty coverage and customer support. For returns or exchanges, please consult the retailer's policy where the product was purchased.
