Varta Blue Dynamic E43 bilbatteri brugsanvisning

1. Introduktion

This manual provides essential information for the safe and effective use of your Varta Blue Dynamic E43 car battery. The Varta Blue Dynamic E43 is a 12V 72Ah 680A battery designed for reliable performance in various vehicles. Please read these instructions carefully before installation and use.

Varta Blue Dynamic E43 Car Battery, front view

Billede 1.1: Forside view of the Varta Blue Dynamic E43 car battery, showcasing its design and labeling.

2. Sikkerhedsoplysninger

Car batteries contain corrosive acid and produce explosive gases. Always observe the following safety precautions:

Always wear safety glasses and protective gloves when handling the battery or performing any related work.
When removing the transport safeguards (plugs), deflagrations are possible. The reservoir may be under pressure if necessary. Always remove the safeguards with the opening facing outwards.
Keep sparks, flames, and lit cigarettes away from the battery.
Sørg for tilstrækkelig ventilation, når du arbejder med batterier.
Opbevares utilgængeligt for børn.

3. Opsætning og installation

Proper installation is crucial for battery performance and safety.

The battery is delivered in special packaging to ensure safe transport. Inspect the packaging and battery for any damage upon receipt.
Before installation, ensure that the transport safeguards (plugs/caps) on both sides of the battery are removed. Failure to do so can lead to pressure buildup.
Identify the terminal type (Type A) and polarity (Positive Right). Ensure these match your vehicle's requirements.
Disconnect the negative terminal first from the old battery, then the positive.
Place the new Varta Blue Dynamic E43 battery securely in the battery tray.
Connect the positive terminal first, then the negative terminal. Ensure all connections are tight and secure.
Apply a thin layer of terminal grease to prevent corrosion.

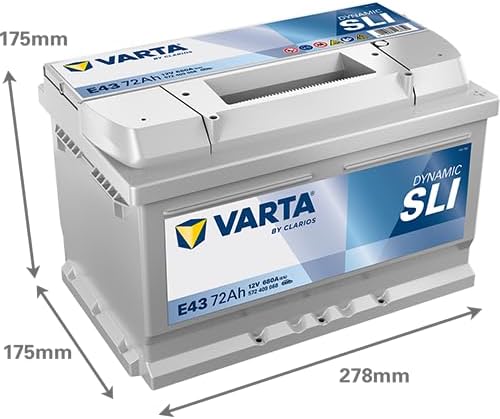

Varta Blue Dynamic E43 Car Battery with dimensions

Billede 3.1: Side view of the Varta Blue Dynamic E43 battery, illustrating its dimensions (278mm length, 175mm width, 175mm height).

4. Betjening af batteriet

The Varta Blue Dynamic E43 is a maintenance-free battery designed for automotive starting applications. Once correctly installed, it operates as part of your vehicle's electrical system.

Ensure your vehicle's charging system is functioning correctly to maintain optimal battery charge.
Avoid deep discharges, as these can significantly reduce battery life.
If the vehicle is not used for extended periods, consider using a trickle charger to maintain charge.

5. Vedligeholdelse

While the Varta Blue Dynamic E43 is a maintenance-free battery, periodic checks can extend its lifespan and ensure reliable operation:

Hold terminalerne rene: Regularly inspect battery terminals for corrosion. Clean any corrosion with a wire brush and a mixture of baking soda and water. Rinse with clean water and dry thoroughly.
Check Battery Tray: Ensure the battery is securely fastened in its tray to prevent vibration damage.
Inspect Battery Case: Look for any cracks, bulges, or leaks in the battery case. If found, the battery should be replaced immediately.
Skærmopladning: If your vehicle is stored for long periods, periodically check the battery voltage or use a smart charger to keep it fully charged.

6. Fejlfinding

If you experience issues with your Varta Blue Dynamic E43 battery, consider the following common problems and solutions:

Problem	Mulig årsag	Løsning
Motoren drejer langsomt eller slet ikke	Discharged battery, loose/corroded terminals, faulty starter motor	Charge battery, clean and tighten terminals, test starter motor
Headlights dim	Lav batteriopladning, defekt generator	Check charging system, charge battery
Batteriadvarselslampe på instrumentbrættet	Faulty alternator, loose fan belt, battery issue	Inspect charging system, check belt tension, test battery

If these steps do not resolve the issue, consult a qualified automotive technician.

7. Specifikationer

Detailed technical specifications for the Varta Blue Dynamic E43 battery:

Feature	Specifikation
Mærke	Varta
Model	Blue Dynamic E43
Voltage	12 volt
Kapacitet (Ah)	72 Ah
Kold cranking Amps (CCA)	680 A
Varens vægt	11.3 kilo
Produktmål (L x B x H)	27.8 x 17.5 x 17.5 cm
Batterisammensætning	Blysyre
Antal celler	6
Indre modstand	17.64 Milli-ohms mΩ
Terminaltype	Type A
Polaritet	Positive Right
Producentens modelnummer	5724090683132
OEM Serial Number	572 409 068
Type køretøjstjeneste	Heavy Duty Vehicle, Light Commercial Vehicle, Car

Front view of Varta Blue Dynamic E43 battery

Billede 7.1: Forside view of the Varta Blue Dynamic E43 battery, showing the Varta logo and model details.

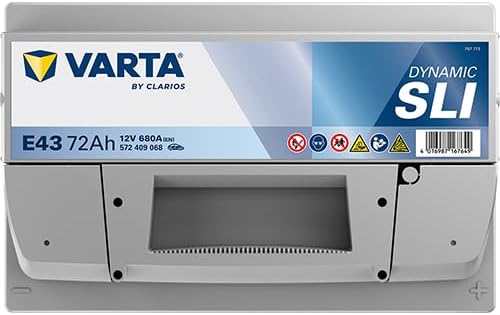

Top view of Varta Blue Dynamic E43 battery

Billede 7.2: Top view of the Varta Blue Dynamic E43 battery, displaying the terminal layout and safety symbols.

8. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact your Varta retailer. Always ensure you consult legal information regarding battery obligations and disposal according to local regulations (e.g., § 10 BattG).

For further assistance, please visit the official Varta webwebsted eller kontakt deres kundeserviceafdeling.
