Indledning
This manual provides essential information for the safe installation, operation, and maintenance of the Square D by Schneider Electric D323N General Duty Safety Switch. This device is designed for residential and commercial applications, suitable for controlling lighting, air conditioning, and other appliances. It is rated for 100 Amperes, 240 Volts, and features a 3-pole, 4-wire design with 3 blades and fuse holders, plus 1 neutral. The NEMA Type 1 metallic enclosure is intended for indoor use. This safety switch is UL listed, File E2875, and meets or exceeds NEMA standard KS1. Proper understanding and adherence to these instructions are crucial for safe and effective use.
Vigtige sikkerhedsoplysninger
ADVARSEL: Risk of electric shock, explosion, or arc flash. Only qualified personnel should install, operate, service, and maintain this equipment. Refer to all local and national electrical codes, as well as the National Electrical Code (NEC) and Occupational Safety and Health Act (OSHA) standards.
- Always disconnect power before working on or near the safety switch.
- Brug korrekt nominel voltage sensorenheden for at bekræfte, at strømmen er slukket.
- Do not operate the switch with the enclosure door open unless specifically instructed by qualified personnel.
- Ensure proper grounding and bonding of the equipment.
- Replace fuses with those of the correct type and rating only.
- Wear appropriate Personal Protective Equipment (PPE) when working with electrical equipment.
Produkt overview
The Square D D323N safety switch provides a reliable means of disconnecting power to electrical loads. Its robust construction ensures durability for various indoor applications.
Figur 1: Forside view of the Square D D323N General Duty Safety Switch, showing the gray metallic enclosure and the operating handle in the 'ON' position. A warning label is visible on the front cover.
Nøglefunktioner:
- 4-wire design with 3 blades and fuse holders and 1 neutral.
- Rated for 120/240 Volt AC operation.
- 100 Amperes current rating.
- NEMA Type 1 metallic enclosure for indoor use.
- Suitable for 7.5/15.0 HP 240 Vac single phase (standard/maximum).
Opsætning og installation
Installation of this safety switch must be performed by a qualified electrician in accordance with all applicable national and local electrical codes.
- Planlægning: Determine the appropriate mounting location, ensuring adequate clearance for operation and maintenance. Consider environmental factors for indoor use.
- Montering: Securely mount the safety switch enclosure to a rigid surface using appropriate fasteners. Ensure the enclosure is level and plumb.
- Ledningsføring:
- Turn off all power at the main service panel before beginning any wiring. Verify power is off using a voltage tester.
- Remove appropriate knockouts for conduit entry.
- Tilslut indgående strømledere til linjeterminalerne og udgående lastledere til lastterminalerne.
- Connect the neutral conductor to the designated neutral bar.
- Sørg for, at alle forbindelser er tætte og sikre.
- Install correctly rated fuses into the fuse holders.
- Jording: Properly ground the enclosure and connect the equipment grounding conductor as required by code.
- Inspektion: Before restoring power, visually inspect all wiring for correct connections, proper insulation, and secure terminations. Ensure no tools or debris are left inside the enclosure.
- Strømgendannelse: Close and secure the enclosure door. Restore power at the main service panel.
Figur 2: Forside view of the safety switch, illustrating the operating handle in the 'OFF' position, indicating a disconnected circuit.

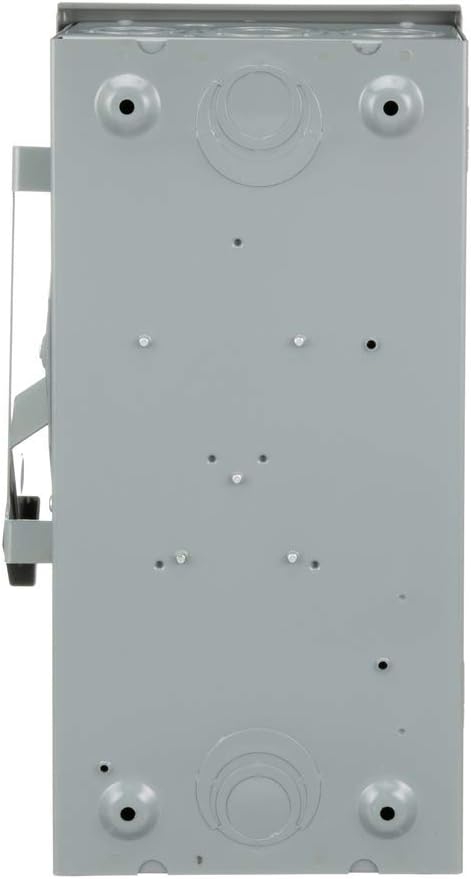

Figur 3: Bagside view of the safety switch enclosure, showing mounting points and conduit knockouts for installation.
Betjeningsvejledning
The Square D D323N safety switch is operated via a robust external handle.
- At tænde: Move the operating handle firmly upwards to the 'ON' position. This connects power to the load circuit.
- At slukke: Move the operating handle firmly downwards to the 'OFF' position. This disconnects power from the load circuit.
- Låst ude/Tagud: For maintenance or service, ensure the handle is in the 'OFF' position. The handle can be locked in the 'OFF' position using a padlock to prevent accidental re-energization.
Figur 4: Højre side view of the safety switch, highlighting the robust operating handle mechanism.
Opretholdelse
Regular maintenance helps ensure the longevity and safe operation of your safety switch. Always disconnect power before performing any maintenance.
- Visuel inspektion (årligt): Check for any signs of physical damage, corrosion, loose connections, or overheating (discoloration). Ensure the enclosure door seals properly.
- Rensning: Keep the exterior of the enclosure clean and free of dust and debris. Use a dry cloth. Do not use abrasive cleaners or solvents.
- Udskiftning af sikring: If a fuse blows, identify and correct the cause of the overload or short circuit. Replace the blown fuse with a new one of the exact same type and rating.
- Driftsmekanisme: Periodically operate the switch handle to ensure smooth mechanical action.
Figur 5: Venstre side view of the safety switch enclosure, showing the hinge mechanism for the door.
Fejlfinding
Hvis sikkerhedsafbryderen ikke fungerer som forventet, skal du overveje følgende almindelige problemer:
- Ingen strøm til at indlæse:
- Check if the switch handle is fully in the 'ON' position.
- Verify that power is present at the line side of the switch using a voltage tester (only by qualified personnel).
- Inspect fuses for continuity. Replace any blown fuses.
- Check for tripped upstream circuit breakers or fuses.
- Switch Handle Will Not Stay ON: This typically indicates an internal fault or a severe overload/short circuit that has caused the fuses to blow. Do not force the handle. Investigate the load circuit for faults.
- Overophedning: If the enclosure or terminals feel excessively hot, immediately disconnect power and investigate for loose connections, overloaded circuits, or incorrect wire sizing.
For issues not resolved by these steps, contact a qualified electrician or Schneider Electric customer support.
Specifikationer
| Specifikation | Værdi |
|---|---|
| Modelnummer | D323N |
| Mærke | Schneider Electric (Square D) |
| Nuværende vurdering | 100 Amps |
| Operation Voltage | 240 Volt AC |
| Kredsløbstype | 3-way (3-Pole) |
| Antal stillinger | 3 |
| Driftstilstand | Elektrisk |
| Indkapslingstype | NEMA Type 1 Metallic (Indoor Use) |
| Horsepower Rating (240 Vac Single Phase) | 7.5 HP (Standard) / 15.0 HP (Maximum) |
| Wattage | 24000 watt |
| Varedimensioner (L x B x H) | 6.38 x 9 x 17.5 tommer |
| Varens vægt | 0.01 ounces (Shipping weight may vary) |
| Kontakttype | Normalt åben |
| Connector Type | Klinge |
| Terminal | Klinge |
| Materiale | Metal |
| International Protection Rating | IP54 |
| UPC | 785901461357 |
Garantioplysninger
Square D warrants equipment manufactured by it and sold through authorized sales channels to be free from defects in materials and workmanship for eighteen (18) months from the date of invoice by Square D or its authorized sales channel. This warranty is subject to specific terms and conditions. For full warranty details, please refer to the official Schneider Electric warranty documentation or contact customer support.
Kundesupport
For technical assistance, product inquiries, or warranty claims, please contact Schneider Electric customer support. Visit the official Schneider Electric webwebsted for kontaktoplysninger og yderligere ressourcer.
Webwebsted: www.se.com/us/da/
