Indledning
This manual provides comprehensive instructions for the assembly, safe operation, and proper maintenance of your Mega Motion Vance Ultimate Power Recliner Chair, model NM7001. Please read this manual thoroughly before using the chair to ensure safe and efficient operation.
Vigtige sikkerhedsoplysninger
WARNING: To reduce the risk of injury, read all instructions before using the chair.
- Always use the lift and recline mechanism with caution. Ensure the area around the chair is clear before operating.
- Do not exceed the maximum weight limit of 500 pounds (227 kg) to ensure stability and safety.
- Hold børn og kæledyr væk fra stolens bevægelige dele.
- Ensure all electrical cords are properly routed and not pinched or damaged.
- Do not allow anyone to sit on the footrest when it is extended.
- Disconnect power before cleaning or servicing the chair.
- This chair is designed for indoor use only.
Advarsel om Proposition 65: Dette produkt kan udsætte dig for kemikalier, herunder træstøv, som staten Californien ved er kræftfremkaldende. For mere information, gå til www.P65Warnings.ca.gov.
Monteringsvejledning
Your Mega Motion Vance Ultimate Power Recliner Chair requires minimal assembly. It is recommended that two people assemble the chair due to the weight of some components.
Udpakning og forberedelse
- Carefully open the shipping carton. Retain all packaging materials until assembly is complete and you are satisfied with the product.
- Remove all components from the carton. Inspect for any damage.
- Place the base of the chair in the desired location, ensuring there is enough space for reclining and lifting functions.

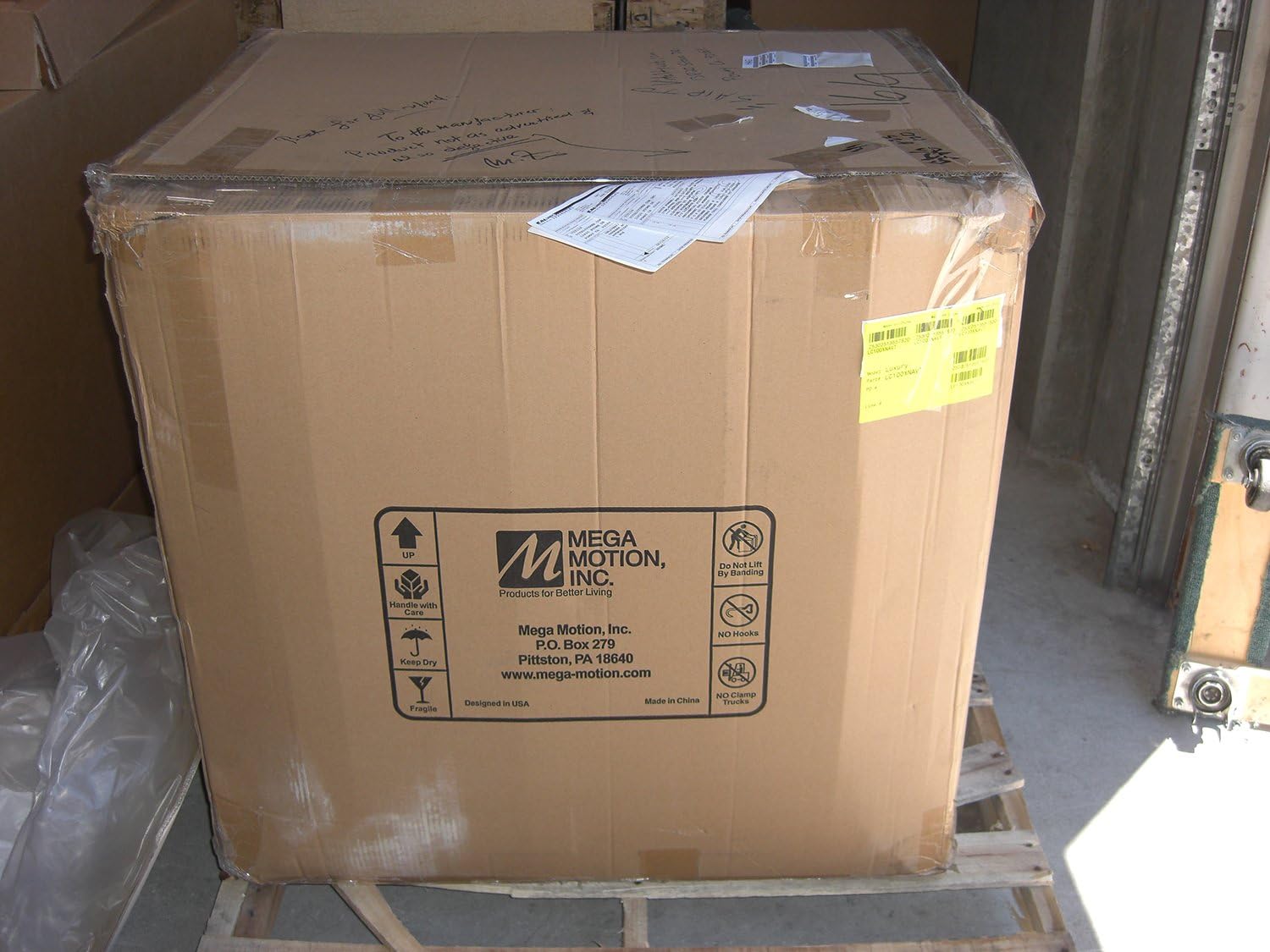

Figure 1: The Mega Motion Vance Power Recliner Chair as received in its shipping carton. Note the 'Handle with Care' and 'Up' indicators.
Attaching the Chair Back
- Align the metal receivers on the chair back with the posts on the chair base.
- Slide the chair back down onto the posts until it is securely seated. You may hear a click.
- Locate and connect any electrical cables between the chair back and the base. Ensure connections are firm.
- Connect the power transformer to the chair's power input and then plug the transformer into a grounded electrical outlet.
Betjeningsvejledning
The Mega Motion Vance Ultimate Power Recliner Chair features a simple two-button handwand for controlling the lift and recline functions.
Handwand Control
The handwand is typically located in a side pocket or attached to the chair arm. It features two buttons:
- Op-knap: Press and hold to raise the chair to a standing position or to bring it to an upright seated position from a reclined state.
- Ned-knap: Press and hold to recline the chair or to lower it from a lifted position to a seated position.
The handwand also includes a USB port for charging small electronic devices.
Chair Positions
This chair offers three primary positions:
- Upright/Seated Position: The standard sitting position.
- Partial Recline Position: A comfortable position for reading or watching television.
- Fuld tilbagelænet position: A fully extended position for resting or sleeping.
Figure 2: Chair in upright seated position.
Figure 3: Chair in lifted position, assisting with standing.
Figure 4: Chair in fully reclined position.
Nødbatteri backup
I tilfælde af en magt outage, the chair is equipped with an integrated emergency battery backup system. This allows for a limited number of operations to return the chair to a safe, seated position. Ensure batteries are installed and checked periodically.
Pleje og vedligeholdelse
Regular care will extend the life and appearance of your recliner chair.
- Rengøring af stof: For general cleaning, use a soft cloth and mild soap solution. Test on an inconspicuous area first. Do not saturate the fabric.
- Strømledning: Undersøg jævnligt strømkablet for tegn på skader. Hvis det er beskadiget, skal du stoppe med at bruge det og kontakte kundesupport.
- Bevægelige dele: The chair's mechanisms are designed to be maintenance-free. Do not attempt to lubricate or disassemble moving parts.
- Placering: Avoid placing the chair in direct sunlight or near heat sources, as this can cause fabric fading or damage.
Fejlfinding
If you experience issues with your Mega Motion Vance Ultimate Power Recliner Chair, refer to the following common solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stolen fungerer ikke. | Power cord unplugged, circuit breaker tripped, handwand disconnected. | Ensure power cord is securely plugged into a working outlet. Check circuit breaker. Verify handwand cable is firmly connected to the chair. |
| Chair moves slowly or intermittently. | Low battery in backup system (if applicable), power supply issue. | Check and replace batteries in the emergency backup system. Ensure the chair is connected to a stable power source. |
| Usædvanlige lyde under drift. | Obstruction in mechanism, loose components. | Inspect for any objects obstructing the moving parts. Ensure all assembly connections are secure. If noise persists, contact customer support. |
If these steps do not resolve the issue, please contact Mega Motion customer support for further assistance.
Produktspecifikationer
Figure 5: Key features and dimensional specifications of the Mega Motion Vance Power Recliner Chair.
- Model: NM7001 (also referred to as AS-7001 in some documentation)
- Vægt kapacitet: 500 lbs (227 kg)
- Stillinger: 3-position, all-electric lift and recline
- Konstruktion: Heavy-duty, furniture-grade hardwood/plywood frame
- Stof: Heavy-duty polyester knit fabric (Cafe Finish/Walnut)
- Mekanisme: Counter-balanced recliner mechanism for smooth, quiet operation
- Funktioner: Split back design, chaise seat, integrated emergency battery backup, adjustable steel leg levelers, convenient side pocket with USB port in handwand.
- Produktmål (omtrentlige):
- Samlede mål: 44" D x 39.5" B x 44" H
- Outside Arm Width: 39.5"
- Arm Height from Seat: 6.5"
- Seat Width: 27"
- Seat to Floor: 20"
- Seat Depth: 20.5"
- Top of Back to Seat: 27"
- Top of Back to Floor: 43.5"
- Overall Chair Weight: 143 lbs (64.8 kg)
Garantioplysninger
Mega Motion provides the following warranty for the Vance Ultimate Power Recliner Chair, model NM7001:
- Dele og service: 1 års begrænset garanti.
- Løfteramme: Lifetime limited warranty.
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your purchase or contact Mega Motion customer support.
Kundesupport
For further assistance, technical support, or warranty inquiries regarding your Mega Motion Vance Ultimate Power Recliner Chair, please contact Mega Motion customer service.
Kontaktoplysninger:
- Webwebsted: Visit the official Mega Motion webwebsted for supportressourcer og kontaktoplysninger.
- Telefon: Refer to your product packaging or the Mega Motion webhjemmeside for det seneste kundeservicetelefonnummer.
When contacting support, please have your model number (NM7001) and proof of purchase readily available.
