Brugermanual til stikbar USB 3.0 til HDMI 4K DisplayLink-videografikadapter

Indledning

This user manual provides comprehensive instructions for the Plugable USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter (Model: UGA-4KHDMI). This adapter allows you to connect additional displays to your computer, enhancing your workspace and productivity with support for resolutions up to 3840x2160 (4K UHD).

The adapter leverages DisplayLink Technology to provide extended display capabilities across various operating systems, including Windows, macOS, and ChromeOS. Its compact design ensures portability, making it suitable for both office and mobile use.

Opsætning

Hvad er der i æsken

• Plugable USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter (UGA-4KHDMI)

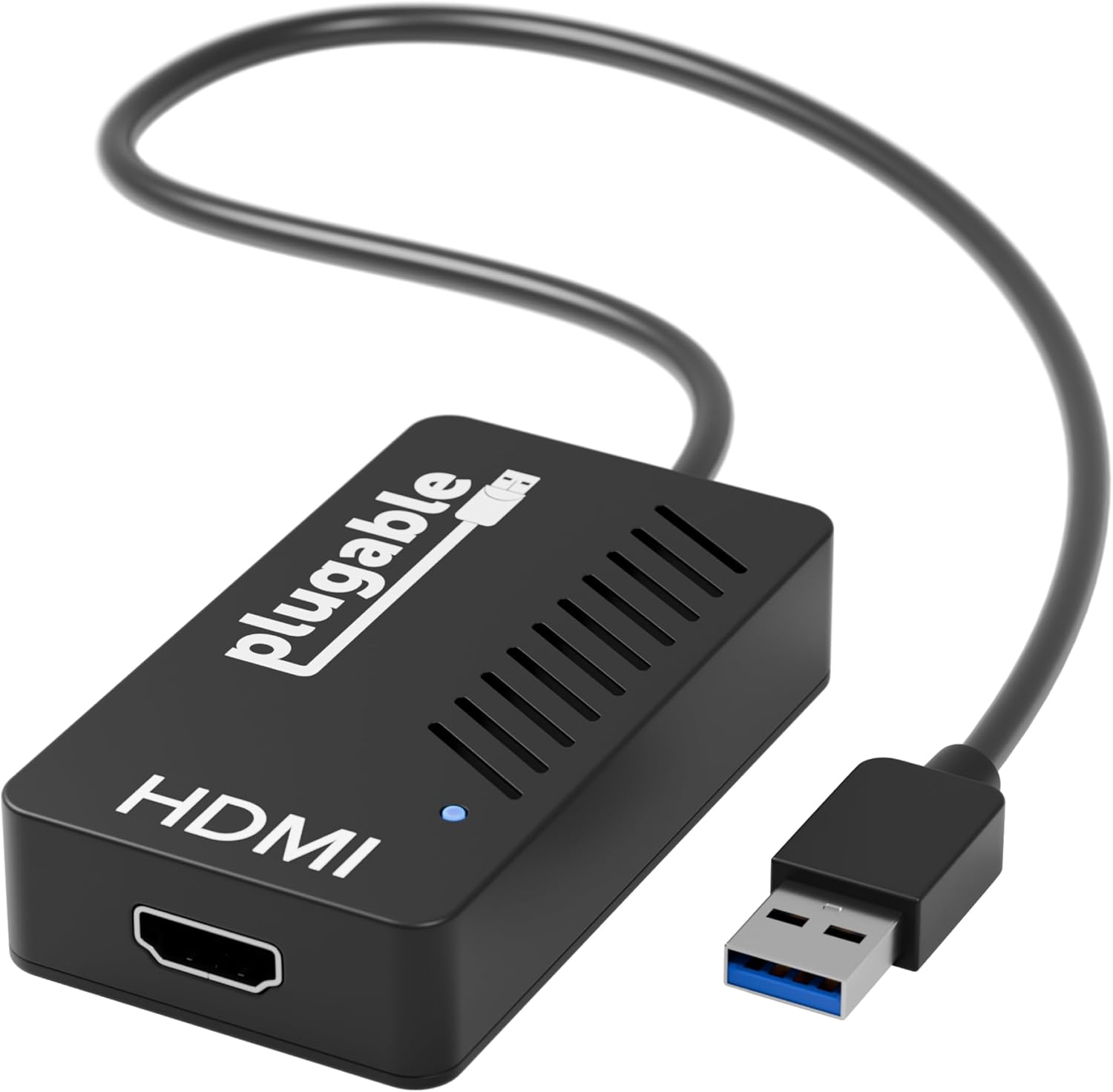

Image: The Plugable USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter, a compact black device with an HDMI port on one end and a USB 3.0 connector on a short cable on the other. A small blue LED indicator is visible on the top surface.

Driver installation

Before connecting the adapter, it is recommended to install the latest DisplayLink drivers for your operating system. Drivers can typically be found on the official DisplayLink website or the Plugable support page. Follow the on-screen instructions during installation.

• Windows: Compatible with Windows 11, 10, 8.1, 7, XP.
• MacOS: Compatible with macOS 10.14 and newer.
• ChromeOS: Compatible with ChromeOS 100 or newer.

Tilslutning af adapteren

1. Connect the USB 3.0 end of the adapter to an available USB 3.0 port on your computer.
2. Connect an HDMI cable (not included) from your display to the HDMI port on the Plugable adapter.
3. Tænd for din skærm.

Image: A diagram illustrating the connections for the USB 3.0 to 4K HDMI Adapter. It shows the adapter with an HDMI output port and a USB 3.0 input connector, indicating compatibility with HDMI displays and USB 3.0 host ports, and explicitly stating it is not compatible with DisplayPort.

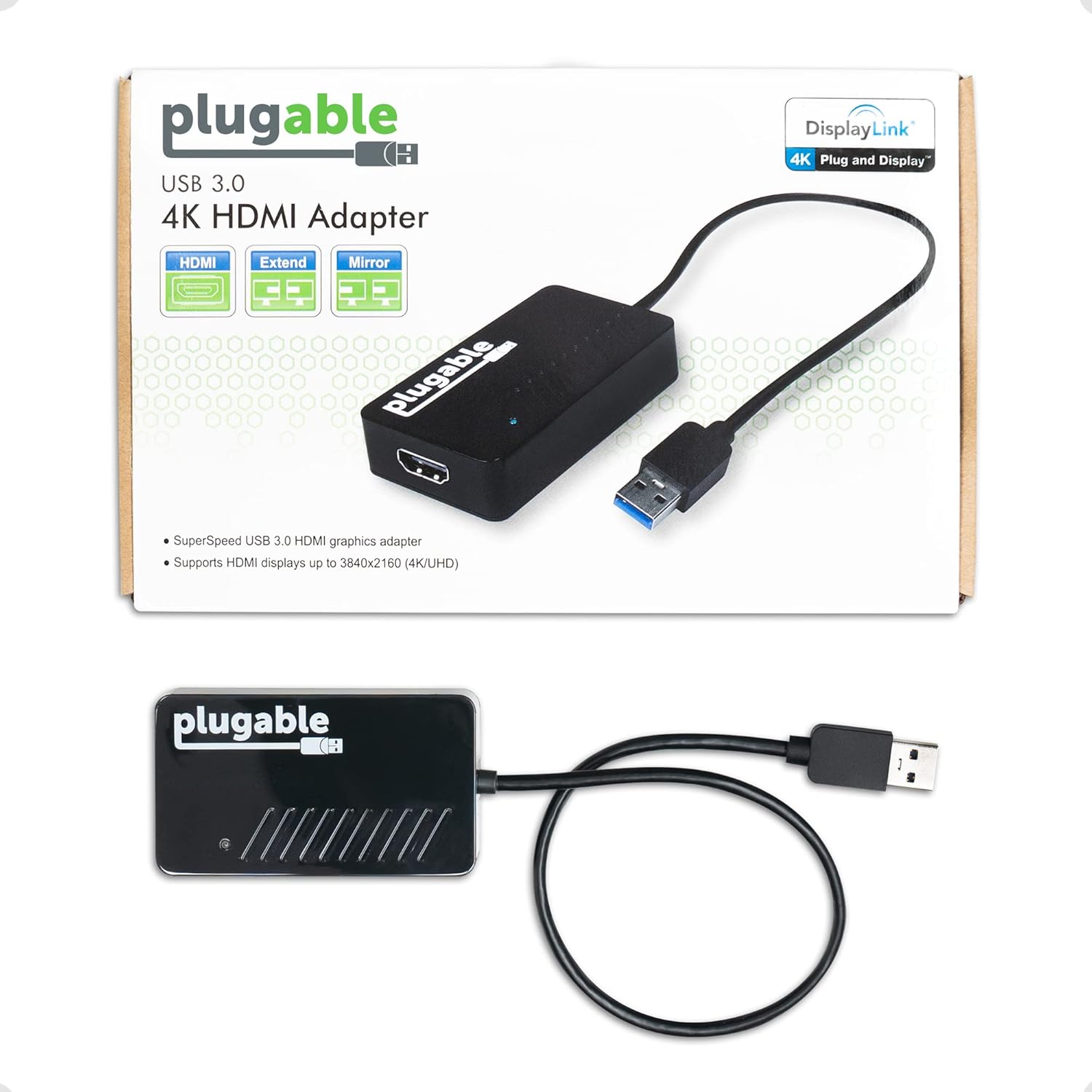

Image: The Plugable USB 3.0 to HDMI 4K Adapter shown both in its retail packaging and as a standalone unit. The packaging highlights "DisplayLink 4K Plug and Display" and "SuperSpeed USB 3.0 HDMI graphics adapter". The standalone unit is black with the "plugable" logo and an HDMI port.

Betjeningsvejledning

Visningstilstande

Once the adapter and drivers are installed, your operating system should detect the new display. You can configure the display mode through your system's display settings:

• Udvidet visning: Extend your desktop across multiple monitors, allowing for increased workspace and multitasking.
• Mirror/Duplicate Display: Duplicate your primary display onto the connected monitor, useful for presentations or sharing content.

The Plugable USB 3.0 to HDMI adapter supports resolutions up to 3840x2160 at 30Hz (4K UHD). On Windows, you can connect up to 6 additional displays, and on macOS, up to 4 additional displays (one 4K display per adapter).

Image: A workstation setup featuring a laptop connected to six external monitors, demonstrating enhanced productivity with multiple displays. The Plugable adapter facilitates this multi-monitor configuration.

Image: A MacBook laptop connected to two external monitors, showcasing the extended display capability. The Plugable adapter enables this dual-monitor setup for MacBook users, including those with M1, M2, M3, and M4 chips.

Produkt overview Video

Opretholdelse

To ensure the longevity and optimal performance of your Plugable USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter, follow these general maintenance guidelines:

• Rensning: Use a soft, dry cloth to clean the exterior of the adapter. Avoid using liquid cleaners or aerosols, as they may damage the device.
• Opbevaring: Opbevar adapteren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug.
• Håndtering: Avoid dropping the adapter or subjecting it to strong impacts. Do not bend or pull the cable excessively.
• Opdateringer: Regularly check for and install the latest DisplayLink drivers to ensure compatibility and performance improvements.

Fejlfinding

If you encounter issues with your Plugable USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter, please refer to the following resources:

• Official Troubleshooting Guide: A detailed troubleshooting guide is available in PDF format. You can access it her.
• Almindelige problemer:
  • Ingen visning: Ensure the adapter is securely connected to both your computer's USB 3.0 port and the display's HDMI port. Verify that the display is powered on and set to the correct input source. Reinstall DisplayLink drivers if necessary.
  • Low Resolution/Performance: Confirm that your computer's USB port is USB 3.0 (often indicated by a blue insert). Ensure the latest DisplayLink drivers are installed. Check your display settings to confirm the desired resolution and refresh rate are selected.
  • Driverproblemer: If the display is not detected or behaves erratically, try uninstalling and reinstalling the DisplayLink drivers. Ensure your operating system is up to date.

For further assistance, please contact Plugable Support as detailed in the Warranty and Support section.

Specifikationer

Garanti og support

Every Plugable product, including the USB 3.0 to HDMI 4K DisplayLink Video Graphics Adapter, is backed by a 2-års dækning against defects and comes with Lifetime Support.

If you have any questions, require technical assistance, or need to inquire about warranty services, please contact our North American-based support team. Contact information can typically be found on the official Plugable webwebsted (plugable.com/support).
