Indledning
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Broan-NuTone AER80K 80 CFM CleanCover Bathroom Exhaust Fan. Please read all instructions carefully before beginning installation to ensure safe and proper operation.

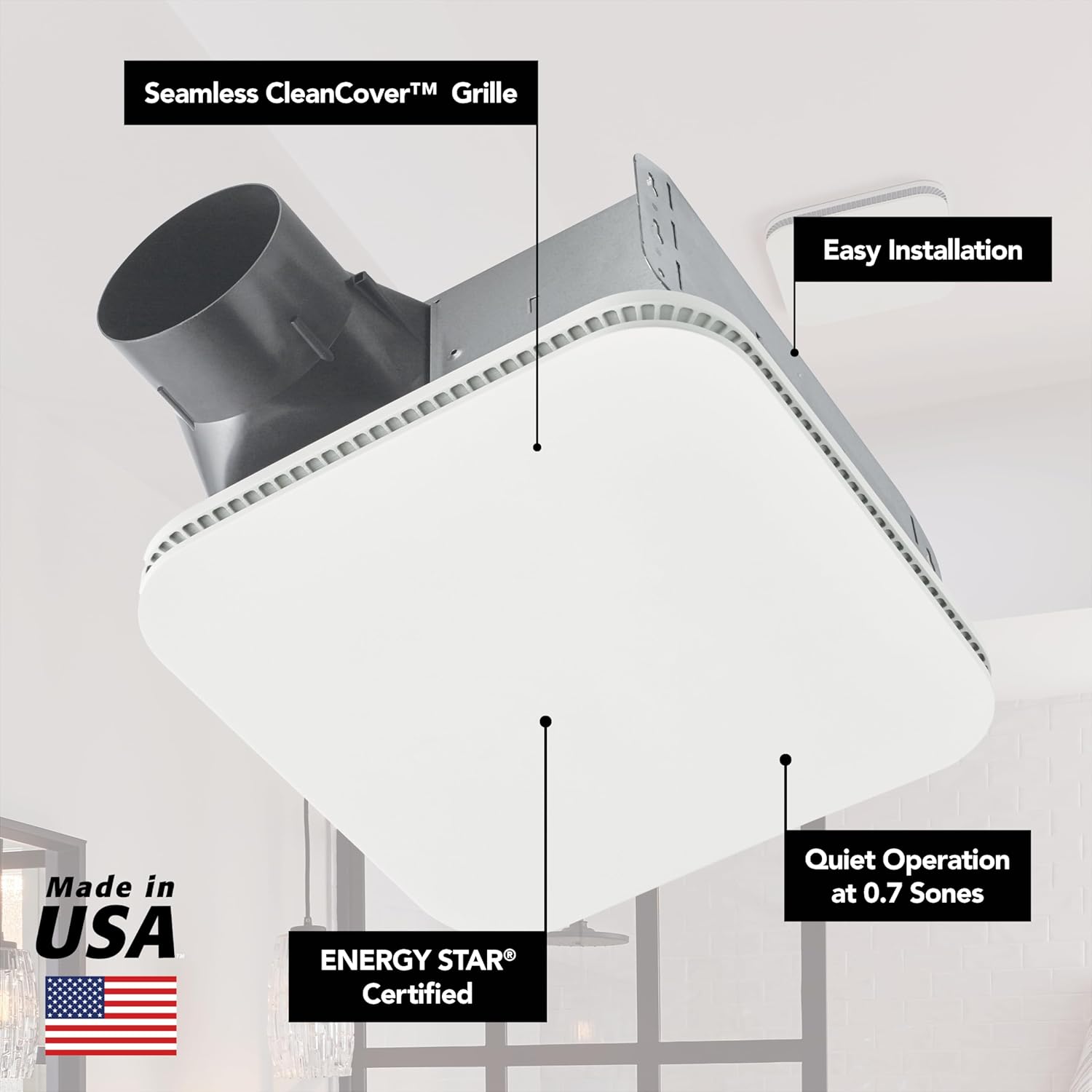

Image: The Broan-NuTone AER80K 80 CFM CleanCover Bathroom Exhaust Fan, featuring a sleek white grille and integrated duct connection.
Sikkerhedsoplysninger
ADVARSEL: For at reducere risikoen for brand, elektrisk stød eller personskade, skal du være opmærksom på følgende:
- Brug kun denne enhed på den måde, som producenten har tiltænkt. Kontakt producenten, hvis du har spørgsmål.
- Før du servicerer eller rengør enheden, skal du slukke for strømmen på servicepanelet og låse serviceafbryderen for at forhindre strømmen i at blive tændt ved et uheld. Når serviceafbrydelsesmidlet ikke kan låses, skal du fastgøre en fremtrædende advarselsanordning, såsom en tag, til servicepanelet.
- Installationsarbejde og elektriske ledninger skal udføres af kvalificeret(e) person(er) i overensstemmelse med alle gældende koder og standarder, inklusive brandklassificerede konstruktionskoder og standarder.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- Når du skærer eller borer i væg eller loft, må du ikke beskadige elektriske ledninger og andre skjulte værktøjer.
- Kanalventilatorer skal altid udluftes til det fri.
- This unit is UL listed for use over bathtubs or showers when connected to a GFCI-protected branch circuit (not included).
- This unit is UL listed for use in insulated ceilings (Type I.C.).
Specifikationer
| Model | AER80K |
| Luftmængde kapacitet | 80 kubikfod pr. minut (CFM) |
| Støjniveau | 0.7 Sones (Ultra-Quiet) |
| Strømkilde | AC (120V) |
| Produktmål (D x B x H) | 9.25 cm x 10 cm x 5.75 cm |
| Ceiling Construction Fit | 2 x 6 cm |
| Kanalforbindelse | 4" Round with Damper |
| Certificeringer | ENERGY STAR Certified, UL Listed (for use over bathtubs/showers with GFCI, and in insulated ceilings Type I.C.), HVI-2100 Certified |
| Installationstype | Room-side installation |
| Inkluderede komponenter | Badeventilator |
| Varens vægt | 9 pund |
Billede: Detaljeret view of the fan housing with key dimensions and certification logos.
Pakkens indhold
- Broan-NuTone AER80K Exhaust Fan Unit
- CleanCover Grille
- SnapFit Flange Kit
- EzDuct Connector
- FoldAway Mounting Ears
- Installationsskabelon
- Instruktionsmanual (dette dokument)
Installation
The Broan-NuTone AER80K is designed for room-side installation, eliminating the need for attic access. This makes it ideal for retrofit, remodeling, and replacement projects.
- Forberedelse: Ensure power is disconnected at the service panel before starting. Use the provided template to accurately mark and cut the ceiling opening for the fan housing.
- Husinstallation: Insert the fan housing into the ceiling opening. The SnapFit Flange Kit and FoldAway mounting ears facilitate secure placement and a self-trimming finish.
- Kanalforbindelse: Connect the 4-inch ductwork to the EzDuct connector on the fan housing. Ensure a tight seal to prevent air leakage.
- Elektriske ledninger: Connect the electrical wiring according to local codes and the wiring diagram provided in the full manual. Ensure all connections are secure. If installing over a bathtub or shower, connect to a GFCI-protected branch circuit.
- Grilltilbehør: Once the housing and wiring are complete, attach the CleanCover grille. The design minimizes visible vent slots for a cleaner appearance.
Image: A person installing the fan housing from the room side, demonstrating the ease of retrofit installation without attic access.
Betjeningsvejledning
The Broan-NuTone AER80K fan operates via a standard wall switch (not included). It is designed for continuous or intermittent operation to manage moisture and odors in your bathroom.
- Tænd/sluk: Activate the fan by flipping the connected wall switch to the 'ON' position. Turn off by flipping the switch to 'OFF'.
- Optimal brug: For effective moisture and odor control, operate the fan during and after showering or bathing for at least 15-20 minutes. This helps to clear humid air and prevent mildew growth.
Image: Illustration depicting powerful ventilation from the fan, highlighting its 80 CFM airflow and ultra-quiet 0.7 Sones operation.
Opretholdelse
Regular cleaning and maintenance ensure optimal performance and longevity of your exhaust fan. Always disconnect power before performing any maintenance.
- Rengøring af gitter: The CleanCover grille is designed for easy cleaning. Gently pull down the grille to detach it from the housing. Wipe the grille with a damp klud og mildt rengøringsmiddel. Undgå slibende rengøringsmidler.
- Rengøring af ventilatorblade: With the grille removed and power disconnected, carefully wipe the fan blades and interior of the housing to remove dust and debris. Do not bend or damage the fan blades.
- Genmontering: Once clean and dry, reattach the grille by aligning it with the housing and pushing it firmly into place. Restore power.
Image: Close-up of the CleanCover Grille, emphasizing its seamless design and quiet operation, which also contributes to easier maintenance.
Fejlfinding
| Problem | Mulig årsag | Løsning |
| Ventilatoren fungerer ikke | No power, loose wiring, faulty switch | Check circuit breaker/fuse. Verify all wiring connections. Test or replace switch. |
| Reduced airflow or excessive noise | Clogged grille/fan blades, obstructed ductwork | Clean grille and fan blades. Inspect ductwork for blockages. |
| Fan runs but moisture persists | Inadequate run time, undersized fan for room, excessive air leakage | Increase fan run time. Ensure proper sealing around fan and ductwork. Consider a higher CFM fan if room size exceeds recommendations. |
Garanti og support
The Broan-NuTone AER80K Bathroom Exhaust Fan is backed by a Tre års begrænset garanti. For detailed warranty information, technical support, or to order replacement parts, please visit the official Broan-NuTone webwebsted eller kontakt deres kundeservice.
Fabrikant: Broan-NuTone
