1. Introduktion
This manual provides instructions for the proper setup, operation, and maintenance of your Amazon Basics Large Portable Bluetooth Speaker (Model BTV3_2). Please read this manual thoroughly before using the product to ensure optimal performance and safety.
2. Sikkerhedsoplysninger
- Udsæt ikke højttaleren for vand eller overdreven fugt.
- Undgå at placere højttaleren i nærheden af varmekilder eller i direkte sollys.
- Forsøg ikke at skille højttaleren ad eller ændre den. Dette vil ugyldiggøre garantien.
- Use only the provided AC power adapter for charging.
- Hold højttaleren væk fra børn.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Amazon Basics Large Portable Bluetooth Speaker
- AC strømadapter
Beskrivelse: This image shows the Amazon Basics Large Portable Bluetooth Speaker securely placed within its brown cardboard packaging, indicating how the product is received.
4. Produktet er slutview
4.1. Front View
Beskrivelse: This image displays the front of the Amazon Basics Large Portable Bluetooth Speaker, featuring a black mesh grille that covers the speaker drivers.
4.2. Betjeningselementer på øverste panel
Beskrivelse: This image shows the top panel of the speaker with four circular buttons and a small LED indicator. From left to right, the buttons are: Volume Down (-), Play/Pause, Volume Up (+), and Bluetooth Pairing/Call Answer. Below the buttons, a small Bluetooth logo and an LED indicator are visible.
- - (Volume Down): Sænker lydstyrken.
- Afspil/pause: Afspiller eller sætter lydafspilning på pause.
- + (Volume Up): Øger lydstyrken.
- Bluetooth/Call: Initiates Bluetooth pairing mode or answers/ends phone calls.
- LED-indikator: Displays power and Bluetooth status.
4.3. Side Panel Ports
Beskrivelse: This image shows the right side panel of the speaker, featuring a power switch, a DC input port for charging, and an AUX input port for wired audio connections.
- TÆND/SLUK -kontakt: Powers the speaker on or off.
- DC IN-port: Connects to the AC power adapter for charging.
- AUX port: Connects to audio devices using a 3.5mm stereo cable (not included).
5. Opsætning
5.1. Opladning af højttaleren
- Connect the provided AC power adapter to the DC IN port on the side of the speaker.
- Sæt strømadapteren i en stikkontakt.
- The LED indicator will illuminate to show charging status. A full charge provides up to 8 hours of playback.

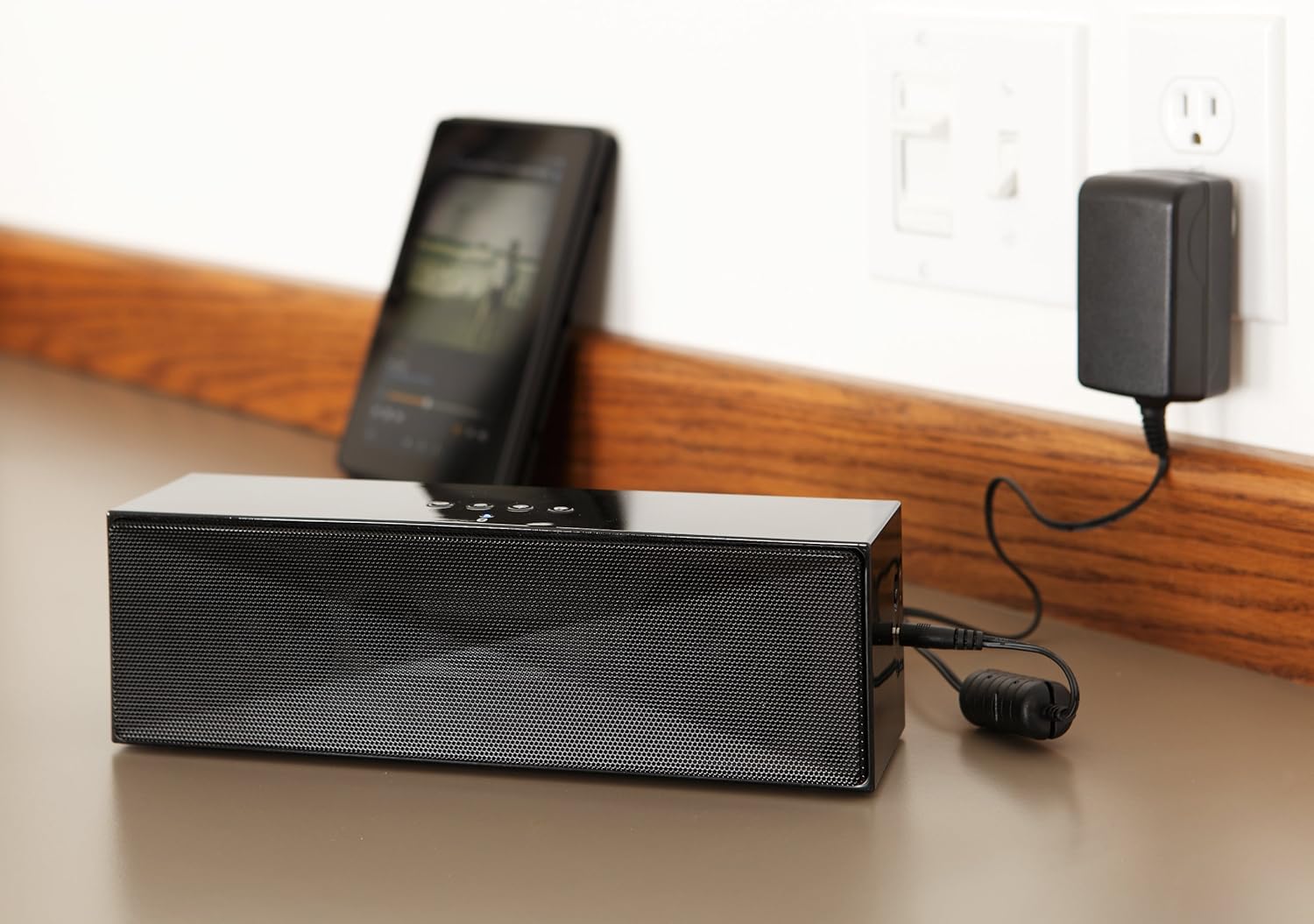

Beskrivelse: This image shows the speaker placed on a surface, with its AC power adapter plugged into a wall outlet, illustrating the charging process.
5.2. Tænd/sluk
Slide the ON/OFF switch located on the side panel to the "ON" position to power on the speaker. Slide it to the "OFF" position to power off.
6. Betjeningsvejledning
6.1. Bluetooth-parring
- Ensure the speaker is powered on. The LED indicator will flash, indicating it is in pairing mode.
- Aktiver Bluetooth på din Bluetooth-aktiverede enhed (smartphone, tablet, bærbar computer), og søg efter tilgængelige enheder.
- Select "Amazon Basics BTV3_2" from the list of devices.
- Once paired, the LED indicator on the speaker will glow solid blue.
- The speaker can connect to devices up to 30 feet (10 meters) away.
Beskrivelse: This image shows the speaker positioned next to a tablet displaying a music playback interface, demonstrating a typical Bluetooth connection scenario.
6.2. Connecting via AUX Cable
- Connect one end of a 3.5mm stereo audio cable (not included) to the AUX port on the speaker.
- Connect the other end of the cable to the audio output jack of your device.
- The speaker will automatically switch to AUX input mode.
6.3. Håndfri opkald
The speaker features a built-in microphone for hands-free calls when connected via Bluetooth.
- Besvare et opkald: Press the Bluetooth/Call button once.
- Afslutning af et opkald: Press the Bluetooth/Call button once during a call.
- Afvisning af et opkald: Press and hold the Bluetooth/Call button.
7. Vedligeholdelse
- Rengør højttaleren med en blød, tør klud. Brug ikke flydende rengøringsmidler eller aerosoler.
- Opbevar højttaleren et køligt og tørt sted, når den ikke er i brug i længere perioder.
- Undgå at tabe højttaleren eller udsætte den for kraftige stød.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tænder ikke. | Batteriet er afladet. | Connect the speaker to the AC power adapter and charge it. |
| Kan ikke parres via Bluetooth. | Speaker is not in pairing mode; device Bluetooth is off; device is out of range. | Ensure speaker LED is flashing; enable Bluetooth on your device; move device closer to the speaker (within 30 feet/10 meters). |
| Ingen lyd eller lav lydstyrke. | Volume on speaker or connected device is too low; incorrect input source. | Increase volume on both the speaker and your connected device. Ensure correct connection (Bluetooth or AUX). |
| Speaker turns off automatically when using AUX. | Automatic power-off feature activated due to prolonged silence. | This model may have an automatic power-off feature after a period of inactivity or silence, even when connected via AUX. To resume playback, power the speaker off and then on again using the side switch. |
| Lydforvrængning. | Volume too high; weak battery; interference. | Reduce volume; charge the speaker; move away from other electronic devices. |
9. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | BTV3_2 |
| Dimensioner (L x B x H) | 10.2 x 2.9 x 3.1 tommer (25.9 x 7.4 x 7.9 cm) |
| Vægt | 1.61 pund (0.73 kg) |
| Højttaler output | 2 x 5W (10W i alt) |
| Forbindelse | Bluetooth, 3.5 mm AUX |
| Bluetooth rækkevidde | Op til 30 fod (10 meter) |
| Batterilevetid | Op til 8 timer |
| Batterikapacitet | 8000 mAh |
| Indbygget mikrofon | Ja |
| Strømkilde | Battery Powered, AC Adapter |
| Materiale | Plast |
Beskrivelse: This image provides a visual representation of the speaker's dimensions, showing its length (10.2"), width (2.9"), and height (3.1").
10. Garanti og support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Amazon Basics webwebsted. Gem din købsbevis til garantikrav.
Online support: Amazon Basics Store
