1. Introduktion
The Timex T231W2 is an AM/FM dual alarm clock radio designed for convenience and reliability. It features a large 1.2-inch green LED display for clear visibility, dual alarms that can be set independently, and a programmable sleep timer. An auxiliary input allows connection of external audio devices. A battery backup system maintains time and alarm settings during power interruptions.
2. Nøglefunktioner
- Wake to AM/FM radio or buzzer
- 20 Station preset memory (10 AM, 10 FM)
- Large, easy-to-read 1.2-inch green LED display
- Line-in jack to connect auxiliary audio sources
- 2-inch dynamic speaker for clear sound
- Programmable 90-minute Sleep Timer
- Battery backup for time and alarm settings
3. Pakkens indhold
- Timex T231W2 AM/FM Dual Alarm Clock Radio (White)
4. Kontroller og indikatorer

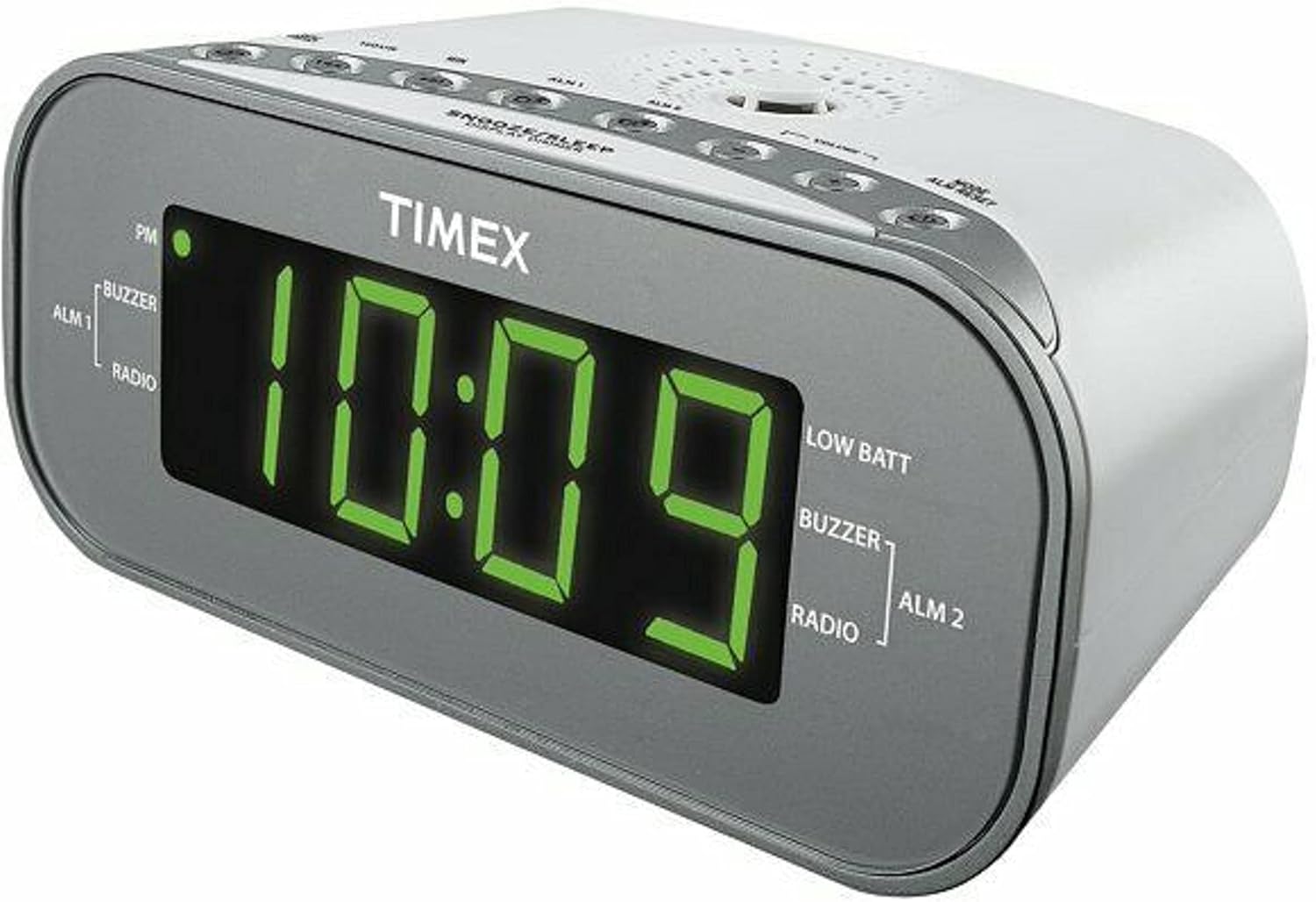

Figur 1: Forside View of the Timex T231W2. This image displays the clock radio from a slight angle, highlighting the large green LED display showing the time '10:09'. Indicators for PM, ALM1 (Buzzer/Radio), ALM2 (Buzzer/Radio), and LOW BATT are visible on the display. The top panel shows several control buttons.
Figur 2: Øverst View of the Timex T231W2 Controls. Dette billede giver en klar view of the control buttons located on the top panel of the clock radio. Buttons include HOUR, MIN, ALM1, ALM2, VOLUME, MODE, ALM RESET, SNOOZE/SLEEP/DISPLAY DIMMER, PRESET, and TUNING controls.
4.1. Displayindikatorer
- Tidsvisning: Large green LED digits show current time.
- PM-indikator: Lights up when the time is in the PM hours.
- ALM 1 / ALM 2: Indicates which alarm is active.
- BUZZER / RADIO: Indicates if the active alarm is set to buzzer or radio.
- LAVT BATT: Lights up when backup batteries are low and need replacement.
4.2. Control Buttons (Top Panel)
- HOUR / MIN: Used to set time and alarm hours/minutes.
- ALM 1 / ALM 2: Bruges til at indstille og aktivere Alarm 1 og Alarm 2.
- LYDSTYRKE +/-: Adjusts the radio volume.
- MODE / ALM RESET: Switches between functions (e.g., radio, AUX) and resets active alarms.
- SNOOZE / SLEEP / DISPLAY DIMMER: Aktiverer snooze, indstiller sleeptimer eller justerer skærmens lysstyrke.
- PRESET / TUNING: Used for saving and recalling radio presets, and manually tuning radio frequencies.
5. Opsætning
5.1. Strømtilslutning
- Sæt netledningen i en almindelig stikkontakt.
- The display will flash, indicating the unit is powered on but the time is not yet set.
5.2. Installation af batteribackup
The unit requires 2 AAA batteries (not included) for backup power. These batteries maintain time and alarm settings during a power outage.
- Åbn batterirummets dæksel i bunden af enheden.
- Isæt 2 nye AAA-batterier, og overhold den korrekte polaritet (+ og -) som angivet inde i batterirummet.
- Luk batterirummets dæksel forsvarligt.
- If the 'LOW BATT' indicator lights up, replace the batteries.
5.3. Indstilling af det aktuelle klokkeslæt
- Tryk og hold på MODE knappen, indtil tidsvisningen begynder at blinke.
- Tryk på TIME button repeatedly to set the hour. Observe the PM indicator for correct AM/PM setting.
- Tryk på MIN button repeatedly to set the minutes.
- Tryk på MODE knappen igen for at bekræfte og afslutte tidsindstillingstilstanden.
6. Betjeningsvejledning
6.1. Radiobetjening (AM/FM)
- Tryk på MODE button repeatedly until 'FM' or 'AM' appears on the display.
- Tryk på TUNING buttons (up/down arrows) to manually tune to a desired station. Press and hold to auto-scan for the next available station.
- Juster lydstyrken ved hjælp af LYDSTYRKE +/- knapper.
6.1.1. Setting and Recalling Radio Presets
The unit can store up to 20 radio stations (10 AM, 10 FM).
- Stil ind på den ønskede radiostation.
- Tryk og hold på FORUDINDSTILLING button until the preset number flashes on the display.
- Brug TUNING buttons to select the desired preset number (P01-P10 for AM/FM).
- Tryk på FORUDINDSTILLING knappen igen for at gemme stationen.
- For at genkalde en forudindstilling skal du trykke på FORUDINDSTILLING knappen gentagne gange for at bladre gennem gemte stationer.
6.2. Setting and Using Alarms (Alarm 1 & Alarm 2)
The clock radio features two independent alarms.
- Tryk og hold på ALM 1 or ALM 2 knappen, indtil alarmtidspunktet blinker.
- Tryk på TIME og MIN knapperne for at indstille det ønskede alarmtidspunkt.
- Tryk på ALM 1 or ALM 2 button again to select the wake source: SUMMER or RADIODen tilsvarende indikator lyser.
- Tryk på ALM 1 or ALM 2 button a third time to confirm and activate the alarm. The alarm indicator (ALM 1 or ALM 2) will remain lit.
- For at slukke en lydalarm skal du trykke på ALM-NULSTILSTILLING knappen. Alarmen nulstilles til den næste dag.
- To deactivate an alarm completely, press the corresponding ALM 1 or ALM 2 button until its indicator light turns off.
6.3. Snooze-funktion
Når en alarm lyder, skal du trykke på SNOOZE/SLEEP/DISPLAY DIMMER knappen for midlertidigt at afbryde alarmen i cirka 9 minutter. Alarmen lyder igen efter snooze-perioden.
6.4. Sleep timer
The sleep timer allows you to fall asleep to the radio, which will automatically turn off after a set period (up to 90 minutes).
- Mens radioen spiller, skal du trykke på SNOOZE/SLEEP/DISPLAY DIMMER knappen gentagne gange for at gennemgå sleep-timerens muligheder (f.eks. 90, 60, 30, 15 minutter, SLUK).
- Radioen vil spille i den valgte varighed og derefter slukke automatisk.
6.5. Skærmdæmper
To adjust the brightness of the display, press and hold the SNOOZE/SLEEP/DISPLAY DIMMER button. The display brightness will cycle through different levels. Release the button when the desired brightness is reached.
6.6. Using the Line-in Jack (AUX)
Connect an external audio device (e.g., smartphone, MP3 player) to the unit using a 3.5mm audio cable (not included).
- Plug one end of the 3.5mm audio cable into the Line-in jack on the back of the clock radio.
- Sæt den anden ende i hovedtelefonstikket eller lydudgangen på din eksterne enhed.
- Tryk på MODE knappen gentagne gange, indtil 'AUX' vises på displayet.
- Start afspilning på din eksterne enhed.
- Juster lydstyrken ved hjælp af LYDSTYRKE +/- buttons on the clock radio and/or your external device.
7. Vedligeholdelse
7.1. Rensning
- Træk stikket ud af stikkontakten før rengøring.
- Brug en blød, tør klud til at tørre de udvendige overflader af.
- Do not use liquid cleaners, abrasive cleaners, or sprays, as these may damage the finish.
7.2. Almen pleje
- Undgå at placere enheden i direkte sollys, i nærheden af varmekilder eller i områder med høj luftfugtighed eller støv.
- Bloker ikke ventilationsåbninger.
- Hvis enheden ikke skal bruges i en længere periode, skal backupbatterierne fjernes for at forhindre lækage.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Netledningen er ikke sat ordentligt i. | Ensure the AC power cord is firmly connected to both the unit and a working wall outlet. |
| Skærmen er svag eller slukket. | Display dimmer setting is too low. | Tryk og hold på SNOOZE/SLEEP/DISPLAY DIMMER knappen for at justere lysstyrken. |
| Alarmen lyder ikke. | Alarmen er ikke aktiveret eller indstillet forkert. | Ensure the ALM 1/ALM 2 indicator is lit and the alarm time/source is correctly set. |
| Dårlig radiomodtagelse. | Antenna not extended or unit's position. | Extend the FM wire antenna fully. For AM, rotate the unit for best reception. Avoid placing near electronic devices that may cause interference. |
| Ingen lyd fra AUX-indgangen. | Incorrect mode or volume settings. | Ensure the unit is in AUX mode. Check volume levels on both the clock radio and the external device. Verify cable connection. |
| 'LOW BATT' indicator is on. | Backup batteries are low. | Replace the 2 AAA backup batteries. |
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Timex |
| Modelnummer | T231WY2 |
| Farve | Hvid |
| Display Type | LED (grøn) |
| Særlige funktioner | Alarm, Auto Dimmable, Programmable Sleep Timer, Radio |
| Produktdimensioner | 6.9 cm B x 2.96 cm H |
| Strømkilde | AC Power, Battery Powered (Backup) |
| Backup batterier | 2 AAA-batterier påkrævet (medfølger ikke) |
| Varens vægt | 1.4 pund |
| Forbindelse | Line-in Jack (AUX) |
| Radio bands | AM/FM |
| Forudindstillinger | 20 (10 AM, 10 FM) |
10. Garanti og support
For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
11. Sikkerhedsoplysninger
ADVARSEL: Dette produkt kan udsætte dig for kemikalier, herunder bly, som er kendt af staten Californien for at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information gå til www.P65Warnings.ca.gov.
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.
