1. Introduktion
This manual provides essential information for the proper use, installation, and maintenance of the Graco 207-308 Repair Kit. This kit is specifically designed to restore functionality to Graco 206-263 Swivel, 206-511 Swivel, and 208-008 Hydra-Clean Valves. Please read these instructions thoroughly before attempting any repair or installation.
2. Produktet er slutview
The Graco 207-308 Repair Kit contains the necessary components to service and repair specific Graco swivel and Hydra-Clean valves. Regular maintenance and timely replacement of worn parts using this kit ensure optimal performance and extend the lifespan of your equipment.
Figure 1: The Graco 207-308 Repair Kit displayed in its original retail packaging. The packaging clearly indicates the product name, model number, and compatible Graco valve models.

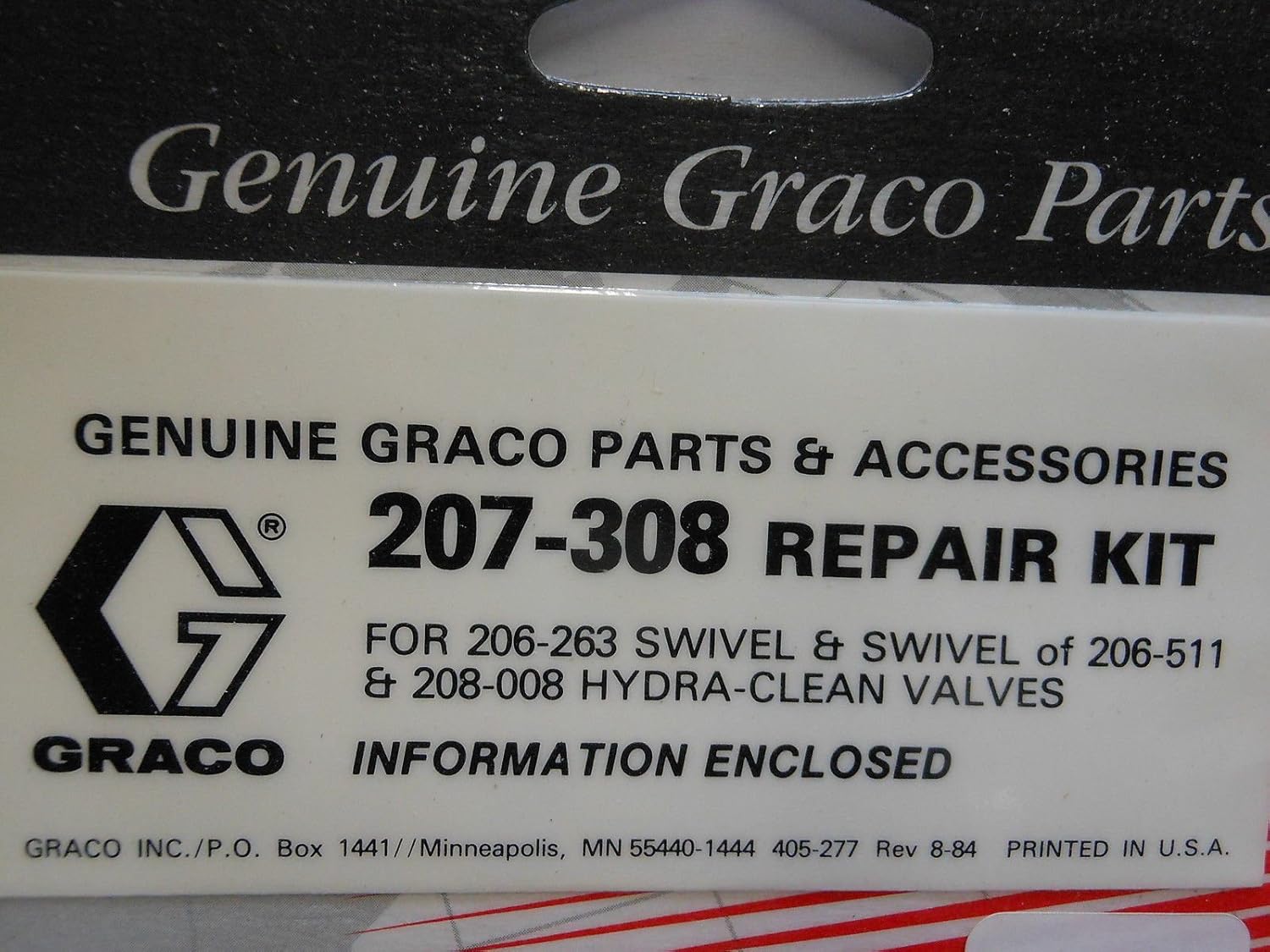

Figur 2: Et nærbillede view of the Graco 207-308 Repair Kit packaging, highlighting the "Genuine Graco Parts & Accessories" label and the specific valve models the kit is designed for: 206-263 Swivel, 206-511 Swivel, and 208-008 Hydra-Clean Valves.
3. Components of the Kit
The 207-308 Repair Kit typically includes various seals, O-rings, and other small parts essential for rebuilding the specified Graco valves. Always verify the contents against the parts list provided with the kit (if applicable) before beginning any repair.
Figur 3: En detaljeret view of the individual components contained within the clear plastic case of the Graco 207-308 Repair Kit. These typically include various seals and small parts necessary for valve repair.
4. Installation (Opsætning)
Before beginning any repair, ensure the equipment is depressurized and disconnected from any power source. Refer to the original equipment manual for specific disassembly and reassembly instructions for the 206-263 Swivel, 206-511 Swivel, or 208-008 Hydra-Clean Valve.
- Sikkerhed først: Brug altid passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
- Demontering: Carefully disassemble the valve or swivel unit according to the original manufacturer's instructions. Note the orientation and position of all existing components.
- Fjernelse af komponenter: Remove all old, worn, or damaged seals, O-rings, and other parts that are to be replaced by the repair kit.
- Rensning: Thoroughly clean all valve components, removing any debris, old lubricant, or paint residue. Inspect for any damage beyond the replaceable parts.
- New Component Installation: Install the new components from the Graco 207-308 Repair Kit. Ensure each part is correctly seated and oriented. Apply a compatible lubricant to O-rings and seals as recommended by Graco to aid in assembly and prevent damage.
- Genmontering: Reassemble the valve or swivel unit, ensuring all fasteners are tightened to the specified torque (if applicable).
- Test: After reassembly, perform a functional test of the repaired unit to ensure proper operation and absence of leaks before returning it to full service.
5. Operating (Function of Repaired Component)
Once the Graco 207-308 Repair Kit components have been correctly installed, the serviced swivel or Hydra-Clean valve should operate as intended by the original manufacturer. This includes:
- Leak-Free Operation: The new seals and O-rings should prevent fluid leakage, maintaining system pressure and cleanliness.
- Smooth Swivel Action: For swivel units, the repair kit restores smooth, unrestricted rotation, preventing hose kinking and improving maneuverability.
- Consistent Valve Performance: For Hydra-Clean valves, the kit ensures reliable opening and closing, contributing to efficient cleaning operations.
Monitor the repaired component during initial use to confirm proper function and absence of any issues.
6. Vedligeholdelse
To maximize the lifespan of the components installed from the Graco 207-308 Repair Kit and the overall valve/swivel unit, adhere to the following maintenance guidelines:
- Regelmæssig inspektion: Periodically inspect the swivel or valve for any signs of wear, leakage, or reduced performance.
- Rensning: Keep the exterior of the component clean from paint, debris, and other contaminants.
- Korrekt opbevaring: When not in use, store equipment in a clean, dry environment to prevent degradation of seals and other parts.
- Follow Original Equipment Manual: Always refer to the maintenance schedule and procedures outlined in the original Graco equipment manual for comprehensive care.
7. Fejlfinding
If you encounter issues after installing the Graco 207-308 Repair Kit, consider the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Leakage from valve/swivel |
|
|
| Stiff or restricted swivel movement |
|
|
| Valve not opening/closing properly |
|
|
If problems persist, contact Graco customer support or a qualified service technician.
8. Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | 207-308 |
| Compatible Graco Valves | 206-263 Swivel, 206-511 Swivel, 208-008 Hydra-Clean Valves |
| Fabrikant | Graco |
| Varenummer | 207308 |
| Varens vægt | 0.01 ounce |
| Pakkedimensioner | 6 x 4 x 0.25 tommer |
| Materiale | Repair Kit components (various seals, O-rings) |
| Vare Pakke Antal | 1 |
| Nationalt lagernummer | 4940-01-036-5891 |
9. Garanti og support
Garantioplysninger: Specific warranty details for the Graco 207-308 Repair Kit are typically provided with the original product purchase or can be found on the official Graco website. Graco warrants its products against defects in material and workmanship under normal use and service.
Kundesupport: For technical assistance, parts inquiries, or warranty claims, please contact Graco customer service directly. Refer to the official Graco webwebstedet for de seneste kontaktoplysninger og supportressourcer.
You can often find additional resources and contact details by visiting the Graco-butik på Amazon or the official Graco corporate webwebsted.
