1. Vigtige sikkerhedsoplysninger
Læs og forstå altid alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Manglende overholdelse af alle nedenstående instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.
- Sikkerhed på arbejdsområdet: Hold arbejdsområdet rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af brandfarlige væsker, gasser eller støv.
- Elektrisk sikkerhed: Elværktøjsstik skal passe til stikkontakten. Modificer aldrig stikket på nogen måde. Brug ikke adapterstik med jordforbundne elværktøjer. Undgå kropskontakt med jordforbundne overflader.
- Personlig sikkerhed: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
- Brug og vedligeholdelse af elværktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din anvendelse. Tag stikket ud af strømkilden, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
- Service: Få dit elværktøj efterset af en kvalificeret reparatør, der kun bruger identiske reservedele. Dette vil sikre, at elværktøjets sikkerhed opretholdes.
2. Pakkens indhold
The Rockwell RK5131K Sonicrafter F30 Kit includes the following items:
- Rockwell RK5131K 3.5A Sonicrafter F30 Oscillating Multi-Tool
- Bæretaske
- Assorted Cutting Blades (e.g., wood, metal, universal)
- Skrabeblad
- Slibepude
- Assorted Sanding Sheets (various grits)
Image 2.1: The Rockwell RK5131K Sonicrafter F30 kit, showing the multi-tool, carrying case, and various accessories including blades and sanding pads.
3. Produktfunktioner
The Rockwell RK5131K Sonicrafter F30 is designed for versatility and performance. Key features include:
- 3.5 Amp Motor: Provides significant power for various applications.
- 4 Degrees of Oscillation: Enables fast cutting and efficient material removal.
- Hyperlock Tool-Less Blade Change: Allows for quick and secure accessory changes with 1 ton of clamping force to prevent blade slippage.
- Universal Fit System: Compatible with accessories from multiple manufacturers.
- Konstant hastighedskontrol: Maintains cutting speed under load for consistent performance.
- Vibrafree Counterweight: Reduces vibration for smoother operation and user comfort.
- Variabel hurtigopkald: Offers precise control over the oscillation speed for different materials and tasks.

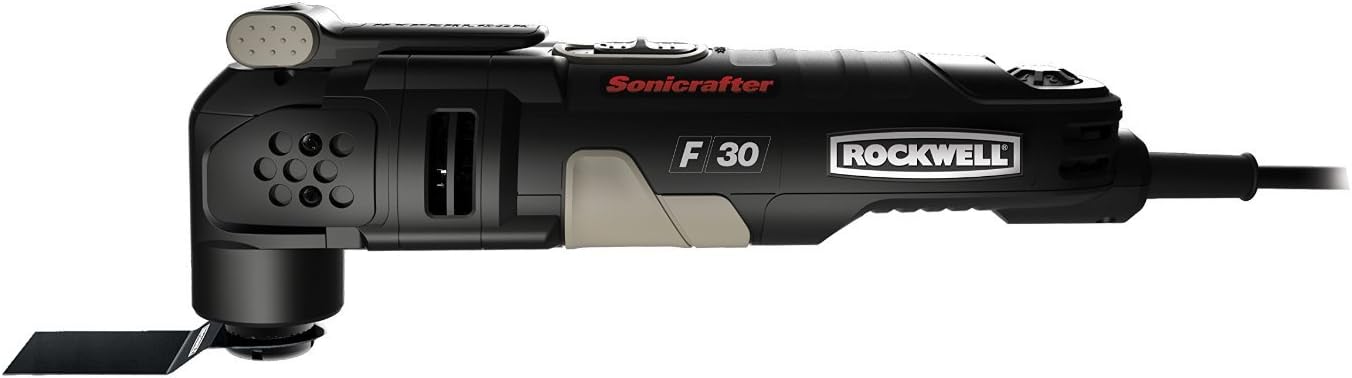

Billede 3.1: En detaljeret side view of the Rockwell Sonicrafter F30, showcasing its design and the 'Sonicrafter F30 Rockwell' branding.
4. Setup and Accessory Installation
4.1 Attaching Accessories (Hyperlock System)
- Ensure the tool is unplugged from the power source before attaching or removing accessories.
- Locate the Hyperlock lever on the top of the tool head.
- Push the Hyperlock lever down firmly to release the accessory clamping mekanisme.
- Align the desired accessory (blade, sanding pad) with the universal fit system interface on the tool head. The accessory should fit securely onto the spindle.
- Once the accessory is in place, lift the Hyperlock lever back up until it clicks into its locked position. Ensure the accessory is firmly secured and does not wobble.
The Universal Fit System allows for compatibility with a wide range of oscillating tool accessories from various brands.
5. Betjeningsvejledning
5.1 Tænd/sluk
- Sæt værktøjet i en passende stikkontakt.
- To turn the tool ON, slide the power switch to the 'I' (ON) position.
- To turn the tool OFF, slide the power switch to the 'O' (OFF) position.
5.2 Variabel hastighedskontrol
The variable speed dial is located on the tool body. Rotate the dial to adjust the oscillation speed. Lower settings are suitable for delicate work or softer materials, while higher settings are for faster material removal and harder materials. Always start with a lower speed and increase as needed.
5.3 Generelle driftsretningslinjer
- Lad værktøjet nå fuld hastighed, før det berører emnet.
- Apply light, consistent pressure. Do not force the tool, as this can lead to overheating and reduced performance.
- Keep a firm grip on the tool with both hands during operation.
- Periodically check accessories for wear and replace them as necessary.
5.4 Specifikke anvendelser
Image 5.1: The multi-tool being used to make a precise cut on wooden trim, demonstrating its utility for detailed woodworking tasks.
Image 5.2: The multi-tool cutting a ceramic tile, illustrating its capability for masonry and tiling projects.
Image 5.3: The multi-tool equipped with a grout removal blade, effectively cleaning grout lines between floor tiles.

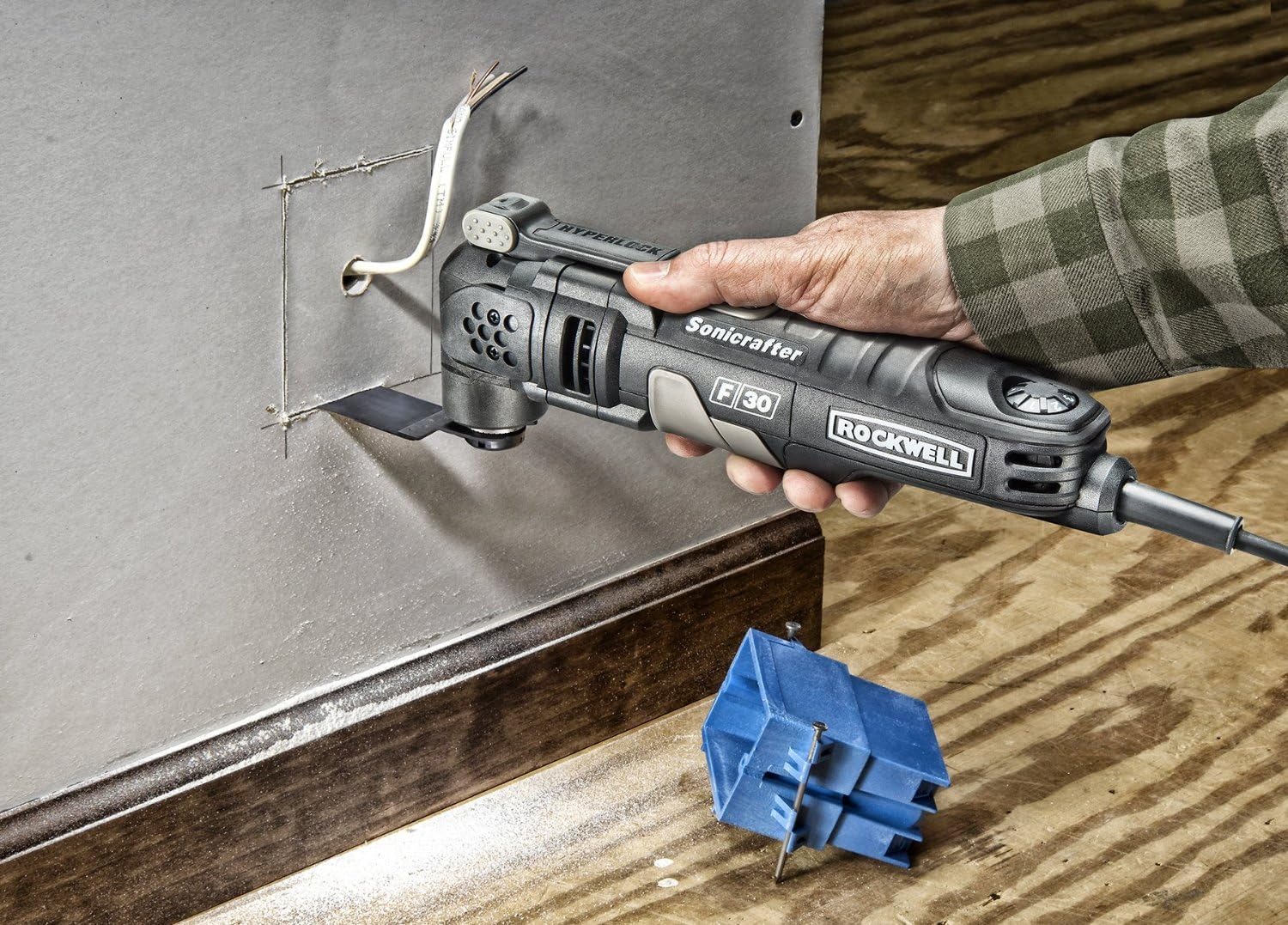

Image 5.4: The multi-tool making a precise cut in drywall to install an electrical box, showcasing its use in renovation tasks.
Image 5.5: The multi-tool cutting a PVC pipe, demonstrating its versatility for plumbing or general construction.
Image 5.6: The multi-tool with a scraping blade, effectively removing old adhesive or material from a surface.
Image 5.7: The multi-tool equipped with a sanding pad, smoothing a wooden chair leg, highlighting its use for finishing tasks.
6. Vedligeholdelse
6.1 Rengøring
- Tag altid stikket ud af stikkontakten før rengøring.
- Use a soft brush or compressed air to clean dust and debris from the ventilation openings.
- Tør værktøjshuset af med snavsamp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
- Ensure the accessory interface is free of debris to allow for proper accessory attachment.
6.2 Opbevaring
Store the tool and its accessories in the provided carrying case in a dry, secure location, out of reach of children.
7. Fejlfinding
- Værktøjet starter ikke:
- Check if the tool is properly plugged into a working power outlet.
- Sørg for, at tænd/sluk-knappen er i 'ON'-positionen.
- Undersøg netledningen for skader.
- Accessory Slippage:
- Ensure the Hyperlock lever is fully engaged and locked.
- Check if the accessory is correctly seated on the universal fit system interface.
- Clean any debris from the accessory interface and the accessory itself.
- Overdreven vibration eller støj:
- Verify the accessory is securely attached and not damaged.
- Ensure the workpiece is properly secured.
- Hvis problemet fortsætter, skal du afbryde brugen og kontakte kundesupport.
- Overophedning af værktøj:
- Undgå at påføre for stort tryk under drift.
- Sørg for, at ventilationsåbningerne er fri for forhindringer.
- Allow the tool to cool down between prolonged uses.
8. Specifikationer
| Specifikation | Værdi |
|---|---|
| Modelnummer | RK5131K |
| Motor Ampslette | 3.5 Amps |
| Voltage | 120 volt |
| Svingningsvinkel | 4 grader |
| Varens vægt | 3.31 pund |
| Produktdimensioner | 2.5 x 4 x 11.25 tommer |
| Fabrikant | Positec USA |
9. Garanti og support
For warranty information, technical support, or to order replacement parts, please refer to the warranty card included with your product or visit the official Rockwell Tools webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
