1. Introduktion
This manual provides essential information for the safe and effective use of your Domyos VS 730 Elliptical Trainer. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.
2. Sikkerhedsoplysninger
To ensure your safety and prolong the life of your equipment, observe the following precautions:
- Kontakt en læge, før du starter et træningsprogram.
- Hold børn og kæledyr væk fra udstyret under brug.
- Place the elliptical trainer on a flat, stable surface. Ensure adequate space around the machine.
- Brug passende træningstøj og sportssko.
- Undersøg udstyret for løse eller slidte dele før hver brug. Må ikke anvendes, hvis det er beskadiget.
- Do not exceed the maximum user weight limit (refer to specifications).
- Stop med at træne med det samme, hvis du føler dig svimmel, føler dig svag eller oplever smerter.
3. Pakkens indhold
Carefully unpack all components and verify that all parts are present. If any parts are missing or damaged, contact Domyos customer support.
- Hovedramme
- Styr
- Pedalarme og pedaler
- Stabilisatorer
- Console and Sensor Cables
- Hardware-sæt (bolte, skiver, møtrikker, værktøj)
- Brugermanual
4. Samling og opsætning
Follow these steps to assemble your Domyos VS 730 Elliptical Trainer. It is recommended to have two people for assembly.
4.1. Base Frame Assembly
- Attach the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are securely tightened.
- Place the assembled base on a level surface.
4.2. Pedal and Crank Installation
Attach the pedal arms to the crank mechanism. Pay attention to the 'L' (left) and 'R' (right) markings on the pedals and crank arms to ensure correct orientation. Tighten securely.

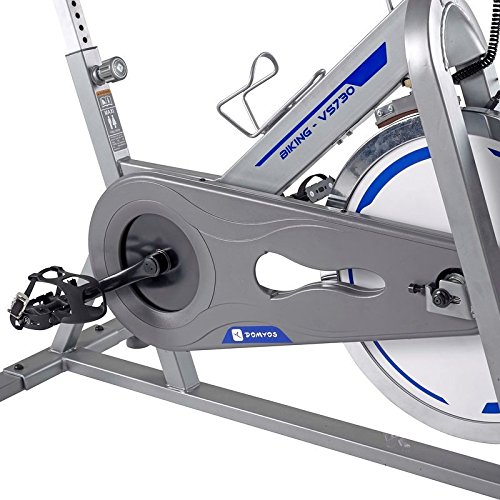

Figur 1: Detail of the pedal and crank assembly on the Domyos VS 730 elliptical trainer.
4.3. Handlebar and Console Installation
- Connect the handlebar posts to the main frame.
- Attach the console to the designated bracket on the handlebars. Connect all sensor cables from the main frame to the console.
Figur 2: The digital console of the Domyos VS 730, showing various workout data.
4.4. Sluteftersyn
After assembly, ensure all bolts and nuts are securely tightened. Check that all moving parts operate smoothly without obstruction.
Figur 3: The Domyos VS 730 Elliptical Trainer fully assembled.
5. Betjeningsvejledning
5.1. Justering af modstand
The Domyos VS 730 features an adjustable resistance system. Locate the resistance knob, typically found near the handlebars or flywheel. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it.
Figur 4: The flywheel and resistance system of the Domyos VS 730.
5.2. Using the Console
The console displays various workout metrics. Insert batteries (if required) into the console compartment. Press the 'SELECT' button to cycle through different display modes such as Time, Distance, Speed, and Calories. To reset the values, press and hold the 'SELECT' button for a few seconds.
5.3. Start din træning
- Step onto the pedals, one foot at a time, ensuring a balanced position.
- Grasp the handlebars firmly.
- Begin pedaling in a smooth, controlled motion. The console will automatically activate and begin tracking your workout.
5.4. Transporting the Elliptical
The Domyos VS 730 is equipped with transport wheels for easy relocation. To move the machine, lift the rear stabilizer slightly and roll the elliptical using the front transport wheels.

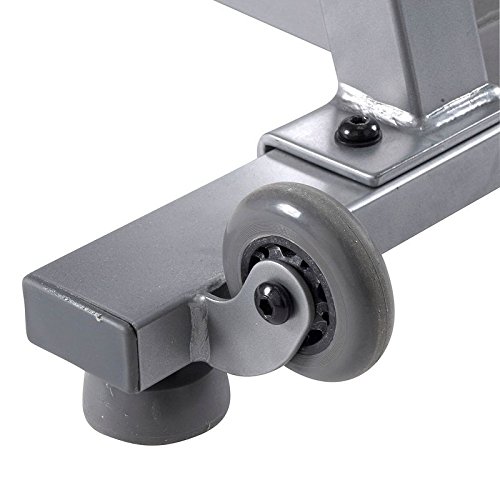

Figur 5: Transport wheel for easy movement of the Domyos VS 730.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your elliptical trainer.
- Rensning: Tør maskinen af med adamp en klud efter hver brug for at fjerne sved og støv. Undgå slibende rengøringsmidler.
- Inspektion: Kontrollér regelmæssigt alle bolte, møtrikker og bevægelige dele for fastspænding og slid. Spænd eventuelle løse fastgørelseselementer.
- Smøring: If any moving parts begin to squeak, apply a small amount of silicone-based lubricant to the joints.
- Opbevaring: Opbevar ellipsetraineren et tørt, køligt sted væk fra direkte sollys og fugt.
7. Fejlfinding
Se dette afsnit for løsninger på almindelige problemer.
- Konsollen viser ikke: Check battery installation and ensure batteries are fresh. Verify all console cables are securely connected.
- Knirkende lyde: Inspect all pivot points and joints. Apply lubricant if necessary. Ensure all bolts are tightened.
- Modstand ændrer sig ikke: Check the resistance knob mechanism for any obstructions or disconnections.
- Ustabil drift: Ensure the elliptical is placed on a level surface. Adjust the leveling feet on the stabilizers if present.
If problems persist, contact Domyos customer support.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Domyos |
| Model | US 730 |
| Sport Type | Fitness |
| Fabrikant | Domyos |
| ASIN | B00LX1ACBW |
| Først tilgængelig | 18. juli 2014 |
9. Garanti og support
Your Domyos VS 730 Elliptical Trainer is covered by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Domyos website. For technical assistance, spare parts, or any other inquiries, please contact Domyos customer support through their official channels.
Domyos Official Webwebsted: www.domyos.com
