Mount-It! MI-863 3-i-1 TV-bord med beslag og glashylder Brugsanvisning

Indledning

Thank you for choosing the Mount-It! MI-863 3-in-1 TV Stand. This product is designed to provide a stable and stylish solution for mounting your flat-screen television and organizing your audio/video components. This manual contains important information regarding the safe assembly, operation, and maintenance of your new TV stand. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

Figure 1: Mount-It! MI-863 3-in-1 TV Stand with Mount and Glass Shelves

Sikkerhedsoplysninger

Please observe the following safety precautions to prevent injury or damage to your product:

• Læs alle instruktioner: Ensure you understand all assembly steps before proceeding. If you have questions, contact Mount-It! customer support.
• Vægt kapacitet: Do not exceed the maximum weight capacity for the TV mount or glass shelves. Refer to the Specifications section for details.
• Korrekt værktøj: Brug de korrekte værktøjer som angivet i samlevejledningen.
• To-personers samling: For safety, it is recommended that two people assemble this product, especially when handling the TV and glass shelves.
• Plan overflade: Always place the TV stand on a flat, level, and stable surface to prevent tipping.
• Kabelstyring: Route all cables carefully to avoid tripping hazards and to prevent cables from being pinched or damaged.
• Børn og kæledyr: Keep children and pets away from the assembly area. Do not allow children to climb on or play with the TV stand.
• Hærdet glas: Handle glass shelves with care. Avoid impacts to the edges of the glass.

Pakkens indhold

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact Mount-It! customer support.

• Hovedstøttekolonne
• TV Mounting Bracket (VESA compatible)
• Three (3) Tempered Glass Shelves
• Bundplade
• Support Pillars for Glass Shelves
• Hardware Kit (screws, washers, spacers for assembly and TV attachment)
• Monteringsværktøj (f.eks. unbrakonøgle)

Figur 2: Overview of TV Stand components

Opsætnings- og monteringsvejledning

Følg disse trin omhyggeligt for korrekt montering. Det anbefales at få en anden person til at hjælpe med monteringen.

1. Forbered basen: Place the base plate on a clean, flat surface. Attach the main support column to the base plate using the provided screws and tools. Ensure it is securely fastened.
2. Install Lower Glass Shelves: Attach the support pillars for the lower shelves to the main support column and the base plate. Carefully place the bottom tempered glass shelf onto these pillars, securing it with the appropriate hardware. Repeat for the middle shelf.
3. Install Top Glass Shelf: Attach the remaining support pillars for the top shelf. Carefully place the top tempered glass shelf onto these pillars, securing it.


Figure 3: Detail of glass shelf and support pillar connection

4. Fastgør TV-monteringsbeslag: Secure the TV mounting bracket to the top of the main support column using the designated screws. Ensure the bracket is oriented correctly and tightened firmly.

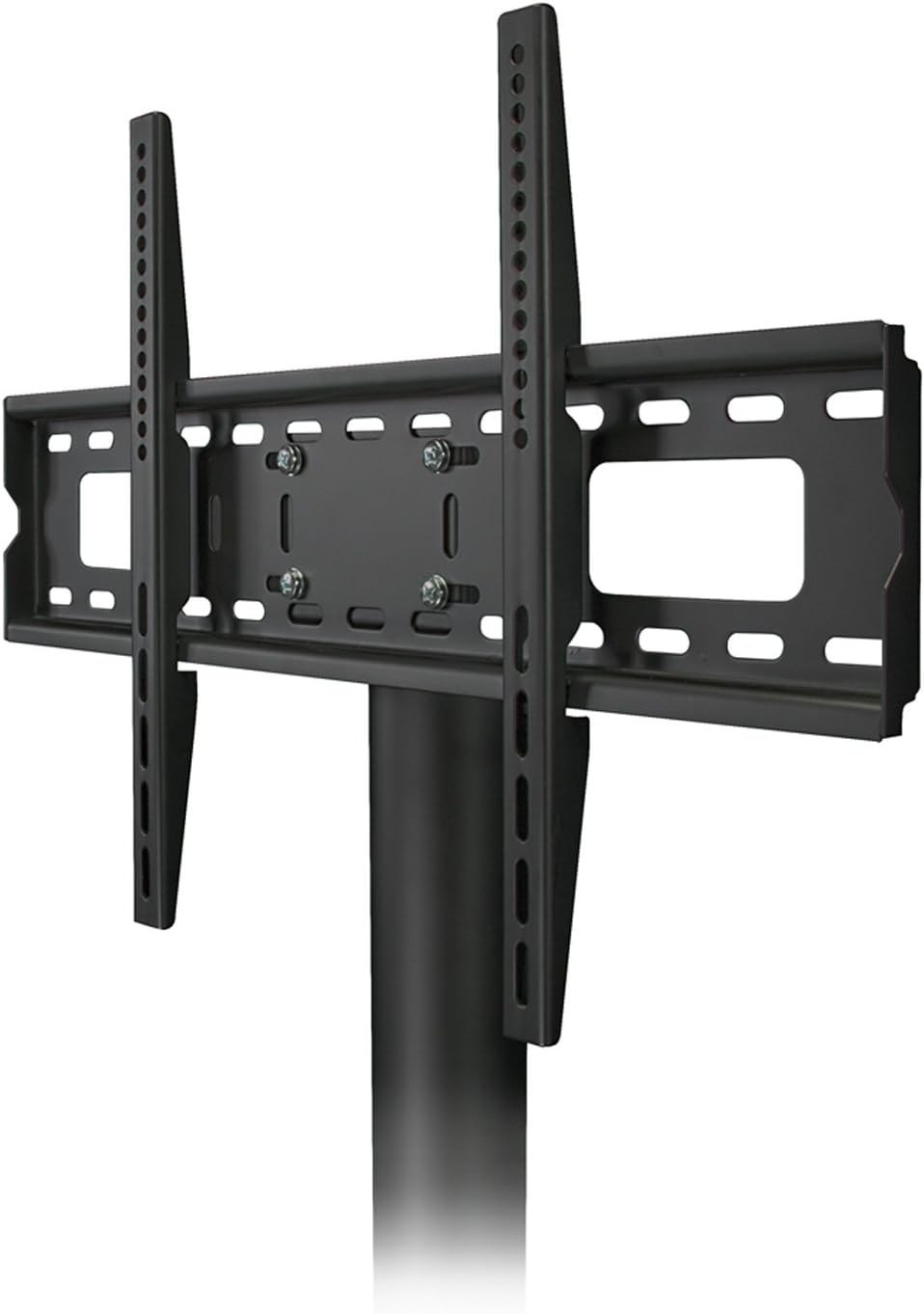

Figure 4: TV mounting bracket detail

5. Prepare TV for Mounting: Identify the VESA mounting holes on the back of your television. Attach the vertical TV brackets (part of the mounting bracket assembly) to your TV using the appropriate screws, washers, and spacers from the hardware kit. Ensure the brackets are centered and securely fastened to your TV.
6. Monter tv'et: With assistance, carefully lift your television and hook the attached vertical TV brackets onto the horizontal bar of the TV mounting bracket on the stand. Once hooked, gently lower the TV into place. Secure the TV to the stand by tightening the safety screws located at the bottom of the vertical TV brackets. This prevents accidental lifting or movement.


Figure 5: Television mounted on the stand

7. Kabelstyring: Utilize the integrated cable management channels within the main support column to route and conceal your TV and component cables for a clean and organized appearance.

Betjeningsvejledning

The Mount-It! MI-863 TV Stand is designed for straightforward use.

• TV-placering: Ensure your TV is securely attached to the mounting bracket as per the assembly instructions. The mount allows for slight height adjustments during installation.
• Komponentplacering: Place your cable box, DVD player, gaming consoles, and other AV components on the tempered glass shelves. Distribute weight evenly across the shelves.
• Drejefunktionalitet: The TV mount may offer a limited swivel range. Gently rotate the TV to achieve your desired viewing angle. Do not force the TV beyond its intended swivel limits.

Opretholdelse

Regelmæssig vedligeholdelse vil forlænge levetiden og udseendet af dit TV-bord.

• Rensning: Brug en blød, damp cloth to clean the steel frame. For the tempered glass shelves, use a glass cleaner and a microfiber cloth to avoid streaks. Avoid abrasive cleaners or harsh chemicals.
• Hardwarekontrol: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary, but do not overtighten.
• Inspektion: Inspect the glass shelves for any chips or cracks. If damage is found, contact customer support for replacement options.

Fejlfinding

If you encounter issues with your Mount-It! MI-863 TV Stand, refer to the following common solutions:

• Stativet er ustabilt:
  • Sørg for, at stativet står på en flad, jævn overflade.
  • Kontroller, at alle monteringsskruer er forsvarligt spændt.
  • Verify that the TV weight does not exceed the stand's capacity.
• TV'et er ikke i vater:
  • Adjust the vertical TV brackets on the back of your television before mounting.
  • Ensure the main support column is straight and securely attached to the base.
• Cables are Visible/Messy:
  • Utilize the cable management channels in the main support column.
  • Consider using cable ties or sleeves to bundle cables neatly.

If these solutions do not resolve your issue, please contact Mount-It! customer support for further assistance.

Specifikationer

Figur 6: Produktmål

Garanti og support

Mount-It! stands behind its products. For warranty information, technical assistance, or any questions regarding your MI-863 TV Stand, please contact our US-Based Customer Support team. Contact details can typically be found on the Mount-It! official webwebstedet eller på produktemballagen.
