Hamilton PEEK Guard-søjlestartersæt brugermanual

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of the Hamilton PEEK Guard Column Starter Kit. This kit is designed for laboratory use, specifically to protect analytical chromatography columns from particulate matter and strongly retained compounds, thereby extending the lifespan and improving the performance of your analytical column.

Læs venligst denne manual grundigt, inden du bruger produktet, for at sikre sikker og effektiv drift.

2. Sikkerhedsoplysninger

Adherence to the following safety guidelines is crucial for safe operation and to prevent damage to the product or injury to personnel.

• Dette produkt er for laboratory use only. It is not suitable for medical, diagnostic, or human use.
• Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when handling chemicals or operating laboratory equipment.
• Ensure proper ventilation when working with solvents.
• Do not exceed the pressure limits specified for PEEK (Polyether Ether Ketone) components, typically up to 6,000 psi (413 bar), though specific system limits may vary.
• Avoid overtightening PEEK fittings, as this can damage the threads or ferrules. PEEK fittings are designed for finger-tight connections.
• Dispose of waste materials and used components according to local regulations.

3. Produktet er slutview

The Hamilton PEEK Guard Column Starter Kit typically includes the necessary components to assemble and integrate a guard column into your liquid chromatography system. These components are made from PEEK, a chemically inert and biocompatible polymer, suitable for a wide range of chromatographic applications.

A typical kit contains:

• PEEK Guard Column Body: The housing for the guard column cartridge or frit.
• PEEK Frits/Filters: Porous discs that act as filters to prevent particulate matter from entering the analytical column.
• PEEK Fittings: Connectors (e.g., nuts and ferrules) used to secure the guard column into the fluid path.

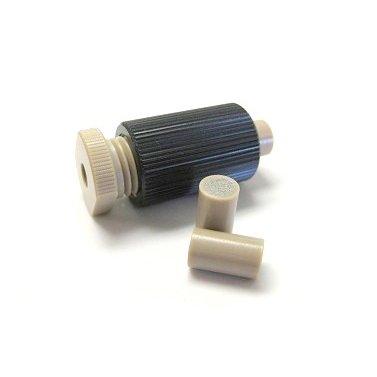

Figur 1: Eksample components of a PEEK guard column kit, showing a PEEK fitting and two PEEK frits.

4. Opsætning

Follow these steps to properly set up your PEEK Guard Column:

1. Udpak komponenter: Carefully remove all components from the packaging and inspect them for any visible damage.
2. Assemble Guard Column (if applicable): If your kit includes a separate guard column body and frits, insert the appropriate frit into the designated end of the guard column body. Ensure it is seated correctly.
3. Opret forbindelse til systemet: Identify the inlet and outlet ports on your chromatography system where the guard column will be installed. Typically, the guard column is placed between the injector and the analytical column.
4. Fastgør beslag: Use the provided PEEK fittings (nuts and ferrules) to connect the guard column to the tubing of your chromatography system. Slide the nut and ferrule onto the tubing, then insert the tubing into the guard column port until it bottoms out.
5. Spænd forbindelser: Finger-tighten the PEEK nuts. PEEK fittings are designed to seal effectively with minimal torque. Overtightening can deform the ferrule or strip the threads, leading to leaks or damage.
6. Skyllesystem: Før du kører samples, flush the system with an appropriate solvent to ensure all air is removed and to check for leaks. Observe pressure readings to confirm proper flow.

5. Betjeningsvejledning

Once installed, the PEEK guard column operates as an integral part of your chromatography system. It functions by filtering the mobile phase and sample before they reach the more expensive analytical column.

• Strømningsretning: Most guard columns are designed to be bidirectional, but always confirm with specific product documentation if a flow direction is indicated.
• Trykovervågning: Regularly monitor the system pressure. A significant increase in back pressure over time is often an indication that the guard column or its frit is becoming clogged and requires maintenance or replacement.
• Kemisk kompatibilitet: Ensure that the mobile phases and samples used are compatible with PEEK material. While PEEK is highly resistant to many common solvents, strong acids (e.g., concentrated sulfuric acid) and certain halogenated solvents can degrade it over time.

6. Vedligeholdelse

Regular maintenance of your PEEK guard column will ensure optimal performance and extend the life of your analytical column.

• Inspektion: Periodically inspect the guard column and fittings for any signs of wear, damage, or leaks.
• Frit Replacement: The frits within the guard column are consumable items. Replace them when you observe a significant increase in system back pressure, or if chromatography performance degrades (e.g., peak broadening, tailing, or loss of resolution). The frequency of replacement depends on sample cleanliness and mobile phase quality.
• Rensning: If the guard column itself becomes contaminated, it may be possible to flush it with a strong solvent compatible with both the column packing (if applicable) and PEEK. Always follow recommended cleaning procedures for your specific guard column type.
• Opbevaring: When not in use, store the guard column properly capped and filled with an appropriate storage solvent to prevent drying out or contamination.

7. Fejlfinding

This section provides solutions to common issues encountered with PEEK guard columns.

8. Specifikationer

Key specifications for the Hamilton PEEK Guard Column Starter Kit:

9. Garantioplysninger

Specific warranty details for the Hamilton PEEK Guard Column Starter Kit are not included in this manual. For comprehensive warranty information, please refer to the official HamiltonBuhl webhjemmeside eller kontakt deres kundeservice direkte.

10. Support og kontaktoplysninger

For technical support, additional product information, or to inquire about replacement parts, please visit the official HamiltonBuhl website or contact their authorized distributors. Contact details can typically be found on the manufacturer's webwebsted.
