Mastech MS2115B True RMS Digital Camp Brugervejledning til Meter Multimeter

1. Introduktion

Thank you for choosing the Mastech MS2115B True RMS Digital Clamp Meter. This instrument is designed for safe and accurate measurement of various electrical parameters. This manual provides essential information for the proper and safe operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

2. Sikkerhedsoplysninger

To ensure safe operation and service of the meter, follow these safety precautions:

• Overhold altid lokale og nationale sikkerhedsforskrifter.
• Brug ikke måleren, hvis den ser beskadiget ud, eller hvis isoleringen på testledningerne er kompromitteret.
• Påfør aldrig mere end den nominelle voltage, som markeret på måleren, mellem terminaler eller mellem enhver terminal og jord.
• Vær yderst forsigtig, når du arbejder med voltages above 60V DC or 30V AC RMS. These voltages udgør en stødfare.
• Keep your fingers behind the probe barriers when making measurements.
• Disconnect the test leads from the circuit before changing functions.
• Remove the test leads from the meter before opening the battery cover.
• Replace the battery as soon as the low battery indicator appears to avoid incorrect readings.
• Brug ikke måleren i eksplosive miljøer med gas, damp eller støv.
• Sørg for at clamp jaw is fully closed when taking current measurements.

3. Produktet er slutview

The Mastech MS2115B is a True RMS digital clamp meter designed for professional and home use. It offers a wide range of measurement capabilities and features for electrical testing.

3.1 Nøglefunktioner

• Dual Display with 6000 counts for clear readings.
• Jaw size up to Ø40mm (1.6 inch) for various conductor sizes.
• Auto Ranging and Manual Ranging capabilities.
• DC/AC current measurement up to 1000A.
• Tests AC/DC voltage and current, resistance, capacitance, frequency, and duty cycle.
• True RMS (Root Mean Square) measurement for accurate readings on non-sinusoidal waveforms.
• NCV (Non-Contact Voltage Detector) for identifying live wires without direct contact.
• Inrush current measurement for motor startup analysis.
• Data Hold, MAX/MIN Value Measurement, and Relative Measurement functions.
• Diode test and Continuity Buzzer (<50 ohm).
• Display Backlight and Work Light for use in dimly lit areas.
• Low Battery Display and Auto Power Off for extended battery life.
• USB interface for data communication with Windows OS.

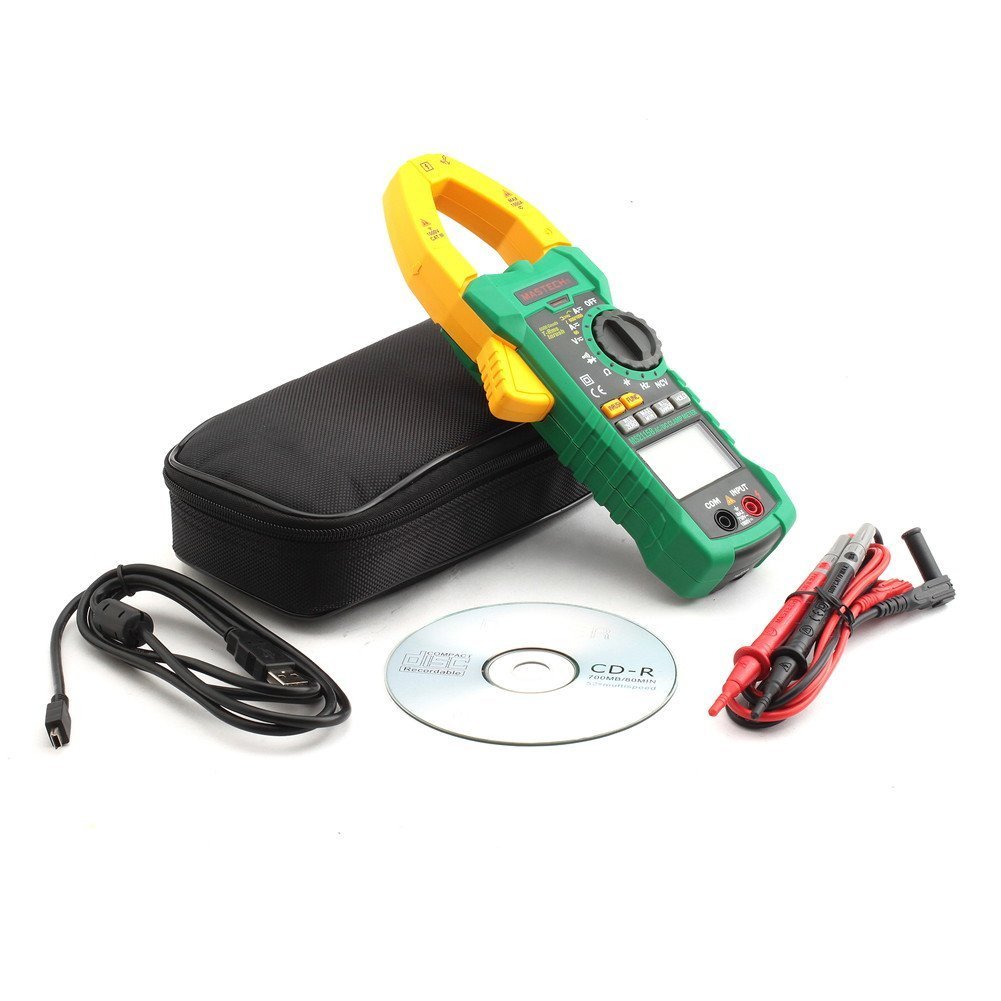

3.2 Komponenter

Familiarize yourself with the main components of the MS2115B clamp måler:

4. Opsætning

4.1 Batteriinstallation

The Mastech MS2115B requires batteries for operation. Please note that batteries are not included in the package.

1. Ensure the meter is turned OFF and disconnect all test leads.
2. Find batteridækslet på bagsiden af ​​måleren.
3. Brug en skruetrækker til at løsne skruen, der fastgør batteridækslet.
4. Fjern forsigtigt batteridækslet.
5. Insert the required batteries, observing correct polarity (+ and -).
6. Sæt batteridækslet på igen og fastgør det med skruen.

4.2 Tilslutning af testledninger

For bdtage, resistance, capacitance, frequency, diode, and continuity measurements, connect the test leads:

• Insert the red test lead into the "INPUT" terminal.
• Insert the black test lead into the "COM" (common) terminal.

4.3 USB Interface Setup (for Windows OS)

The MS2115B features a USB interface for data logging and analysis on a computer running Windows OS.

1. Install the provided communication software from the included CD onto your Windows computer.
2. Connect the USB communication cable to the meter's USB port and to an available USB port on your computer.
3. Follow the software instructions to establish communication and begin data transfer.

5. Betjeningsvejledning

5.1 Power On/Off and Auto Power Off

• To power on, rotate the rotary switch from "OFF" to any desired measurement function.
• To power off, rotate the rotary switch back to "OFF".
• The meter features an Auto Power Off function to conserve battery life. It will automatically turn off after approximately 15 minutes of inactivity. To disable this feature temporarily, refer to the full user manual for specific button combinations during power-on.

5.2 Funktionsknapper

• FUNC: Selects between different measurement modes within a single rotary switch position (e.g., AC/DC voltage, Diode/Continuity).
• RÆKKEVIDDE: Toggles between auto-ranging and manual ranging. In manual ranging, press repeatedly to cycle through ranges.
• HOLDE: Fryser den aktuelle displayaflæsning. Tryk igen for at slippe.
• MAX / MIN: Displays the maximum or minimum reading recorded since activation. Press repeatedly to cycle through MAX, MIN, and current readings.
• REL/ZERO: Activates relative measurement mode, displaying the difference between the current reading and a stored reference value. Also used for zeroing DC current readings.
• INRUSH: Measures the inrush current (startup current) of motors or other inductive loads.
• Backlight/Work Light: Activates the display backlight and work light for improved visibility.

5.3 Måleprocedurer

5.3.1 DC/AC Voltage Måling

1. Connect the red test lead to the "INPUT" terminal and the black test lead to the "COM" terminal.
2. Rotate the rotary switch to the V (Bindtage) position. Press FUNK to select between DC V= eller AC V~.
3. Touch the test probes to the desired test points in the circuit.
4. Læs bindtage -værdi på displayet.

5.3.2 DC/AC Current Measurement (Clamp)

1. Rotate the rotary switch to the A (Current) position. Press FUNK to select between DC A= eller AC A~.
2. Åbn clamp jaw and enclose only one conductor of the circuit. Ensure the jaw is fully closed.
3. For DC current, press REL/NUL to zero the display before measurement if needed.
4. Aflæs den aktuelle værdi på displayet.

5.3.3 Modstandsmåling

1. Connect test leads as for voltage.
2. Rotate the rotary switch to the Ω (Modstands)position.
3. Sørg for, at det kredsløb, der testes, er spændingsløst.
4. Touch the test probes across the component or circuit to measure resistance.
5. Læs modstandsværdien på displayet.

5.3.4 Kapacitansmåling

1. Connect test leads as for voltage.
2. Rotate the rotary switch to the KASKET (Kapacitans) position.
3. Sørg for, at kondensatoren er helt afladet før måling.
4. Berør testproberne hen over kondensatorterminalerne.
5. Læs kapacitansværdien på displayet.

5.3.5 Frequency and Duty Cycle Measurement

1. Connect test leads as for voltage.
2. Rotate the rotary switch to the Hz /% (Frequency/Duty Cycle) position.
3. Trykke FUNK to toggle between Frequency (Hz) and Duty Cycle (%).
4. Touch the test probes to the signal source.
5. Read the frequency or duty cycle value on the display.

5.3.6 Diode Test and Continuity

1. Connect test leads as for voltage.
2. Rotate the rotary switch to the Diode/Kontinuitet position.
3. Trykke FUNK to select between Diode test or Continuity test.
4. For Diode Test: Touch the red probe to the anode and the black probe to the cathode. The display shows the forward voltage drop. Reverse the probes to check for open circuit.
5. For Continuity Test: Touch the probes to the circuit. A continuous beep indicates continuity (resistance less than 50 ohms).

5.3.7 NCV (kontaktfri volumen)tage) Registrering

1. Rotate the rotary switch to the NCV position.
2. Move the top of the clamp meter near a conductor or outlet.
3. The meter will emit an audible beep and the NCV indicator will light up if AC voltage er opdaget.

5.3.8 Måling af indkoblingsstrøm

1. Rotate the rotary switch to the A~ (AC Current) position.
2. Tryk på INRUSH knap.
3. Åbn clamp jaw and enclose only one conductor of the circuit where the inrush current is to be measured.
4. Turn on the device or motor. The meter will capture and display the peak inrush current.

6. Vedligeholdelse

6.1 Rengøring

• Tør med jævne mellemrum kabinettet med annonceamp klud og mildt rengøringsmiddel. Brug ikke slibemidler eller opløsningsmidler.
• Keep the input terminals free of dirt and moisture.

6.2 Udskiftning af batteri

When the low battery indicator appears on the display, replace the batteries immediately to ensure accurate readings. Refer to Section 4.1 for battery installation instructions.

6.3 Opbevaring

• If the meter is not used for an extended period, remove the batteries to prevent leakage and damage.
• Opbevar måleren et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.

7. Fejlfinding

If you encounter issues with your Mastech MS2115B, refer to the following common troubleshooting steps:

If the problem persists after trying these steps, please contact Mastech customer support or your local distributor for assistance.

8. Tekniske specifikationer

The following table outlines the technical specifications for the Mastech MS2115B Digital Clamp Måler:

Generelle specifikationer:

• Vise: Dual Display, 6000 counts
• Kæbeåbning: Ø40 mm (1.6 tommer)
• Ægte RMS: Ja
• NCV: Ja
• Inrush: Ja
• Data Hold: Ja
• MAX / MIN: Ja
• Relativ måling: Ja
• Backlight/Work Light: Ja
• Lavt batteri indikation: Ja
• Automatisk sluk: Ja
• USB-grænseflade: Yes (Windows OS compatible)
• Strømkilde: Batteridrevet (batterier medfølger ikke)
• Dimensioner: Cirka 26 x 14 x 6.6 cm
• Vægt: Cirka 720g
• Fabrikant: MASTECH
• Modelnummer: MS2115B
• ASIN: B00LD8IIJS
• UPC: 702382755386, 702382755881, 706551142168

9. Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. Mastech products typically come with a manufacturer's warranty against defects in materials and workmanship.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Mastech customer service or your authorized Mastech distributor. Contact details can usually be found on the manufacturer's official website or on your purchase invoice.
