Intermatic EC210WK Countdown Timer User Manual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Intermatic EC210WK Countdown Timer. This device is designed to provide silent, timed control for various electrical loads, enhancing energy savings and convenience in your home or office.

The EC210WK offers selectable countdown times of 10, 20, 30, and 60 minutes, along with a "HOLD" function for continuous operation. It is suitable for controlling indoor and outdoor lighting, bathroom and exhaust fans, and other energy-consuming appliances.

2. Vigtige sikkerhedsoplysninger

ADVARSEL: Risk of electric shock. Improper installation can lead to serious injury or death. Always turn off power at the circuit breaker or fuse box before installing or servicing this device. Installation should be performed by a qualified electrician or in accordance with local electrical codes.

• Afbryd strømmen ved afbryderen før installation.
• Sørg for, at alle ledningsforbindelser er sikre.
• Denne enhed er kun til indendørs brug.
• Overskrid ikke de maksimale belastningsværdier, der er angivet i specifikationsafsnittet.
• A neutral wire is required for operation.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Intermatic EC210WK Countdown Timer (1 unit)
• Instruktionsmanual (dette dokument)

Note: A wall plate is sold separately and is not included with this unit.

4. Installation

4.1 Nødvendigt værktøj

• Skruetrækker (Phillips og/eller flad)
• Trådstrippere
• Elektrisk tape (valgfrit)
• Voltage Tester (recommended)

4.2 Ledningsdiagram og tilslutninger

The EC210WK timer requires a neutral wire for proper operation. Ensure your electrical box has a neutral wire available. Refer to the wiring diagram below for correct connections.

1. Sluk for strømmen: Find den afbryder, der styrer den kontakt, du udskifter, og sluk den. Kontroller, at strømmen er slukket med en lydstyrkemåler.tage tester.
2. Fjern den gamle switch: Carefully remove the existing wall plate and unscrew the old switch from the electrical box. Disconnect the wires from the old switch.

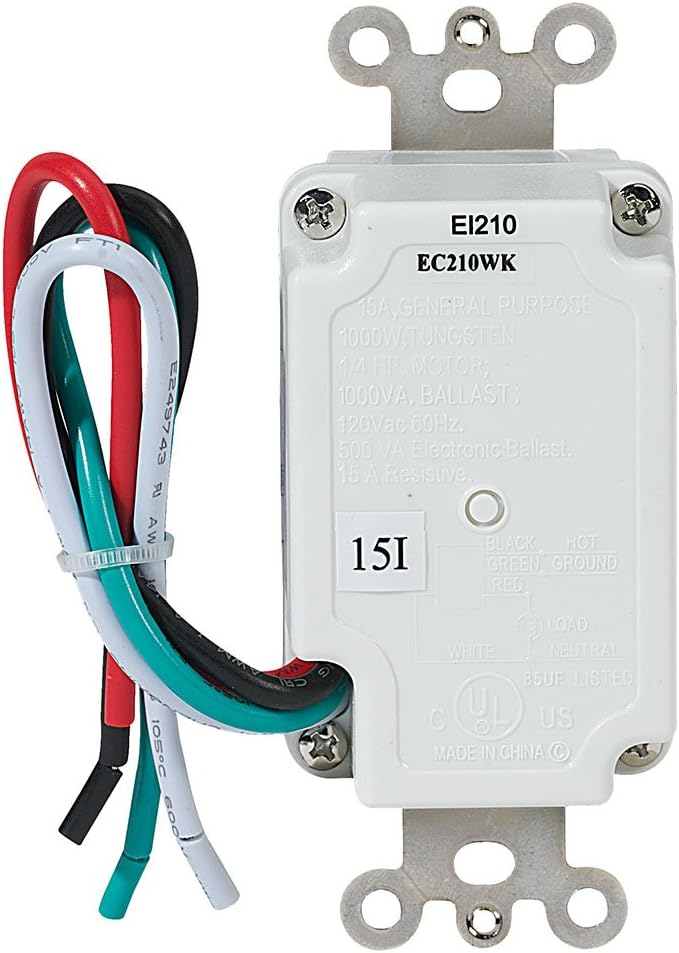

3. Identificér ledninger:
   • Sort ledning: Connects to the incoming 120 VAC HOT line.
   • Hvid ledning: Connects to the NEUTRAL line.
   • Rød ledning: Connects to the LOAD (the appliance or light fixture).
   • Grøn ledning: Connects to the GROUND wire.
4. Tilslut ny timer: Using wire nuts (not included), connect the wires from the EC210WK timer to the corresponding wires in the electrical box.
   • Timer's Black wire to House Hot wire.
   • Timer's White wire to House Neutral wire.
   • Timer's Red wire to House Load wire.
   • Timer's Green wire to House Ground wire.
5. Monteringstimer: Carefully fold the wires into the electrical box, ensuring no wires are pinched. Secure the timer to the electrical box using the provided screws.
6. Installer vægplade: Attach a standard decorator-style wall plate (not included) over the timer.
7. Gendan strøm: Tænd for strømmen igen ved afbryderen.

5. Betjening

The Intermatic EC210WK timer features five push buttons for selecting countdown durations and a "HOLD" function.

1. Selecting a Countdown Time: Press the desired time button (10 MIN, 20 MIN, 30 MIN, or 60 MIN). The corresponding LED indicator will illuminate, and the connected load will turn ON for the selected duration. The load will automatically turn OFF when the countdown expires.
2. "HOLD"-funktion: Press the "HOLD" button to keep the connected load ON continuously. The "HOLD" LED indicator will illuminate. To exit the "HOLD" function, press any of the countdown time buttons, or press the "HOLD" button again to turn the load OFF.
3. Canceling a Countdown: To turn OFF the connected load before the countdown expires, press the currently active countdown button again, or press the "HOLD" button (which will then require a second press to turn off if the load was already on).

6. Vedligeholdelse

The Intermatic EC210WK Countdown Timer requires minimal maintenance.

• Rensning: To clean the surface of the timer, wipe with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er slukket, før rengøring.
• Inspektion: Periodically inspect the timer and wall plate for any signs of damage or loose connections. If any issues are found, turn off power at the circuit breaker and consult a qualified electrician.

7. Fejlfinding

If you experience issues with your EC210WK timer, refer to the following common problems and solutions:

8. Specifikationer

Technical specifications for the Intermatic EC210WK Countdown Timer:

• Model: EC210WK
• Farve: Hvid
• Input bindtage: 120 VAC, 60 Hz
• Modstandsdygtig belastning: 15A, 1800W
• Tungsten Load: 8.3A, 1000W
• Inductive Ballast: 8A, 1000 VA
• Elektronisk ballast: 500 VA
• Motor: 1 / 4 HP
• Countdown Settings: 10, 20, 30, 60 minutes, and HOLD
• Monteringstype: In-Wall
• Skift stil: SPST
• Varens vægt: 5.3 ounce
• Certificeringer: UL-listet

9. Garanti og support

Garanti: This Intermatic EC210WK Countdown Timer is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

Kundesupport: For technical assistance, warranty claims, or further information, please contact Intermatic customer service. Refer to the official Intermatic webwebstedet for aktuelle kontaktoplysninger.

Gem venligst din købsbevis af garantihensyn.
