Indledning
This manual provides instructions for the safe installation, operation, and maintenance of your Hampton Bay 180-Degree Wall-Mount 1-Light Outdoor Aged Iron Motion-Sensing Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference.

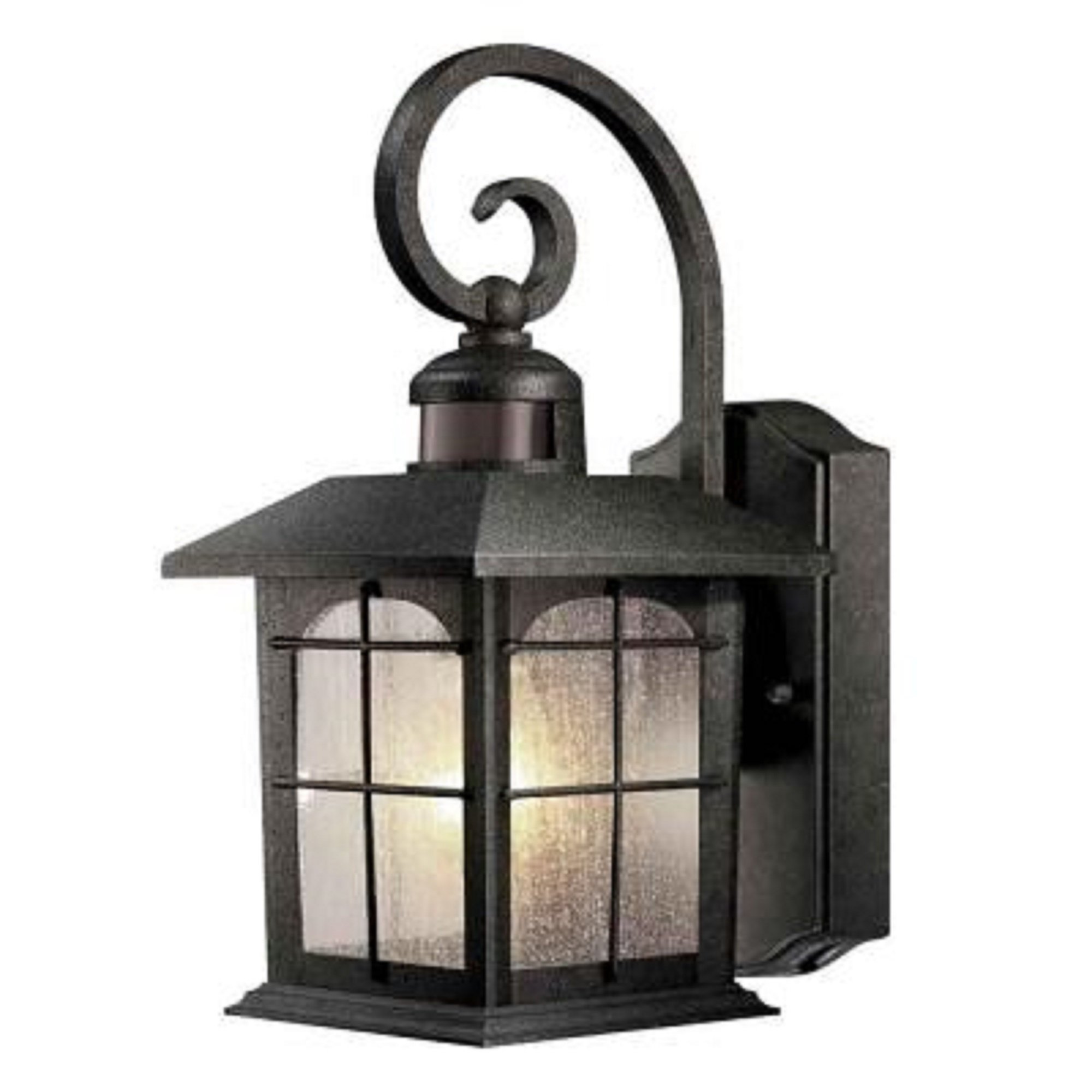

Image: Hampton Bay 180-Degree Wall-Mount 1-Light Outdoor Aged Iron Motion-Sensing Lantern. This image displays the full product, highlighting its aged iron finish, clear seeded glass panels, and the integrated motion sensor located at the top of the fixture.
Sikkerhedsoplysninger
Always follow basic safety precautions when installing or maintaining electrical products to reduce the risk of fire, electric shock, and personal injury.
- Sluk for strømmen ved afbryderen eller sikringsboksen før installation.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Sørg for, at alle forbindelser er sikre og korrekt isolerede.
- Overskrid ikke det maksimale wattage specificeret for pæren.
- Denne lampe er designet til udendørs brug og er vejrbestandig.
Pakkens indhold
Kontroller, at alle dele er til stede, før installationen påbegyndes:
- Lantern Fixture (1)
- Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
- Instruktionsmanual (1)
Opsætning og installation
- Forbered til installation: Turn off power at the main circuit breaker. Clear the work area.
- Montering af monteringsplade: Attach the mounting plate to the junction box using the provided screws. Ensure it is securely fastened.
- Ledningsforbindelser: Connect the fixture's wires to the house wiring according to local electrical codes. Typically, black to black (live), white to white (neutral), and bare copper/green to ground. Use wire nuts to secure connections.
- Armaturmontering: Carefully align the fixture with the mounting plate and secure it with the decorative nuts or screws provided.
- Installation af pære: Install one medium-base bulb (not included) into the socket. Do not exceed 100 watts. Compact fluorescent bulbs can also be used.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
Betjeningsvejledning
Bevægelsessensordrift
The lantern features a 180-degree motion sensor with a 30 ft. detection range. It is designed to automatically turn on when motion is detected within its range during nighttime hours.
- Automatisk tænd/sluk: The built-in photocell detects ambient light levels. The light will automatically turn off at daybreak and remain off during daylight hours.
- Bevægelsesaktivering: When it is dark, the light will activate for a set duration (typically adjustable, refer to specific product settings if available) upon detecting motion.
- Sensorjustering: The motion sensor sensitivity and duration settings may be adjustable. Consult the physical product for any dials or switches, usually located near the sensor itself.
Photocell Functionality
The integrated photocell ensures energy efficiency by preventing the light from operating during the day. It automatically turns the light off at daybreak and allows the motion sensor to become active at dusk.
Opretholdelse
- Rensning: For at rengøre armaturet skal du slukke for strømmen og tørre af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen eller glasset.
- Udskiftning af pære: Ensure power is off before replacing the bulb. Allow the old bulb to cool before removal. Use only medium-base bulbs up to 100 watts.
- Inspektion: Periodically inspect the wiring and connections for any signs of wear or damage. Ensure the fixture is securely mounted.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke om natten. | No power; faulty bulb; photocell malfunction; sensor obstructed. | Check circuit breaker. Replace bulb. Ensure photocell is not obstructed by light. Verify sensor is clear. |
| Lyset forbliver tændt i løbet af dagen. | Fotocellen er blokeret eller modtager utilstrækkeligt lys. | Ensure no objects are blocking the photocell. Relocate fixture if necessary to a brighter area. |
| Light turns on too frequently or not at all. | Motion sensor sensitivity setting is incorrect or sensor is obstructed. | Adjust motion sensor sensitivity. Clear any obstructions from the sensor's field of view. |
| Lyse flimrer. | Loose wiring connection; incorrect bulb type; faulty bulb. | Turn off power and check all wire connections. Replace bulb with a new one of the correct type and wattage. |
Specifikationer
- Mærke: Hampton Bugt
- Modelnummer: HB7251M-292
- Armatur type: Wall-Mount Outdoor Lantern
- Slutte: Ældret jern
- Glastype: Klart glas med frø
- Lyskilde: 1 x Medium-Base Bulb (E26)
- Max Wattage: 100 watt
- Voltage: 120 volt
- Bevægelsessensor: 180-Degree, 30 ft. detection range
- Særlige funktioner: Motion Sensor, Photocell (Dusk-to-Dawn)
- Konstruktionsmateriale: Cast-aluminum, Glass
- Dimensioner: 9.5 x 7 x 14.5 tommer (L x B x H)
- Vægt: 3.2 pund
- UL-listet: Ja
Garanti og support
This product comes with a manufacturer and seller combination warranty. For specific warranty details, claims, or technical support, please refer to the original purchase documentation or contact Hampton Bay kundeservice.
For yderligere hjælp, besøg venligst Hampton Bugt webwebsted eller kontakt din forhandler.
