1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Taco 006-IQBC7-1IFC SmartPlus Hot Water Recirculation Pump. The SmartPlus system is designed to provide instant hot water at fixtures by intelligently monitoring and adapting to your household's hot water usage patterns, or by operating in a continuous pulse mode. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
2. Vigtige sikkerhedsoplysninger
ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i elektrisk stød, brand, alvorlig personskade eller død.
- Afbryd altid strømmen, før du udfører service på pumpen.
- Installation must be performed by a qualified plumber or electrician in accordance with all local codes and regulations.
- Brug ikke pumpen, hvis netledningen er beskadiget.
- This pump is designed for hot water recirculation only. Do not use for other liquids or applications.
- Sørg for, at pumpen er korrekt jordforbundet.
- Brug passende personlige værnemidler (PPE) under installation og vedligeholdelse.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Taco 006-IQBC7-1IFC SmartPlus Recirculation Pump
- Line Cord (pre-attached)
- Internal Check Valve (pre-installed)
- Instruktionsmanual
4. Installationsvejledning
4.1 Tjekliste før installation
- Ensure the installation location is accessible for maintenance.
- Verify that the power supply matches the pump's requirements (115 Volts, 60 Hz).
- Confirm plumbing connections are ready for 1/2-inch sweat fittings.
- Turn off the main water supply and drain the hot water lines before proceeding.
4.2 Montering af pumpen
The pump should be mounted in an accessible location, typically near the hot water heater or at the furthest fixture from the heater, depending on the system design. Ensure the pump is installed in a horizontal position with the motor above the volute to prevent air pockets.
4.3 VVS-tilslutninger
- Prepare the 1/2-inch copper pipes for sweat connections. Clean and flux the pipe ends and the pump's sweat ports.
- Solder the pump into the hot water recirculation line. Ensure a watertight seal.
- The pump includes an internal check valve to prevent backflow.
- After soldering, allow the connections to cool completely before restoring water pressure.
4.4 Elektriske forbindelser
The Taco SmartPlus pump comes with a pre-attached line cord for easy electrical connection.
- Ensure the power outlet is a standard 115V, 60Hz grounded receptacle.
- Plug the line cord into the dedicated electrical outlet.
- Brug ikke forlængerledninger eller adaptere.
Figure 1: Taco SmartPlus Hot Water Recirculation Pump

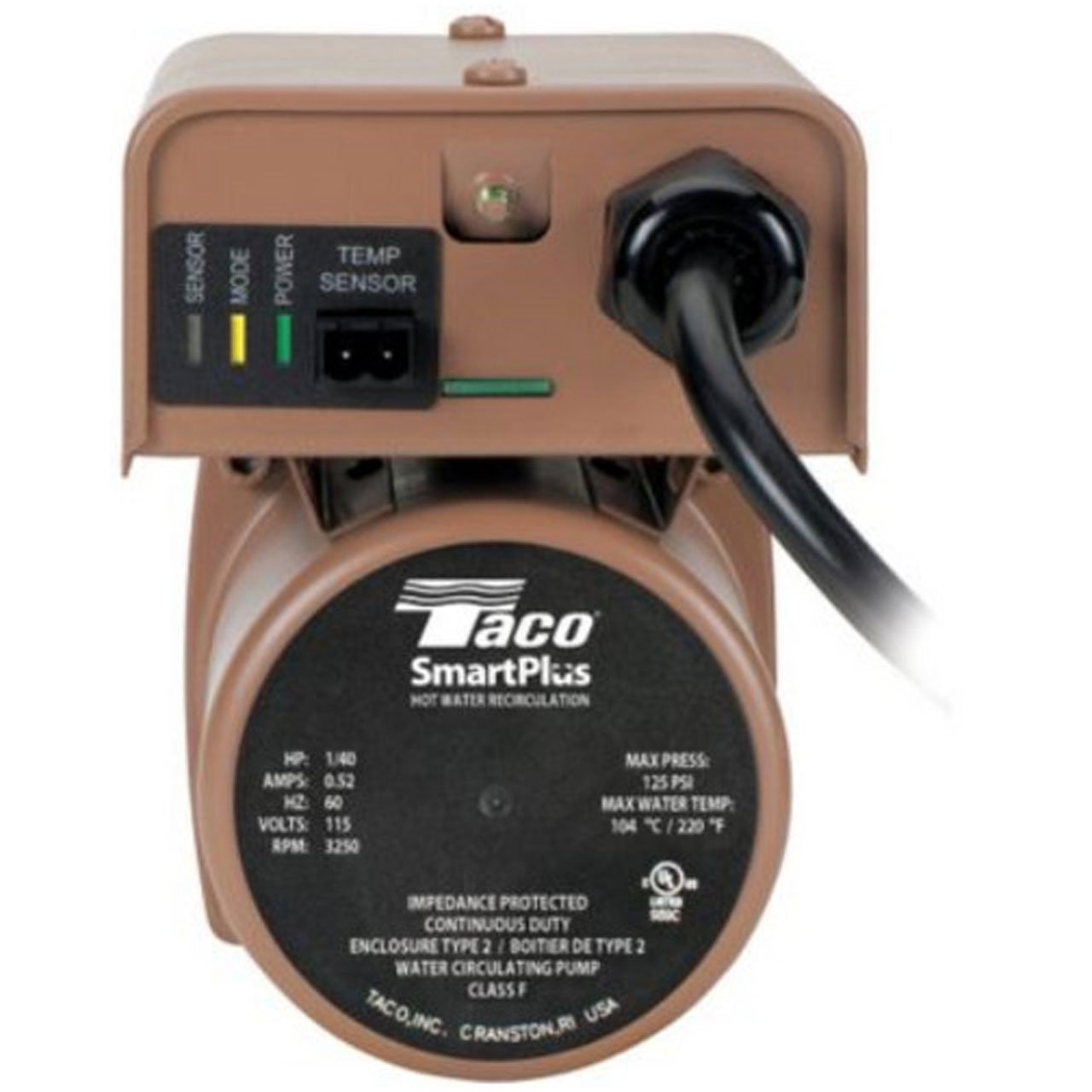

This image displays the Taco SmartPlus hot water recirculation pump. The top section shows the control panel with LED indicators for 'SENSOR', 'MODE', and 'POWER', along with a 'TEMP SENSOR' port and the power cord connection. The main body of the pump features the 'Taco SmartPlus HOT WATER RECIRCULATION' logo and detailed specifications such as HP: 1/40, AMPS: 0.52, HZ: 60, VOLTS: 115, RPM: 3250, MAX PRESS: 125 PSI, MAX WATER TEMP: 104°C / 220°F. It also notes 'IMPEDANCE PROTECTED CONTINUOUS DUTY ENCLOSURE TYPE 2 / BOITIER DE TYPE 2 WATER CIRCULATING PUMP CLASS F' and 'TACO, INC. CRANSTON RI USA'.
5. Indledende opsætning og konfiguration
5.1 Tænd
Once the pump is installed and plumbed, restore the main water supply and check for leaks. Then, plug in the pump's line cord to power it on.
5.2 Forståelse af LED-indikatorerne
The control panel features three LED indicators:
- SENSOR LED: Indicates the status of the temperature sensor.
- MODE LED: Indicates the current operating mode (Smart Mode, Pulse Mode, or Vacation Mode).
- STRØM-LED: Indicates that the pump is receiving electrical power.
5.3 driftstilstande
The SmartPlus pump offers different operating modes to suit your needs. The mode can typically be selected via a button on the control panel (refer to specific product labeling if available).
- Smart Mode: The default and most energy-efficient mode. The pump learns your hot water usage patterns.
- Pulstilstand: Provides continuous hot water by cycling the pump at regular intervals.
- Ferietilstand: An energy-saving mode for extended periods of inactivity.
6. Betjening
6.1 Smart Mode (Adaptive Recirculation)
In Smart Mode, the pump monitors and records your home's hot water usage pattern for the first seven days of operation. During the subsequent seven days, the SmartPlus repeats the preceding week's usage pattern to cycle the pump, ensuring instant hot water at all fixtures only when needed. This learning and repeating process is continuous, adapting every seven days to optimize efficiency and comfort.
6.2 Pulse Mode (Continuous Recirculation)
If selected, Pulse Mode sets the SmartPlus to run for 150 seconds every 10 minutes. This mode maintains hot water at all fixtures on a consistent schedule, regardless of learned usage patterns. This can be useful in situations where immediate hot water is always desired, or during periods of unpredictable demand.
6.3 Ferietilstand
The Vacation Function is designed to save energy during extended periods of absence. After 36 hours of inactivity (no hot water usage detected), the pump will automatically turn off. While in Vacation Mode, the pump will periodically cycle (Exercise Function) to prevent seizing and maintain system readiness. The pump will resume normal operation once hot water usage is detected again.
7. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your SmartPlus pump.
- Årlig inspektion: Annually inspect the pump and plumbing connections for any signs of leaks, corrosion, or wear.
- Rensning: Keep the exterior of the pump clean and free from dust and debris. Do not use harsh chemicals.
- O-ring kontrol: casing O-Ring (part number 007-003RP) should be inspected periodically and replaced if signs of wear or damage are present to prevent leaks.
- Patronsamling: The cartridge assembly (part number 005-020RP) is a critical component. If the pump experiences reduced performance or unusual noises, consult a qualified technician for inspection or replacement.
- Vinterisering: If the pump is installed in an unheated area subject to freezing temperatures, it must be drained and disconnected for winterization to prevent damage.
8. Fejlfindingsvejledning
Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No hot water at fixtures. | Pump not running; air in system; check valve issue; incorrect mode. | Check power connection and LED indicators. Bleed air from the system. Verify pump is in desired operating mode. |
| Pumpen tænder ikke. | No power; faulty wiring; pump malfunction. | Check power outlet and circuit breaker. Ensure power cord is securely plugged in. If POWER LED is off, consult an electrician. |
| Pump runs continuously in Smart Mode. | Learning phase; sensor issue; constant hot water demand. | Allow 7 days for learning cycle. Check SENSOR LED. Ensure no constant hot water draw. |
| Pumpen er støjende. | Air in system; worn bearings; foreign object. | Bleed air from the system. If noise persists, contact technical support. |
| Utætheder ved forbindelser. | Improperly soldered joints; worn O-ring. | Turn off water supply, drain, and re-solder connections. Inspect and replace O-ring if necessary. |
8.1 LED Indicator Troubleshooting
- Hvis STRØM-LED is off, check the power supply.
- Hvis TILSTAND LED is not indicating the expected mode, refer to the product's specific mode selection instructions.
- Hvis SENSOR LED indicates an error, ensure the temperature sensor is properly connected and functioning.
9. Tekniske specifikationer
| Specifikation | Værdi |
|---|---|
| Modelnummer | 006-IQBC7-1IFC |
| Hestekræfter (HK) | 0.025 (1/40) |
| Ampslette (AMPS) | 0.52 |
| Voltage (VOLTS) | 115 |
| Frekvens (HZ) | 60 |
| RPM | 3250 |
| Max tryk | 125 PSI |
| Maks. Vandtemperatur | 104°C / 220°F |
| Materiale | Bronze |
| Forbindelser | 1/2-Inch Sweat |
| Varens vægt | 6.24 pund |
| Produktdimensioner | 5 x 4 x 7 tommer |
| Indkapslingstype | Type 2 |
| Kontinuerlig Pligt | Ja |
| Intern kontraventil | Ja |
10. Garanti og support
10.1 Garantioplysninger
The Taco 006-IQBC7-1IFC SmartPlus Hot Water Recirculation Pump is covered by a 3 års begrænset garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For full warranty terms and conditions, please refer to the official Taco documentation or contact customer support.
10.2 Teknisk support
If you require technical assistance, have questions about installation, operation, or need to report a warranty claim, please contact Taco customer support. Have your model number and purchase date available when contacting support.
For further information, visit the official Taco webwebstedet eller kontakt din lokale forhandler.
