Produkt overview
The Focal TN-41 tweeters are high-quality 1-inch audio components designed for custom car audio installations. These tweeters are supplied without retail packaging or additional mounting brackets, making them ideal for experienced installers or those capable of fabricating their own mounting solutions. Each tweeter is pre-mounted on a coaxial arm, originally intended for integration into a coaxial speaker assembly. Users should be prepared to provide their own mounting hardware and adapt the tweeters to their specific vehicle's factory locations or custom enclosures.
Billede: Forside view of two Focal TN-41 1-inch tweeters, showcasing their compact design and the Focal logo.
Image: An angled perspective of the two Focal TN-41 tweeters, highlighting their dome and protective grille structure.

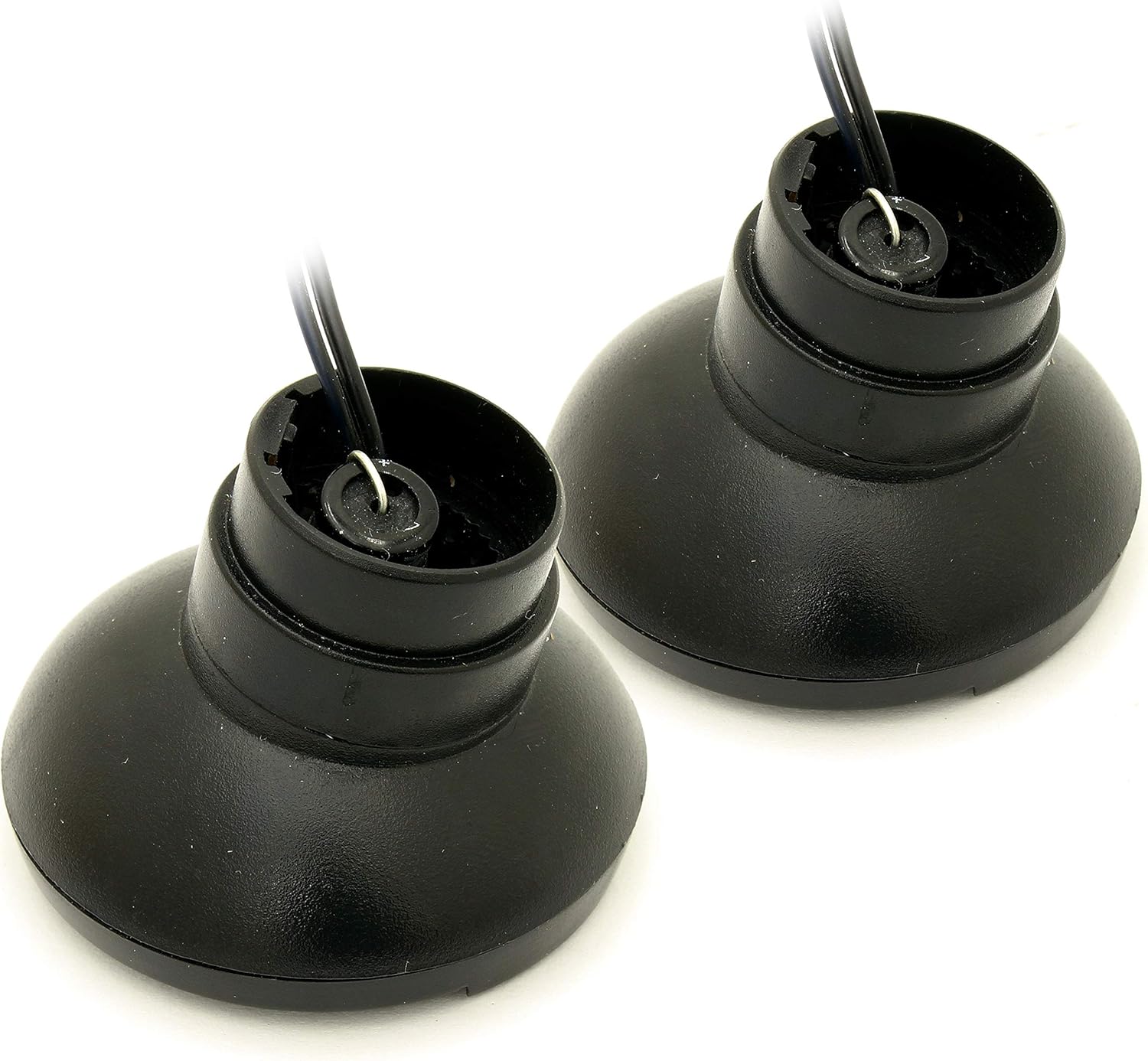

Billede: Bagside view of the Focal TN-41 tweeters, illustrating the base and the coaxial arm where wiring connections are made.
Opsætning og installation
The Focal TN-41 tweeters are designed for integration into existing car audio systems. Due to their nature as components without dedicated mounting hardware, professional installation is highly recommended. If performing a DIY installation, ensure you have the necessary tools and knowledge for custom fabrication and wiring.
Overvejelser om montering:
- These tweeters are best suited for custom installations where brackets are not pre-supplied.
- They can be mounted in factory locations using custom-fabricated hardware or suitable adhesives (e.g., hot glue, if appropriate for the application).
- Ensure the mounting location provides adequate clearance and does not obstruct any vehicle mechanisms.
Ledningsføring:
- The tweeters utilize coaxial connectivity. Connect them to the appropriate high-frequency output of your amplifier or crossover network.
- Always observe correct polarity (+ and -) to ensure proper phase and sound reproduction. Incorrect wiring can lead to poor sound quality or damage.
- Use appropriate gauge speaker wire for connections to minimize signal loss.
It is crucial to integrate these tweeters with a suitable crossover (passive or active) to protect them from low-frequency signals, which can cause damage. Consult your amplifier or head unit manual for crossover settings.
Betjeningsvejledning
Once properly installed and connected, the Focal TN-41 tweeters operate as part of your car's audio system. Their performance is largely dependent on the quality of the audio source, amplifier, and the tuning of your system.
Audio System Tuning:
- Crossover-indstillinger: Sørg for din amplifier or head unit's high-pass filter (HPF) is set appropriately for tweeters, typically above 3 kHz to prevent damage from low frequencies. Refer to your amplifier's manual for recommended settings.
- Forstærkningsjustering: Indstil ampforstærkningen korrekt for at matche udgangsvolumentage of your head unit. Avoid setting the gain too high, as this can lead to distortion and potential damage to the tweeters.
- Udligning: Use your head unit's equalizer to fine-tune the sound to your preference. Adjusting the high frequencies can enhance clarity and detail.
Listen for clear, crisp high-frequency reproduction. If you hear distortion or harshness, re-evaluate your system's settings, particularly the gain and crossover points.
Opretholdelse
Proper maintenance ensures the longevity and optimal performance of your Focal TN-41 tweeters.
- Rensning: Gently wipe the tweeter domes and grilles with a soft, dry, lint-free cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the materials.
- Miljøbeskyttelse: While designed for automotive use, protect the tweeters from excessive moisture, direct sunlight, and extreme temperatures when possible.
- Tilslutningstjek: Periodically inspect all wiring connections to ensure they are secure and free from corrosion. Loose connections can lead to intermittent sound or poor performance.
- Fysisk skade: Avoid touching the tweeter dome directly, as this can cause dents or damage that affect sound quality.
Fejlfinding
If you experience issues with your Focal TN-41 tweeters, refer to the following common troubleshooting steps:
No Sound from Tweeters:
- Tjek forbindelser: Ensure all speaker wires are securely connected to the tweeters, amplifier, and head unit. Verify correct polarity.
- AmpLifier Status: Bekræft amplifier is powered on and not in protection mode. Check its fuses.
- Crossover-indstillinger: Verify that the high-pass filter (HPF) on your amplifier or head unit is enabled and set correctly. If set too low or off, the tweeters may not receive the appropriate signal.
- Source Unit: Ensure the audio source (head unit) is functioning correctly and outputting sound.
Distorted or Harsh Sound:
- Forstærkningsindstilling: De amplifier gain may be set too high, causing clipping. Reduce the gain gradually until distortion disappears.
- Overgangspunkt: The crossover frequency might be too low, allowing mid-range or bass frequencies to reach the tweeters, causing distortion. Increase the HPF frequency.
- Udligning: Excessive boosting of high frequencies on your equalizer can lead to harshness. Adjust EQ settings for a balanced sound.
- Damaged Tweeter: In rare cases, the tweeter itself may be damaged. If other troubleshooting steps fail, consider professional inspection.
One Tweeter Not Working:
- Individual Wiring: Check the wiring for the non-working tweeter specifically. Look for loose connections or breaks in the wire.
- Amplifier Channel: Hvis du bruger en flerkanals amplifier, test the specific channel outputting to the non-working tweeter.
If these steps do not resolve the issue, it is advisable to consult a professional car audio technician.
Tekniske specifikationer
| Specifikation | Detalje |
|---|---|
| Højttaler type | Tweeter |
| Monteringstype | Coaxial (designed for custom integration) |
| Forbindelsesteknologi | Koaksial |
| Lydudgangstilstand | Stereoanlæg |
| Varens vægt | 3 Ounces (approx. per pair) |
| UPC | 835101620167 |
| ASIN | B00KQ15ALM |
| Fabrikant | Fokal |
Garantioplysninger
The Focal TN-41 tweeters come with a Limited Warranty. Specific terms and conditions of the warranty, including duration and coverage, are provided by the manufacturer, Focal. Please retain your proof of purchase for any warranty claims.
For detailed warranty information, it is recommended to visit the official Focal webwebstedet eller kontakt deres kundesupport direkte.
Støtte
For further assistance, technical inquiries, or support regarding your Focal TN-41 tweeters, please contact Focal customer service or visit their official website. They can provide the most accurate and up-to-date information regarding product specifications, installation guidance, and troubleshooting beyond the scope of this manual.
You can typically find contact information and support resources on the official Focal brand webwebsted.
