Indledning
The Mahr Federal 4334000 1003 Millimess Mechanical Dial Comparator is a precision measuring instrument designed for high accuracy and robustness. This dial comparator is suitable for various measuring tasks where precise dimensional verification is required. Its design incorporates jeweled bearings for levers, gears, and pinions, and a ball bush guide for the measuring spindle, ensuring maximum accuracy and minimal reversal span error.

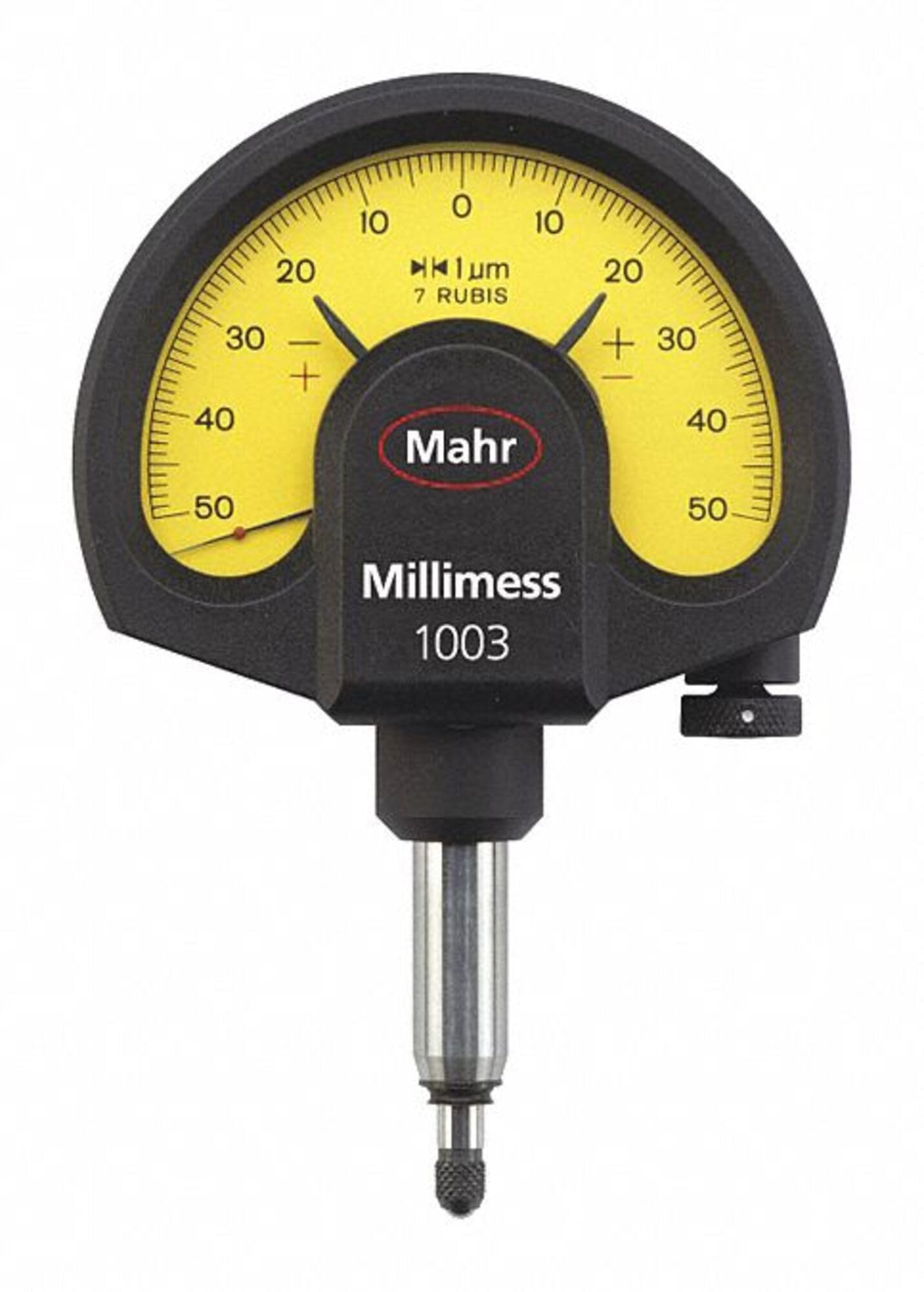

Image: Mahr Federal 4334000 1003 Millimess Mechanical Dial Comparator. This image displays the front view of the mechanical dial comparator, highlighting its yellow dial with measurement markings, the Mahr brand logo, and the Millimess 1003 model designation. The measuring spindle is visible at the bottom.
Opsætning
Proper setup is crucial for accurate measurements. Follow these steps to prepare your Millimess Dial Comparator for use:
- Montering: Securely mount the comparator using its stainless steel mounting shank. Ensure the mounting is rigid and free from vibrations that could affect measurement accuracy.
- Nulstilling: Utilize the lockable fine adjustment screw to set the comparator to zero. This establishes the reference point for your measurements.
- Adjusting Tolerance Markers: If required, adjust the tolerance markers on the dial. These markers assist in quickly identifying whether a measurement falls within specified limits.
Betjeningsvejledning
The Millimess Dial Comparator is designed for straightforward operation, providing reliable and precise readings.
- Spindle Retraction: The measuring spindle can be retracted using either a screw-in cable release or a lifting knob. This allows for easy positioning of the workpiece without damaging the measuring tip.
- Måling: Carefully position the workpiece under the measuring spindle. Allow the spindle to gently contact the surface. The dial indicator will display the deviation from the set zero point.
- Reading the Dial: The dial is designed for easy reading, even with multi-revolution indicators, to minimize reading errors. Observe the needle's position relative to the numerical scale and any set tolerance markers.
- Nøjagtighed: The jeweled movement, combined with precision gears and pinions, ensures maximum sensitivity and accuracy during operation. The design also makes the instrument insensitive to lateral forces acting on the measuring spindle.
Opretholdelse
To ensure the longevity and continued accuracy of your Mahr Federal Millimess Dial Comparator, adhere to the following maintenance guidelines:
- Rensning: Regularly clean the instrument with a soft, lint-free cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or internal components.
- Opbevaring: Store the comparator in its protective case when not in use. Keep it in a dry, dust-free environment with stable temperature and humidity.
- Håndtering: Although robust, precision instruments should always be handled with care. Avoid dropping or subjecting the comparator to excessive shock.
- Kalibrering: For critical applications, periodic calibration by a qualified technician is recommended to maintain certified accuracy.
Fejlfinding
Should you encounter any issues with your Mahr Federal Millimess Dial Comparator, consider the following:
- Upræcise læsninger: Verify that the instrument is properly zeroed and that the workpiece is stable. Check for any debris on the measuring tip or spindle.
- Sticking Spindle: Ensure the spindle is clean and free from obstructions. Avoid applying excessive lateral force during measurement.
- Fysisk skade: If the instrument has been dropped or subjected to impact, its accuracy may be compromised. In such cases, professional inspection and repair are recommended.
For persistent problems or issues not covered here, please contact Mahr Federal customer support.
Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Mahr |
| Modelnummer | 4334000 (1003) |
| Måleområde | ±50 µm |
| Opløsning | 1 µm |
| Stilk diameter | 8 mm |
| Fabrikant | Mahr |
| Pakkedimensioner | 5.83 x 3.98 x 1.5 tommer |
| Varens vægt | 8 ounce |
Garanti og support
For detailed warranty information regarding your Mahr Federal 4334000 1003 Millimess Mechanical Dial Comparator, please refer to the documentation provided with your purchase or visit the official Mahr webwebsted.
Should you require technical assistance, spare parts, or service, please contact Mahr Federal customer support directly. Their contact information can typically be found on the manufacturer's webwebsted eller i produktemballagen.
