1. Vigtige sikkerhedsoplysninger
Please read and understand this entire manual before attempting to assemble, operate, or install this product. Failure to do so could result in fire, electric shock, or serious personal injury.
- Sæt altid varmeapparater direkte i en stikkontakt/stikkontakt. Brug aldrig med en forlængerledning eller flytbar el-hane (stikkontakt/stikdåse).
- Denne varmelegeme er varm, når den er i brug. For at undgå forbrændinger må ikke bar hud røre ved varme overflader. Hold brændbare materialer, såsom møbler, puder, sengetøj, papirer, tøj og gardiner mindst 3 m fra varmelegemets forside, og hold dem væk fra siderne og bagfra.
- Ekstrem forsigtighed er nødvendig, når et varmeapparat bruges af eller i nærheden af børn eller handicappede, og når varmeapparatet efterlades i drift og uden opsyn.
- Brug ikke varmeapparater med en beskadiget ledning eller stik, eller efter at varmeapparatet ikke fungerer korrekt, er blevet tabt eller beskadiget på nogen måde.
- Før ikke ledningen under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområdet, og hvor den ikke vil blive snublet over.
- For at afbryde varmeapparatet skal du slukke for knapperne og derefter tage stikket ud af stikkontakten.
- Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
- Brug kun denne varmeovn som beskrevet i denne vejledning. Enhver anden brug, som ikke anbefales af producenten, kan forårsage brand, elektrisk stød eller personskade.
2. Produktet er slutview
The Duraflame Electric Log Set Heater provides the ambiance of a traditional fire with the convenience of an electric heater. It features realistic logs and a dancing flame effect, designed to fit into existing fireplaces. This unit offers supplemental heating for areas up to 400 square feet.
Image: Duraflame Electric Log Set Heater with its remote control.
Image: The electric log set heater placed inside a traditional fireplace opening in a living room setting.
Billede: Side view of the electric log set heater, showcasing the faux logs and grate design.
Billede: Bagside view of the electric log set heater, displaying the product label with model number DFI021ARU and electrical specifications.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes.
- Electric Log Set Heater Unit
- Remote control (with 2 AAA batteries included)
- Brugermanual
4. Opsætning og installation
The Duraflame Electric Log Set Heater is designed for easy installation and comes fully assembled. No special construction, vents, or gas lines are required.
- Placering: Place the log set heater into an existing fireplace hearth. Ensure the fireplace opening is large enough to accommodate the unit's dimensions (20.5" W x 8.6" D x 12" H).
- Strømtilslutning: Plug the unit directly into a standard 120V AC wall outlet. Do not use extension cords or power strips.
- Klarering: Maintain a minimum clearance of 3 feet (0.9 meters) from combustible materials around the front, sides, and rear of the unit.
5. Betjeningsvejledning
The electric log set can be operated using the controls on the unit or the included remote control.
Enhedskontrol

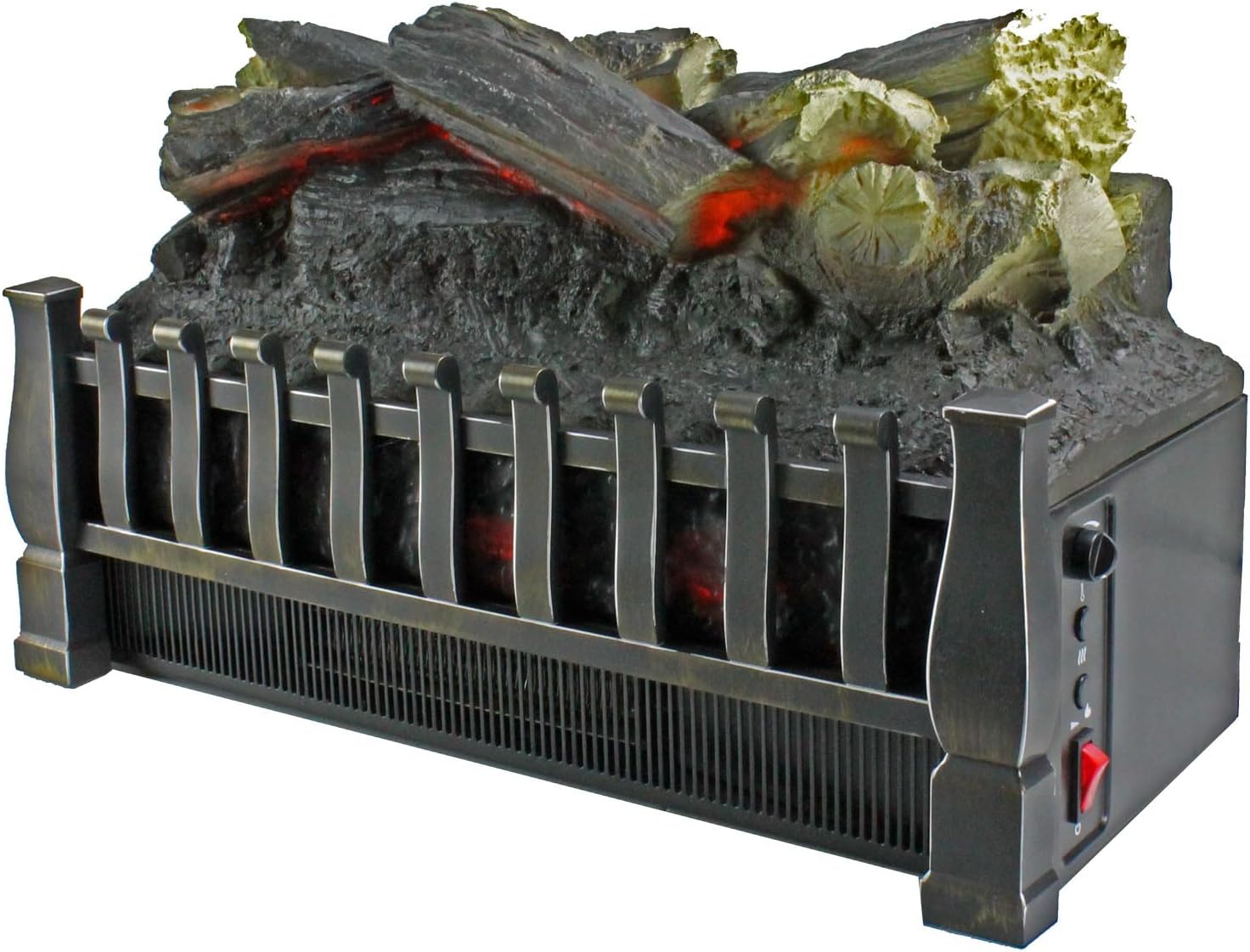

Billede: Side view of the electric log set heater, highlighting the control panel on the right side.
- Afbryderen: Located on the side of the unit, this switch turns the entire unit on or off.
- Termostatskive: Justerer den ønskede rumtemperatur. Varmeapparatet tænder og slukker for at opretholde denne indstilling.
- Flammelysstyrkekontrol: Justerer flammeeffektens intensitet.
Betjening af fjernbetjening

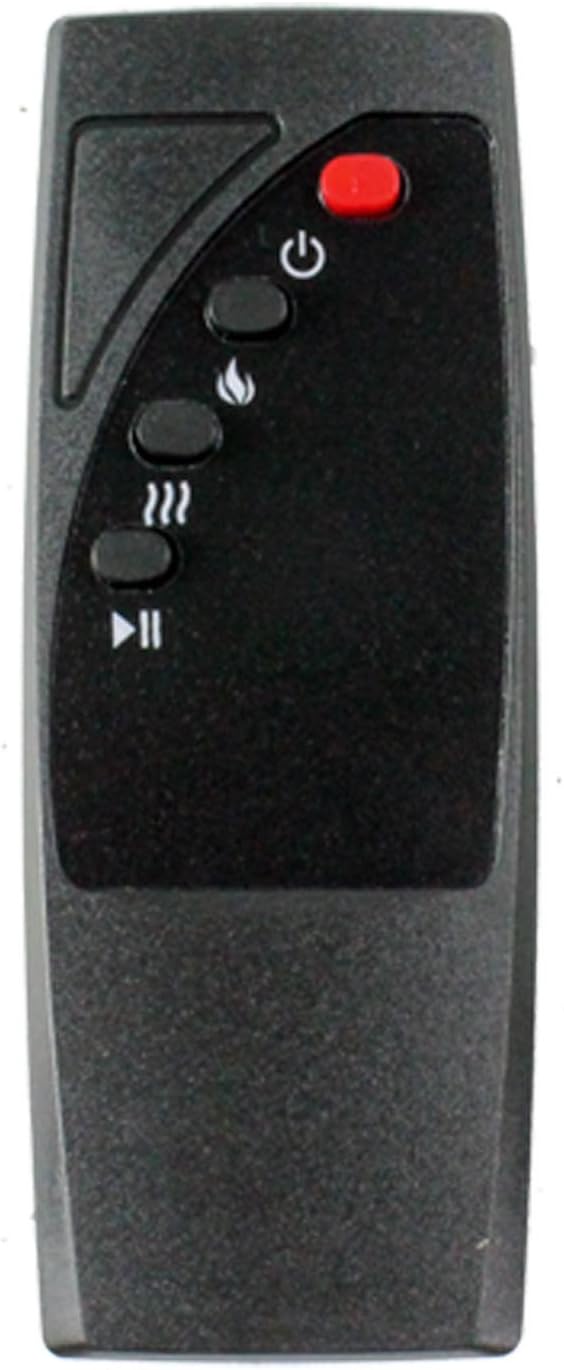

Image: The remote control for the Duraflame Electric Log Set Heater, showing power, flame, heat, and timer buttons.
The remote control allows convenient adjustment of various functions from a distance.
- Tænd/sluk-knap (rød knap): Tænder eller slukker for enheden.
- Flame Button (flamme ikon): Adjusts the flame speed and brightness.
- Varmeknap (tre bølgede linjer): Activates or deactivates the heating function. The thermostat on the unit must be set for the heater to operate.
- Timer-knap (play/pause icon): Indstiller en timer til automatisk slukning.
Year-Round Ambiance: The flame effect can be operated independently of the heating function. This allows you to enjoy the visual appeal of a fire without generating heat, suitable for any season.
6. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your electric log set heater.
- Rensning: Always disconnect the power before cleaning. Use a soft, damp klud til at tørre de udvendige overflader af. Brug ikke slibende rengøringsmidler eller spray.
- Ventilationsåbninger: Keep the air intake and exhaust vents clear of dust and debris. Use a vacuum cleaner with a brush attachment to gently clean these areas periodically.
- Logsæt: The faux logs do not require special cleaning. If dust accumulates, gently wipe with a dry cloth.
- Opbevaring: If storing the unit for an extended period, unplug it and store in a dry, dust-free location.
7. Fejlfinding
Se følgende tabel for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strøm til enheden. | Ensure the unit is plugged into a working 120V outlet. Check the main power switch on the unit. Reset the circuit breaker if tripped. |
| Ingen varmeafgivelse. | Thermostat set too low; Heat function off. | Increase the thermostat setting on the unit. Ensure the heat button on the remote or unit is activated. |
| Flame effect not visible or dim. | Flame brightness set too low. | Adjust the flame brightness control on the unit or remote. |
| Fjernbetjening virker ikke. | Dead batteries; Obstruction. | Replace the 2 AAA batteries in the remote. Ensure there is no obstruction between the remote and the unit's sensor. |
| Enheden slukker uventet. | Overheating safety feature activated. | Unplug the unit, wait 10-15 minutes for it to cool down. Check for obstructions around the air vents and clean if necessary. Re-plug and restart. |
8. Specifikationer
Detailed technical specifications for the Duraflame Electric Log Set Heater.
Image: Diagram illustrating the dimensions of the electric log set heater, showing a height of 12 inches (30.48 cm).
| Feature | Detalje |
|---|---|
| Modelnavn | duraflame Electric Log Set Heater with Realistic Ember Bed and Logs |
| Modelnummer | DFI021ARU |
| Mærke | Duraflame |
| Strømkilde | Elektrisk med ledning |
| Produktdimensioner | 8.66" D x 20.5" B x 12" H |
| Materiale | Electronic, Glass, Metal, Plastic |
| Varmeoutput | 4600 britiske termiske enheder |
| Varmedækning | 400 kvm |
| Installationstype | Indsæt |
| Særlige funktioner | Adjustable Thermostat, Energy-saving LED technology, Flame Effect |
| Inkluderede komponenter | Electric Log Set Heater Unit, Remote control with 2 AAA batteries, and Manual |
| Varens vægt | 12.1 pund |
| UPC | 611768085071 |
9. Garantioplysninger
This Duraflame Electric Log Set Heater is covered by a 1 års begrænset producentgarantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.
For specific details regarding warranty coverage and how to make a claim, refer to the warranty documentation included with your product or contact customer support.
10. Kundesupport
If you have any questions, require assistance, or need to report an issue with your Duraflame Electric Log Set Heater, please contact the manufacturer's customer support.
- Fabrikant: Twin-Star International, Inc.
- Online support: Visit the official Duraflame Electric store for FAQs and additional resources: Duraflame Electric Store
