Indledning
This manual provides essential instructions for the proper use, care, and maintenance of your 3M 07183 Half Facepiece Respirator. Read all instructions carefully before use to ensure maximum protection and product longevity. Failure to follow these instructions may result in serious injury or illness.
The 3M 07183 Half Facepiece Respirator is designed to help provide respiratory protection against certain airborne particulates when used with approved 3M filters or cartridges. It is crucial to select the correct filters/cartridges for the specific hazards present in your work environment.
Sikkerhedsoplysninger
ADVARSEL: This respirator does not supply oxygen. Use only in adequately ventilated areas containing sufficient oxygen. Do not use in atmospheres containing less than 19.5% oxygen.
FORSIGTIGHED: Do not use this respirator for protection against unknown concentrations of contaminants or in atmospheres that are immediately dangerous to life or health (IDLH).
Always consult local regulations and occupational safety guidelines for proper respirator selection and use. A complete respiratory protection program, including training, fit testing, and medical evaluation, is required by OSHA 29 CFR 1910.134 and other applicable standards.
Komponenter overview
The 3M 07183 Half Facepiece Respirator consists of the following main components:
- Facepiece body (silicone or thermoplastic elastomer)
- Head harness (adjustable straps)
- Udåndingsventil
- Inhalation valves
- Filter/cartridge attachment points (bayonet connection)

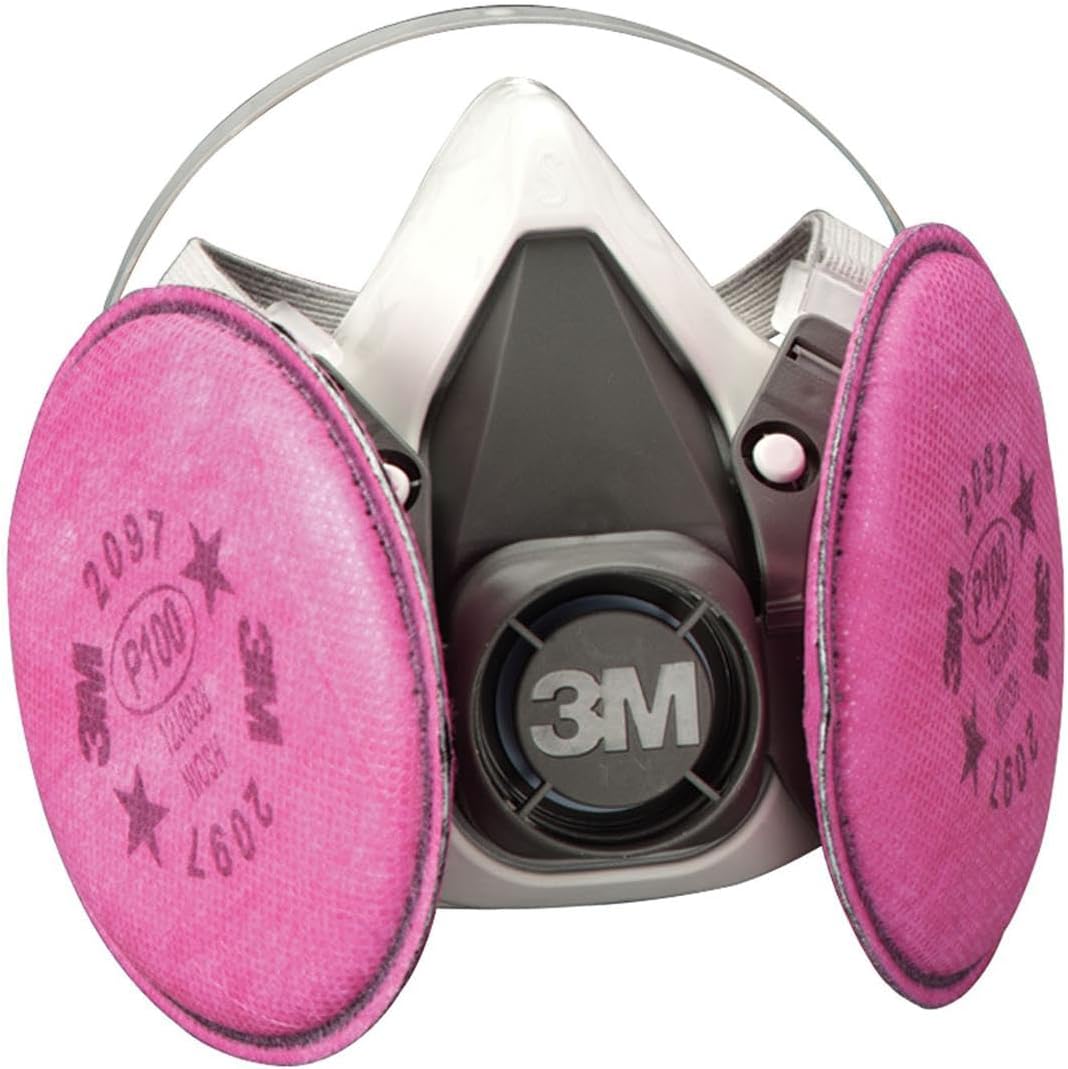

Billede: Forside view of the 3M 07183 Half Facepiece Respirator with two pink P100 particulate filters attached. The 3M logo is visible on the central exhalation valve cover.
Opsætning og montering
- Efterse komponenter: Before each use, inspect the facepiece, head harness, valves, and any attached filters/cartridges for signs of damage, cracks, tears, or missing parts. Do not use if damaged.
- Attach Filters/Cartridges: Align the bayonet fitting of the filter or cartridge with the receptacle on the facepiece. Push together and twist clockwise until it clicks into place. Ensure both filters/cartridges are securely attached.
- Adjust Head Harness: Loosen the head harness straps.
Billede: Side view of the 3M 07183 Half Facepiece Respirator, showing the profile of the facepiece and the attached P100 filters. The head harness straps are visible.
Betjeningsvejledning
- Donning the Respirator:
- Place the respirator over your mouth and nose.
- Pull the head harness over your head.
- Position the top strap high on the crown of your head.
- Fasten the neck straps and adjust all straps evenly until the respirator is snug but comfortable. Do not overtighten.
- Performing a User Seal Check:
- Positivt trykkontrol: Close off the exhalation valve by placing the palm of your hand over the valve cover. Exhale gently. If the facepiece bulges slightly and no air leaks around the face seal, a positive pressure seal has been achieved.
- Negativt trykkontrol: Close off the inlets of the filters/cartridges by placing the palms of your hands over them. Inhale gently. If the facepiece collapses slightly and no air leaks around the face seal, a negative pressure seal has been achieved.
If you detect any air leakage during either check, readjust the respirator and repeat the seal check. If you cannot achieve a proper seal, do not enter the contaminated area.
- Under brug: If you smell or taste contaminants, or experience dizziness, irritation, or other distress, immediately leave the contaminated area and replace the filters/cartridges or respirator.
Vedligeholdelse og opbevaring
- Rensning: After each use, remove filters/cartridges. Wash the facepiece in warm water with a mild detergent. Do not use solvents. Rinse thoroughly with clean water.
- Desinfektion: Immerse the facepiece in a solution of quaternary ammonium disinfectant or a solution of sodium hypochlorite (chlorine bleach) as per manufacturer's instructions. Rinse thoroughly.
- Tørring: Air dry the facepiece in a clean, non-contaminated area. Do not dry in direct sunlight or with heat.
- Opbevaring: Store the clean, dry respirator and filters/cartridges in a sealed bag or container away from contaminated areas, extreme temperatures, and direct sunlight.
- Filter/Cartridge Replacement: Replace filters/cartridges according to your company's change-out schedule or immediately if breathing becomes difficult, or if you detect taste, smell, or irritation from contaminants.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Air leakage around face seal | Improper fit, damaged facepiece, incorrect size | Readjust straps, perform user seal check. If problem persists, inspect for damage or consider a different size/model. |
| Åndedrætsbesvær | Clogged filters/cartridges | Replace filters/cartridges. |
| Smell or taste of contaminant | Filters/cartridges saturated or incorrect type | Immediately leave contaminated area. Replace filters/cartridges. Ensure correct type for hazard. |
Specifikationer
- Modelnummer: 07183
- Type: Halvt ansigtsmaske genanvendelig åndedrætsværn
- Materiale: Silicone or Thermoplastic Elastomer (facepiece)
- Forbindelsestype: Bajonet
- Vægt: Approximately 3.2 ounces (without filters/cartridges)
- Dimensioner: 7.1 x 6.4 x 5 tommer (omtrentlige produktmål)
- Kompatibilitet: Compatible with a wide range of 3M filters and cartridges (e.g., 2000, 2200, 6000, 7093 series)
Garanti og support
For warranty information and technical support, please refer to the official 3M website or contact 3M customer service directly. Keep your purchase receipt as proof of purchase.
3M Officiel Webwebsted: www.3m.com
Kundeservice: Se 3M webhjemmeside for regionale kontaktoplysninger.
Ansvarsfraskrivelse
This instruction manual is intended to provide general guidance. It is not a substitute for professional training, fit testing, or medical evaluation required by regulatory standards. The user is responsible for ensuring proper selection, use, and maintenance of the respirator in accordance with all applicable laws and regulations.
