Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Millennium 5422-SN Two Light Vanity fixture. This fixture is part of the Neo-Industrial collection, featuring a satin nickel finish and designed for vanity lighting applications. Please read this manual thoroughly before beginning installation to ensure safe and proper use.
Sikkerhedsoplysninger
ADVARSEL: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). If you are unfamiliar with proper electrical wiring connections, obtain the services of a qualified electrician.
- Tilslut ikke denne armatur til et ujordet elektrisk system.
- Brug ikke pærer, der overstiger den maksimale watttage specified (100 watts per socket).
- Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.
- This fixture is rated for Damp locations. Do not install in areas subject to direct water spray.
- Bær altid sikkerhedsbriller under installationen.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Millennium 5422-SN Two Light Vanity Fixture (1)
- Monteringssæt (inkluderer monteringsplade, skruer, møtrikker)
- Installationsvejledning (denne vejledning)

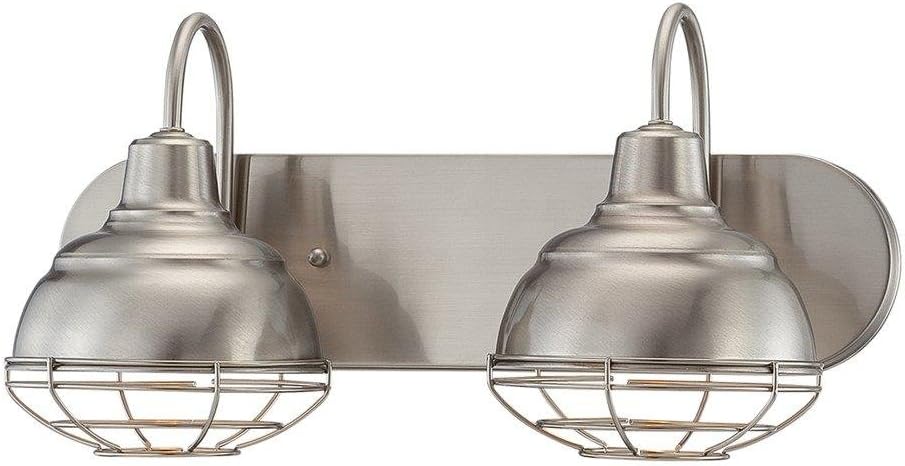

Image: The Millennium 5422-SN Two Light Vanity Fixture, showcasing its satin nickel finish and industrial-inspired design with two caged light shades.
Opsætning og installation
- Sluk for strømmen: Locate the circuit breaker or fuse box that supplies power to the light fixture location. Turn off the power completely.
- Forbered monteringsoverfladen: Ensure the wall surface is clean, dry, and structurally sound for wall mounting.
- Installer monteringsplade: Fastgør monteringspladen til samledåsen med de medfølgende skruer. Sørg for, at den er forsvarligt fastgjort.
- Foretag elektriske forbindelser:
- Connect the fixture's black wire to the house's black (hot) wire using a wire nut.
- Connect the fixture's white wire to the house's white (neutral) wire using a wire nut.
- Connect the fixture's ground wire to the house's ground wire (bare copper or green) and to the mounting plate's ground screw.
Note: If your house wiring does not include a ground wire, consult a qualified electrician.
- Monteringsbeslag: Carefully tuck all wires into the junction box. Align the fixture's base with the mounting plate and secure it with the decorative nuts or screws provided.
- Installer pærer: Insert two standard incandescent or LED bulbs (not included) into the sockets. Do not exceed 100 watts per bulb.
- Gendan strøm: Tænd for strømmen igen ved afbryderen eller sikringsboksen.
Betjeningsvejledning
The Millennium 5422-SN Two Light Vanity fixture operates via a standard wall switch (toggle or push button, depending on your home's wiring). Simply flip the switch to turn the light on or off.
Opretholdelse
To maintain the appearance and functionality of your vanity light fixture:
- Rensning: Always turn off the power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Udskiftning af pære: Ensure the power is off and the bulbs have cooled before replacing. Use only bulbs that meet the specified wattage og type.
- Inspektion: Periodically check for loose connections or damaged wiring. If any issues are found, disconnect power and consult a qualified electrician.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | No power to fixture; Loose wire connection; Faulty bulb; Tripped circuit breaker. | Check power supply at breaker/fuse box; Verify all wire connections are secure; Replace bulb; Reset circuit breaker. |
| Lyse flimrer | Loose bulb; Loose wire connection; Incompatible dimmer switch (if applicable). | Tighten bulb; Check wire connections; Ensure dimmer switch is compatible with bulb type. |
| Pærer brænder hurtigt ud | Forkert pære wattage; Voltage udsving. | Ensure bulbs do not exceed 100 watts; Consult an electrician if voltage-problemerne fortsætter. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Millennium |
| Modelnummer | 5422-SN |
| Dimensioner (L x B x H) | 1 x 18 x 9 tommer |
| Varens vægt | 4.69 pund |
| Materiale | Plastic, Metal, Glass |
| Finish Type | Satin nikkel |
| Antal lyskilder | 2 |
| Voltage | 120 volt |
| Max Wattage pr. pære | 100 watt |
| Monteringstype | Vægmontering |
| Sikkerhedsvurdering | UL Listed, Damp Placering vurderet |
Garanti og support
This Millennium 5422-SN Two Light Vanity fixture comes with a manufacturer's warranty. For specific details regarding warranty coverage and duration, please refer to the warranty information provided with your purchase or visit the official Millennium Lighting webwebsted.
For technical support, replacement parts, or any inquiries not covered in this manual, please contact Millennium Lighting customer service. Contact information can typically be found on the manufacturer's webwebstedet eller på produktemballagen.
