APC Back-UPS CS 500VA Brugermanual

Indledning

This manual provides essential information for the safe and efficient operation of your APC Back-UPS CS 500VA (Model BK500). This Uninterruptible Power Supply (UPS) is designed to protect your electronic equipment from power outages, surges, and spikes. Please read this manual thoroughly before installation and use.

Sikkerhedsoplysninger

Observe the following safety precautions to prevent injury and damage to the UPS or connected equipment.

• This UPS contains a battery that can present a risk of electrical shock and high short circuit current.
• Service af batterier bør udføres eller overvåges af personale, der har kendskab til batterier og de nødvendige forholdsregler.
• Bortskaf ikke batterier i åben ild. Batterierne kan eksplodere.
• Batterier må ikke åbnes eller ødelægges. Frigivet elektrolyt er skadelig for hud og øjne. Det kan være giftigt.
• UPS'en skal være tilsluttet en jordet vekselstrømsstikkontakt.
• Brug ikke UPS'en i direkte sollys, i kontakt med væsker eller hvor der er meget støv eller fugtighed.
• Ensure adequate ventilation around the UPS.

Pakkens indhold

Verify that all items are present upon unpacking.

• APC Back-UPS CS 500VA Unit
• Software CD
• USB kabel
• Remme til ledningshåndtering

Produkt overview

The APC Back-UPS CS 500VA provides battery backup and surge protection for your electronic devices.

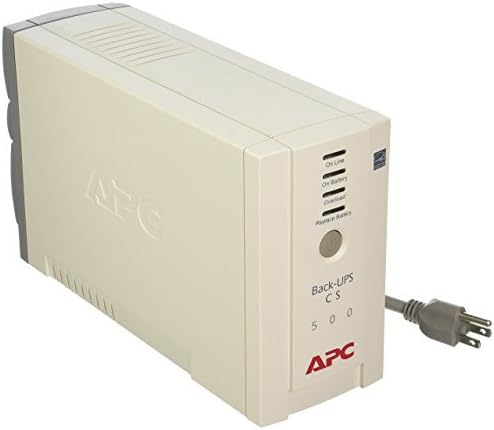

Figur 1: Front view of the APC Back-UPS CS 500VA. This image displays the front panel of the UPS, highlighting the power button and the status indicator lights for "On Line", "On Battery", "Overload", and "Replace Battery".

Figur 2: Bag view of the APC Back-UPS CS 500VA. This image shows the back of the UPS, detailing the arrangement of the six power outlets (three battery backup and surge protected, three surge only) and the USB communication port.

Indikatorer på frontpanelet:

• On Line: Illuminates when the UPS is supplying conditioned utility power to connected equipment.
• På batteri: Illuminates when the UPS is supplying battery power to connected equipment during a power outage or brownout.
• Overbelaste: Illuminates when connected equipment exceeds the UPS's capacity.
• Udskift batteri: Illuminates when the battery needs to be replaced.

Opsætning

1. Placering:

Place the Back-UPS in a location that protects it from excessive dust, temperature, and humidity. Avoid placing it near heat sources or in direct sunlight. Ensure adequate airflow around the unit.

2. Tilslutning til strøm:

1. Sørg for, at UPS'en er slukket.
2. Plug the UPS power cord directly into a grounded 110V AC wall outlet. Do not use extension cords or surge protectors.

3. Connecting Equipment:

The Back-UPS CS 500VA has six outlets.

• Batteribackup- og overspændingsbeskyttede stikkontakter (3 stikkontakter): Connect critical equipment such as your computer, monitor, and external hard drives to these outlets. These devices will receive power from the battery during an outage.
• Kun overspændingsudtag (3 udtag): Connect non-critical equipment such as printers, scanners, or speakers to these outlets. These devices are protected from surges but will not receive battery power during an outage.

4. Første batteriopladning:

Allow the Back-UPS to charge for at least 8 hours before connecting any equipment. This ensures maximum battery runtime. The unit will charge whether it is turned on or off, as long as it is connected to utility power.

Operation

Tænd/sluk:

• At tænde: Press the power button firmly until you hear a short beep. The "On Line" indicator will illuminate.
• At slukke: Press the power button firmly until you hear a long beep. All indicators will turn off.

Understanding Indicators:

Refer to the "Product Overview" section for a description of each indicator light.

Batteritid:

The Back-UPS CS 500VA provides approximately 3 minutes of standby power at full load (300W). Runtime will vary based on the connected load.

Selv test:

The UPS performs an automatic self-test periodically. You can also initiate a manual self-test by briefly pressing the power button while the unit is online. The UPS will switch to battery power for a few seconds and then return to utility power.

Opretholdelse

Udskiftning af batteri:

The battery in your Back-UPS is a sealed lead-acid battery and is not user-serviceable beyond replacement. When the "Replace Battery" indicator illuminates, the battery needs to be replaced. Contact APC support or an authorized service center for replacement battery information.

Note: After replacing the battery, allow the new battery to charge for 8 hours to ensure full capacity.

Rensning:

Clean the exterior of the UPS with a soft, dry cloth. Do not use liquid or aerosol cleaners.

Opbevaring:

If storing the UPS for an extended period, charge the battery every three months to prevent battery degradation. Store in a cool, dry place.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the documentation included with your product or visit the official APC webwebsted.

APC-embedsmand Webwebsted: www.apc.com
