DeVilbiss 250 Cc Kop/Indskydbar låg (model 803609) Brugsanvisning

Indledning

This manual provides essential instructions for the proper use, installation, and maintenance of your DeVilbiss 250 Cc Cup with Push-in Lid, Model 803609. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

Sikkerhedsoplysninger

Always observe general safety precautions when working with spray equipment and related accessories. Failure to follow these instructions may result in property damage or personal injury.

• Ensure the cup is securely attached to the spray gun before filling or operating.
• Do not overfill the cup.
• Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling paints and solvents.
• Clean the cup thoroughly after each use to prevent material buildup and ensure proper function.
• Store the cup in a clean, dry place away from direct sunlight and extreme temperatures.

Pakkens indhold

Kontroller, at alle genstande er til stede ved udpakning:

• 1 x DeVilbiss 250 Cc Cup
• 1 x Push-in Lid

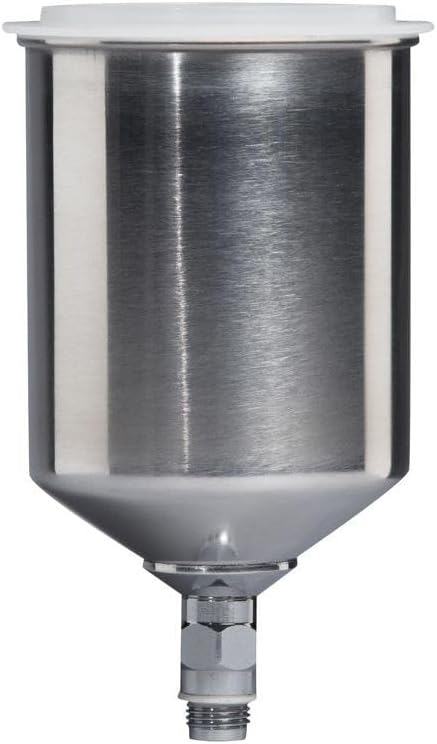

Image: DeVilbiss 250 Cc Cup with Push-in Lid. This image displays the stainless steel cup with its white push-in lid and the threaded connection at the bottom.

Opsætning

1. Efterse komponenter: Before first use, inspect the cup and lid for any damage or manufacturing defects.
2. Ren: Wash the cup and lid with a suitable cleaning solution to remove any manufacturing residues. Rinse thoroughly and dry.
3. Fastgør til sprøjtepistol: Carefully thread the cup onto the compatible spray gun. Ensure a snug fit to prevent leaks. Note: Verify thread compatibility with your specific spray gun model. This cup features an 11mm by 1mm thread, commonly found on DeVilbiss Starting Line and some Finish Line detail guns.
4. Sikkert låg: Place the push-in lid firmly onto the cup opening.

Billede: Bund view of the DeVilbiss 250 Cc Cup. This image shows the threaded connection point at the base of the cup, which attaches to the spray gun.

Betjeningsvejledning

1. Fyld koppen: With the cup securely attached to the spray gun, carefully pour the desired paint or coating material into the cup. Do not fill beyond the recommended capacity (250 Cc).
2. Sikkert låg: Ensure the push-in lid is firmly seated to prevent spills and maintain proper pressure during spraying.
3. Sprøjtepåføring: Operate the spray gun according to its specific instructions. The cup will feed the material to the gun.
4. Monitor Material Level: Periodically check the material level in the cup to avoid running dry during operation.

Opretholdelse

Regular cleaning and proper maintenance will extend the life of your DeVilbiss 250 Cc Cup.

1. Empty Remaining Material: After each use, empty any remaining paint or coating material from the cup.
2. Skille ad: Carefully detach the cup from the spray gun. Remove the push-in lid.
3. Rengør grundigt: Wash the cup and lid immediately with an appropriate cleaning solvent for the material used. Use a brush if necessary to remove stubborn residues.
4. Skyl og tør: Rinse all components with clean water (if compatible with solvent) and allow them to air dry completely before reassembly or storage.
5. Inspicere: Regularly inspect the cup and lid for wear, cracks, or damage. Replace components as needed.

Fejlfinding

Specifikationer

Garanti og support

For warranty information or technical support regarding your DeVilbiss 250 Cc Cup/Push-in Lid (Model 803609), please refer to the official DeVilbiss webwebstedet eller kontakt deres kundeserviceafdeling. Behold din købskvittering som købsbevis.

For yderligere hjælp, besøg: www.devilbiss.com
