TCP LED17BR40D41K BR40 LED pære brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient use of your TCP LED17BR40D41K BR40 LED Bulb. This 17-watt LED bulb is designed to replace traditional 120-watt incandescent BR40 lamps, offering significant energy savings. It features a 4100K cool white color temperature, 1300 lumens brightness, and is fully dimmable. The bulb is suitable for various lighting applications, including recessed, display, and track lighting, and is UL listed for use in damp environments, both indoors and outdoors.

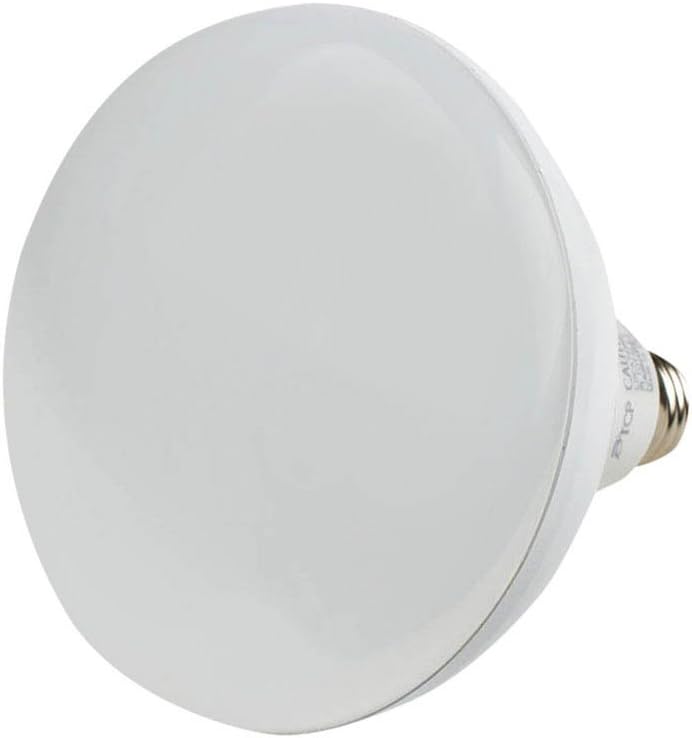

Figur 1: Forside view of the TCP LED17BR40D41K BR40 LED Bulb, showcasing its frosted dome and reflector shape.

2. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner, før du installerer eller bruger dette produkt. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller andre farer.

• Sluk for strømmen: Always disconnect power to the fixture at the circuit breaker or fuse box before installation, removal, or inspection.
• Korrekt installation: Ensure the bulb is securely screwed into a compatible E26 base socket.
• Dimmable Use: This bulb is dimmable. Use only with dimmers specifically designed for LED lamps to avoid flickering or damage. Consult your dimmer manufacturer for compatibility.
• Miljømæssig egnethed: This bulb is UL listed for damp locations, making it suitable for use in humid indoor and outdoor environments. Do not expose to direct water spray.
• Armaturkompatibilitet: The lightweight design of this lamp is intended to prevent damage to fixtures. Ensure your fixture is rated for the bulb's weight and dimensions.
• Varmeafledning: While LED bulbs generate less heat than incandescent bulbs, ensure adequate ventilation around the bulb. Avoid use in totally enclosed fixtures unless specifically rated for such use, as excessive heat can shorten bulb life.
• Bortskaffelse: Dispose of LED bulbs according to local regulations. Do not dispose of with general household waste.

3. Produktfunktioner

The TCP LED17BR40D41K BR40 LED Bulb offers advanced lighting technology with several key features:

• Energieffektivitet: Consumes only 17 watts while providing light output equivalent to a 120-watt incandescent bulb, resulting in up to 85% energy savings.
• Dimmable Performance: Provides smooth, uniform dimming from 100% down to 0.5% of full brightness, allowing for adjustable lighting moods.
• Farvetemperatur: Emits a 4100K cool white light, ideal for task lighting and environments where a crisp, clear illumination is desired.
• Høj lysstyrke: Leverer 1300 lumen lysudbytte.
• Forlænget levetid: Engineered for a long operational life of 25,000 hours, reducing the frequency of bulb replacements.
• Damp Placering bedømt: UL approved for use in damp locations, suitable for both indoor and outdoor applications where moisture may be present.
• Standard base: Features a standard E26 screw-in base for easy installation in most common fixtures.
• Consistent Color: Maintains consistent color within 3 MacAdam ellipse tolerance throughout its lifespan.

Figur 2: Side view of the TCP LED17BR40D41K BR40 LED Bulb, highlighting the standard E26 screw base and product labeling.

4. Opsætning og installation

Follow these steps to properly install your TCP LED17BR40D41K BR40 LED Bulb:

1. Bekræft slukning: Before beginning installation, ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
2. Fjern gammel pære: Skru forsigtigt den eksisterende pære ud af armaturet. Lad den køle af, hvis den har været i brug for nylig.
3. Inspekter armatur: Kontroller armaturet for skader eller slitage. Sørg for, at stikkontakten er ren og fri for snavs.
4. Installer ny pære: Gently screw the TCP LED17BR40D41K LED bulb into the E26 base socket. Turn clockwise until it is finger-tight. Do not overtighten.
5. Gendan strøm: Once the bulb is securely installed, restore power to the fixture at the circuit breaker or wall switch.
6. Test drift: Tænd lyskontakten for at bekræfte, at pæren fungerer korrekt.

Figur 3: Vinklet front view of the TCP LED17BR40D41K BR40 LED Bulb, illustrating its overall form factor.

5. Betjening

Operating your TCP LED17BR40D41K BR40 LED Bulb is straightforward:

• Standard On/Off: Use your existing wall switch to turn the light on and off.
• Dæmpningsfunktion: If connected to a compatible LED dimmer switch, adjust the dimmer control to achieve your desired brightness level. The bulb supports smooth dimming from 100% to 0.5%.
• Lysoutput: The bulb provides a consistent 4100K cool white light, suitable for various environments requiring bright, clear illumination.

6. Vedligeholdelse

The TCP LED17BR40D41K BR40 LED Bulb requires minimal maintenance due to its long lifespan and durable design.

• Rensning: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb with a soft, dry, lint-free cloth. Do not use liquid cleaners or abrasive materials, as these can damage the bulb's surface or internal components.
• Ingen dele, der kan serviceres af brugeren: This LED bulb contains no user-serviceable parts. Do not attempt to open or repair the bulb.
• Udskiftning: With an average life of 25,000 hours, frequent replacement is not anticipated. Replace the bulb when its light output significantly diminishes or it ceases to function.

7. Fejlfinding

If you encounter issues with your TCP LED17BR40D41K BR40 LED Bulb, refer to the following troubleshooting guide:

• Pæren lyser ikke:
  • Sørg for, at tænd/sluk-knappen er i 'ON'-positionen.
  • Kontroller, om afbryderen er udløst.
  • Verify the bulb is securely screwed into the socket.
  • Test the bulb in another working fixture to rule out a fixture issue.
• Pære flimrer eller brummer:
  • Ensure you are using an LED-compatible dimmer switch. Incompatible dimmers can cause flickering or buzzing.
  • Kontroller for løse forbindelser i armaturet eller ledningerne.
  • Sørg for, at strømforsyningen er stabil.
• Light Output is Too Low or High:
  • Hvis du bruger en lysdæmper, skal du justere lysdæmperkontrollen til den ønskede lysstyrke.
  • Confirm the bulb's specifications (1300 lumens) match your lighting requirements.

8. Specifikationer

Detailed technical specifications for the TCP LED17BR40D41K BR40 LED Bulb:

9. Garanti og support

For warranty information or technical support regarding your TCP LED17BR40D41K BR40 LED Bulb, please contact TCP customer service directly. Refer to the product packaging or the official TCP webwebstedet for de seneste kontaktoplysninger og garantivilkår.

Fabrikant: TCP

Webwebsted: Visit the TCP Store on Amazon
