1. Introduktion
This manual provides essential information for the safe and effective use of the BAQICK 902818 Replacement Electric Furnace Heating Element. This component is designed as a direct replacement for specific Nordyne, Intertherm, and Miller electric furnace models. Please read this manual thoroughly before installation or operation to ensure proper function and safety.
2. Sikkerhedsoplysninger
ADVARSEL: Electric furnaces operate with high voltage and high temperatures. Improper installation or handling can result in electric shock, fire, property damage, or serious injury. Always prioritize safety.
- Professionel installation anbefales: Installation of this heating element should only be performed by a qualified HVAC technician or a licensed electrician.
- Afbryd strømmen: Always ensure that the main power supply to the furnace is completely disconnected at the circuit breaker before attempting any inspection, installation, or maintenance. Verify with a voltage tester.
- Brug beskyttelsesudstyr: Use appropriate personal protective equipment, including insulated gloves and safety glasses.
- Tjek kompatibilitet: Verify that this replacement part (902818) is compatible with your specific furnace model before installation. Refer to your furnace's original documentation or consult a professional.
- Håndteres med forsigtighed: Heating elements can be fragile. Avoid bending or damaging the coils during handling and installation.
3. Produktet er slutview
The BAQICK 902818 is a 5kW replacement heating element designed for various Nordyne, Intertherm, and Miller electric furnace models. It is manufactured to meet the specifications of the original equipment, ensuring reliable performance.

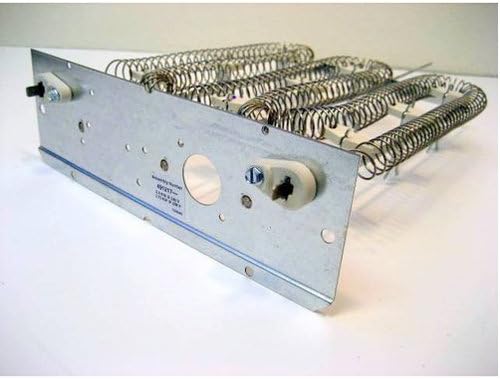

Image 1: BAQICK 902818 Replacement Electric Furnace Heating Element. This image displays the coiled heating wires mounted on a rectangular metal plate, with visible connection points on the left and right sides.
Compatible Furnace Models:
This heating element is compatible with several Nordyne, Intertherm, and Miller Electric Furnace models, including but not limited to:
- E4EB-015H
- E3EB-015H
- E2EB-015HA
- E2EH-015HA
- E1EB-015HA
- E1EH-015HA
- FEHA-015HA
- FEHB-015HA
- FEBB-015HA
- FEHY-015HA
- CME-015HA-03
Erstatter varenumre:
This part replaces the following original equipment manufacturer (OEM) part numbers:
- 239823
- 2398230
- 432731
- 4327310
- 491217
- 4912170
- 631690
- 6316900
4. Opsætning og installation
Installation of a furnace heating element requires specific technical knowledge and adherence to safety protocols. It is strongly recommended that this procedure be carried out by a certified HVAC professional or a qualified electrician.
General Installation Steps (For Qualified Personnel Only):
- Strømafbrydelse: Turn off all power to the furnace at the main electrical panel. Confirm power is off using a voltage meter.
- Access Furnace Compartment: Open the furnace access panel to locate the heating element assembly.
- Dokumentledningsføring: Take clear photos or make a diagram of the existing wiring connections to the old heating element.
- Fjern gammelt element: Carefully disconnect the wiring and mounting hardware securing the old heating element. Remove the old element.
- Installer nyt element: Position the BAQICK 902818 replacement element in the furnace, ensuring it fits correctly. Secure it with the appropriate mounting hardware.
- Tilslut ledninger: Reconnect the electrical wiring to the new element according to your documentation. Ensure all connections are tight and secure.
- Luk rum: Udskift adgangspanelet til ovnen.
- Gendan strøm og test: Restore power to the furnace at the main electrical panel. Test the furnace operation to ensure the new heating element functions correctly. Monitor for any unusual sounds or smells during initial operation.
5. Betjeningsvejledning
Once the BAQICK 902818 heating element is correctly installed by a qualified professional, its operation is integrated into the overall function of your electric furnace. The element will activate automatically when the thermostat calls for heat, providing warmth to your space.
- Ensure your furnace's thermostat is set to the desired temperature.
- The heating element will cycle on and off as needed to maintain the set temperature.
- Refer to your furnace's primary user manual for detailed operating instructions of the complete heating system.
6. Vedligeholdelse
The BAQICK 902818 heating element itself typically requires minimal direct maintenance. However, regular maintenance of the entire furnace system is crucial for its longevity and efficient operation.
- Annual Furnace Inspection: Have your furnace inspected annually by a qualified HVAC technician. They can check the heating elements, wiring, and other components for wear or damage.
- Udskiftning af luftfilter: Regularly replace or clean your furnace's air filter as recommended by the furnace manufacturer. A clogged filter can restrict airflow, causing the heating element to work harder and potentially shorten its lifespan.
- Hold området ryddet: Ensure the area around the furnace is kept clear of obstructions and flammable materials to allow for proper airflow and prevent fire hazards.
7. Fejlfinding
If your furnace is not heating properly after the installation of the new element, consider the following common issues. For complex problems, always consult a qualified HVAC technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Furnace not producing heat | No power to furnace; tripped circuit breaker; faulty thermostat; incorrect wiring; other furnace component failure. | Check circuit breaker and reset if tripped. Verify thermostat settings. Re-check wiring connections (if qualified). Consult a technician for further diagnosis. |
| Weak or insufficient heat | Clogged air filter; restricted airflow; incorrect element installation; other furnace component issues. | Replace or clean air filter. Ensure vents are unobstructed. Verify element installation (if qualified). Consult a technician. |
| Element fails shortly after installation | Improper installation; voltage incompatibility; underlying furnace issue; manufacturing defect. | Contact the installer to review the installation. Verify furnace voltage. Contact the seller for potential warranty claims if a defect is suspected. |
8. Specifikationer
- Varenummer: 902818
- Effektværdi: 5 kW
- Produktdimensioner: Cirka 6 x 6 x 6 tommer
- Varens vægt: Cirka 2.56 pund
- Kompatibilitet: Designed for specific Nordyne, Intertherm, and Miller Electric Furnace models.
- Erstatter: 239823, 2398230, 432731, 4327310, 491217, 4912170, 631690, 6316900
9. Garantioplysninger
Specific warranty details for the BAQICK 902818 Replacement Electric Furnace Heating Element may vary. Please refer to the product packaging or contact the seller directly for information regarding warranty coverage, terms, and conditions. Keep your proof of purchase for any warranty claims.
10. Kundesupport
For technical assistance, compatibility questions, or support regarding the BAQICK 902818 heating element, please contact the seller or manufacturer. When contacting support, have your furnace model number and the part number (902818) readily available.
For issues related to your furnace's overall operation, it is recommended to contact a certified HVAC technician.
