iHome iDL100 Lightning Dock Triple Charging FM Clockradio med USB-opladning/afspilning Brugsanvisning

1. Introduktion

The iHome iDL100 is a versatile Lightning Dock FM Clock Radio designed to enhance your bedside experience. It features triple charging capabilities, allowing you to charge up to three devices simultaneously via two flexible Lightning docks and a universal USB port. Enjoy waking up or falling asleep to your favorite iPad, iPhone, iPod, a custom playlist, or FM radio. The clock also includes an auto-sync feature for seamless time setting with your iPhone and a 7-5-2 alarm system for flexible scheduling.

2. Produktet er slutview

Figur 1: Forside view of the iHome iDL100 with multiple Apple devices docked and charging.

The iHome iDL100 is designed for convenience and multi-device compatibility. Its sleek design integrates seamlessly into any bedroom or office environment. The top panel features intuitive controls for alarm settings, radio functions, and display adjustments.

Figur 2: Side view highlighting the dual Lightning docks and overall compact design.

Nøglefunktioner omfatter:

• Dual flexible Lightning docks for iPhone/iPad/iPod.
• One universal USB port for additional device charging.
• FM radio with programmable presets.
• Dual alarms with 7-5-2 scheduling.
• Auto-sync time with docked iPhone.
• Adjustable display dimmer.

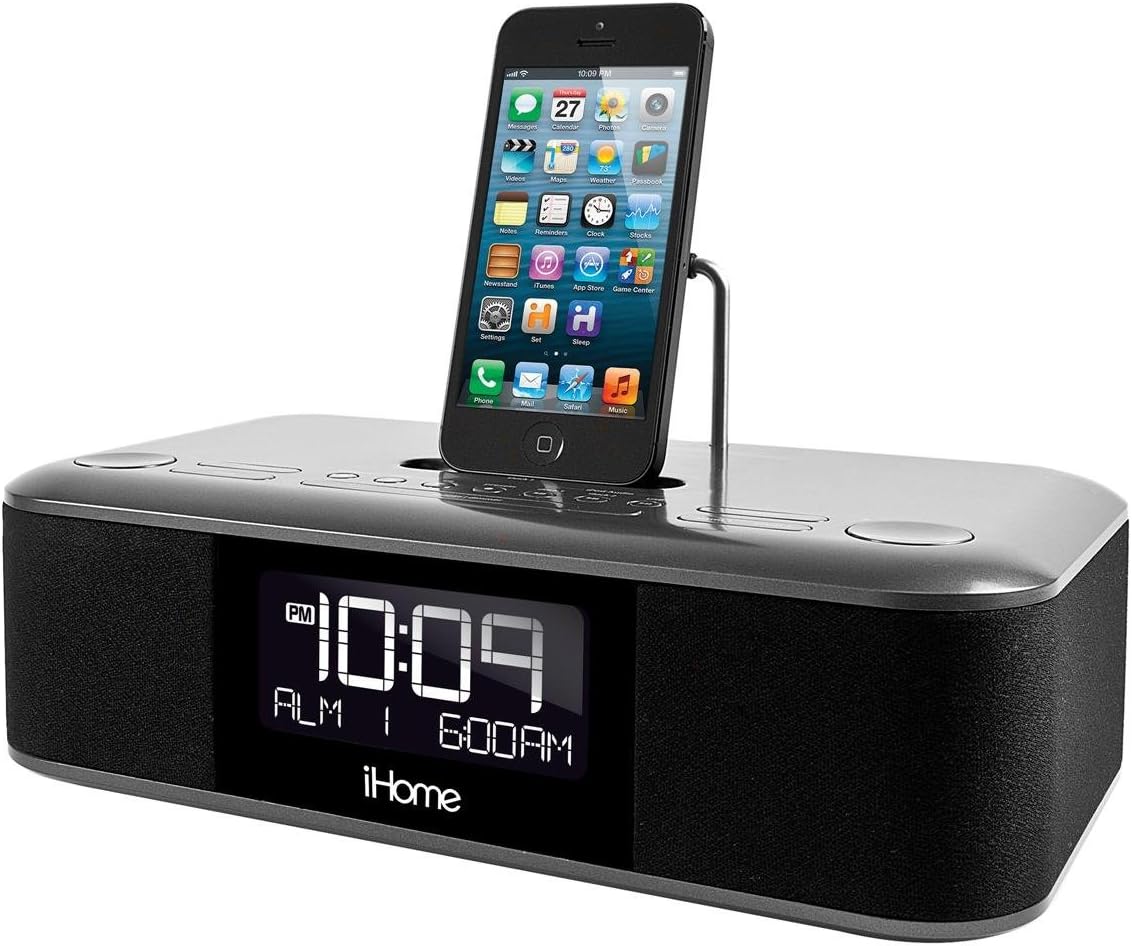

Figure 3: Close-up of the top controls and a single iPhone docked.

Figure 4: The adjustable Lightning connector in one of the docks.

3. Opsætning

3.1 Strømtilslutning

1. Connect the supplied AC adapter to the DC jack on the back of the iDL100.
2. Plug the AC adapter into a working wall outlet.
3. Enheden tændes, og displayet lyser.

3.2 Tidsindstilling

The iDL100 features an auto-sync function to set the time automatically when a compatible iPhone is docked.

• Automatisk synkronisering: Dock your iPhone into one of the Lightning docks. The iDL100 will automatically synchronize its time with your iPhone's time.
• Manuel tidsindstilling: Refer to the included quick start guide for detailed instructions on manually setting the time and switching between 12/24-hour formats using the dedicated buttons.

3.3 Alarmindstilling

The iDL100 allows for two independent alarms with a 7-5-2 day setting feature.

1. Press and hold the desired Alarm button (Alarm 1 or Alarm 2) to enter alarm setting mode.
2. Use the navigation buttons to adjust the alarm time.
3. Select your desired alarm source: docked device (iPad, iPhone, iPod), custom playlist, or FM radio.
4. Choose the 7-5-2 setting for daily, weekday, or weekend alarms.
5. Confirm your settings by pressing the Alarm button again.

4. Betjeningsvejledning

4.1 Opladningsenheder

The iDL100 offers triple charging options:

• Lightning Docks: Place your compatible iPhone, iPad, or iPod onto one of the two flexible Lightning docks. Ensure the device is properly seated for charging to begin.
• USB-port: Connect any USB-powered device (e.g., smartphone, tablet, earbuds) to the USB port located on the back of the unit using its charging cable.

4.2 FM-radiofunktion

1. Press the FM Radio button to turn on the radio.
2. Use the tuning buttons to scan for stations or manually adjust the frequency.
3. To save a station as a preset, press and hold a preset button until the display flashes, then release.

4.3 Audio Playback from Docked Devices

Once your Apple device is docked, you can play audio through the iDL100's speakers.

• Start playback on your docked device.
• Use the volume controls on the iDL100 or your device to adjust the audio level.
• Track navigation buttons on the iDL100 may control playback on your device.

4.4 Justering af displayets lysstyrke

Adjust the display brightness to your preference using the dedicated dimmer button, typically located on the top panel or rear of the unit.

5. Vedligeholdelse

• Clean the unit with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Keep the unit away from direct sunlight, heat sources, and excessive moisture.
• Sørg for korrekt ventilation omkring enheden.

6. Fejlfinding

• Ingen strøm: Sørg for, at AC-adapteren er korrekt tilsluttet både enheden og en fungerende stikkontakt.
• Alarmen lyder ikke: Verify that the alarm is set correctly, enabled, and the volume is not set to minimum. Check the alarm source.
• Enheden oplades ikke: Ensure your device is properly seated on the Lightning dock or securely connected to the USB port. Check for any debris in the connectors.
• Dårlig FM-modtagelse: Extend the FM antenna fully and try repositioning it for better signal.

7. Specifikationer

• Model: IDL100GC
• Produktdimensioner: 12.1 x 9.8 x 6.2 tommer
• Varens vægt: 4.94 pund
• Magt: Universal 100-240V AC adaptor
• Opladningsporte: 2 x Lightning Docks, 1 x USB Port (5V Input)
• Hardwaregrænseflade: USB
• Kompatible enheder: iPad, iPhone, iPod (Lightning connector models)
• Farve: Sort

8. Officiel produktvideo

9. Garanti og support

For garantioplysninger og kundesupport henvises til den dokumentation, der følger med dit produkt, eller besøg den officielle iHome webwebsted. Gem din købskvittering for garantikrav.
