Wet Sounds Revolution Series Dual 10 inch EFG HLCD Tower Speaker User Manual

Indledning

This manual provides essential information for the installation, operation, and maintenance of your Wet Sounds Revolution Series Dual 10 inch EFG HLCD Tower Speaker. The Revolution Series is engineered with proprietary REV TEC technology, designed to deliver exceptional volume and full-range sound quality both on and off-axis, even at significant distances. These speakers are specifically developed for marine environments, ensuring robust performance during water sports and boat activities.

Front view of the Wet Sounds Revolution Series Dual 10 inch Tower Speaker

Billede: Forside view of the Wet Sounds Revolution Series Dual 10 inch Tower Speaker, showcasing its dual speaker design and central horn-loaded compression driver.

Sikkerhedsoplysninger

Please read all safety information before installing and operating the speaker. Unauthorized modifications or improper installation can lead to damage or injury.

Ansvarsfraskrivelse for garanti

Wet Sounds, Inc. produkter, der sælges på alle ikke-autoriserede website or internet auction site are void of any and all manufacturer's warranty. This includes non-authorized sellers on Amazon, eBay, and Craigslist. To ensure product authenticity and warranty coverage, please contact Wet Sounds for an authorized site or an authorized retailer near you.

Opsætning

Proper setup is crucial for optimal performance and longevity of your tower speakers. Ensure all connections are secure and correct.

Montering

The Revolution Series speakers come with fixed clamps designed to fit pipes ranging from 1-7/8 inches to 3 inches in diameter. Ensure the mounting location is structurally sound and can support the speaker's weight (approximately 36.2 pounds per enclosure).

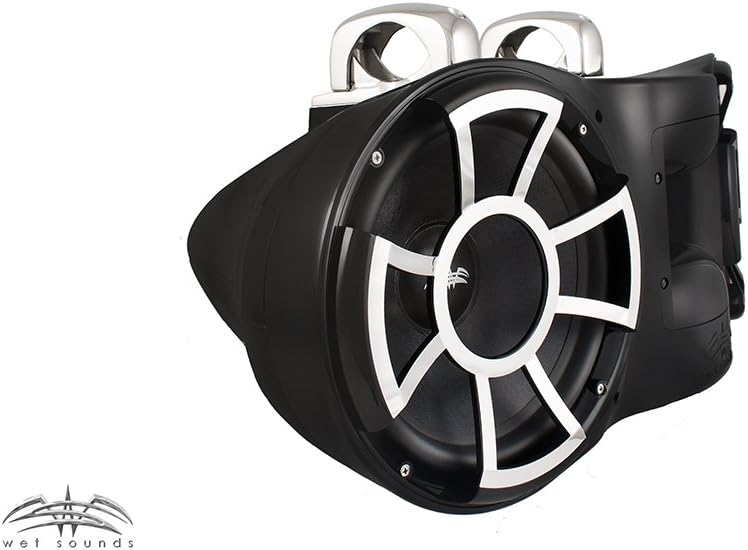

Side view of the Wet Sounds Revolution Series Tower Speaker with mounting clamp

Billede: Side view of the Wet Sounds Revolution Series Tower Speaker, illustrating the integrated mounting clamp for secure attachment to boat towers.

Billede: Vinklet side view of the Wet Sounds Revolution Series Tower Speaker, highlighting its sleek profile and robust enclosure.

Ledningsføring

The speakers have an impedance of 4 ohms. Connect them using RCA connectivity technology. Ensure all wiring is properly insulated and protected from the marine environment to prevent corrosion and short circuits.

Billede: Top view of the Wet Sounds Revolution Series Tower Speaker, showing the dual mounting points and overall symmetrical design.

Drift

The Wet Sounds Revolution Series speakers are designed for high-performance audio in open-air environments, particularly on boats.

Nøglefunktioner og ydeevne

RMS Watts: 400
PEAK Watts: 800
Frekvensrespons: 20Hz til 20KHz
Følsomhed: 92 dB at 1 watt/1 meter
Mellembas: Dual 10 inch HLCD Tower Speaker
Høj frekvens: Separate Titanium Diaphragm High Output Horn Loaded Compression Driver

The proprietary REV TEC technology ensures remarkable volume and amazing full-range sound quality. These speakers are capable of projecting sound effectively at 80 feet and beyond without loss of detail. This technology also allows for quality sound enjoyment even when riding outside the wake, almost parallel to the boat.

Opretholdelse

Regular maintenance will help preserve the performance and appearance of your Wet Sounds speakers, especially given their outdoor usage.

Rensning: Regularly clean the speaker enclosures with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
Inspektion: Periodically inspect all mounting hardware and wiring connections for tightness and signs of wear or corrosion. Tighten any loose fasteners.
Miljøpleje: While designed for outdoor use, prolonged exposure to extreme conditions should be minimized when possible.

Fejlfinding

If you encounter issues with your Wet Sounds speakers, consider the following common troubleshooting steps:

Ingen lyd: Check all power and audio connections. Ensure the amplifier is powered on and functioning correctly. Verify the audio source is active and properly connected.
Forvrænget lyd: Skru ned for lydstyrken. Kontroller for løse ledningsforbindelser. Sørg for, at amplifier gain settings are not too high, causing clipping. Verify the speaker impedance matches the amplifiers muligheder.
Intermitterende lyd: Inspect all wiring for breaks or loose connections. Check for any signs of corrosion on terminals.

If problems persist after performing these checks, it is recommended to consult a professional audio technician or contact Wet Sounds customer support.

Specifikationer

Feature	Detalje
Modelnavn	REV-410-B-FC-SS-V2
Højttaler type	Tårn
Impedans	4 Ohm
RMS watt	400
PEAK Watts	800
Frekvensrespons	20Hz til 20KHz
Følsomhed	92 dB at 1watt/1 meter
Mid bas driver	Dual 10 inch HLCD
Højfrekvent driver	Separate Titanium Diaphragm Horn Loaded Compression Driver
Hang Height	11 tommer (279.40 mm)
Højde	11 tommer (279.40 mm)
Bredde	28.5 tommer (729.90 mm)
Dybde	20.5 tommer (520.70 mm)
Clamp Center til Center	9.25 tommer (234.95 mm)
Hang Weight (each)	36.2 pund
Produktdimensioner	20.5" D x 28.5" B x 11" H
Varens vægt	49 Pounds (shipping weight)
Farve	Sort
Forbindelsesteknologi	RCA
UPC	814820020663
ASIN	B00DNIPW8Q

Garanti og support

For warranty inquiries, technical support, or to locate an authorized retailer, please contact Wet Sounds directly. As stated in the safety information, products purchased from non-authorized sellers may void the manufacturer's warranty.

You can find more information and contact details by visiting the official Wet Sounds store page: Wet Sounds Store
