Vigtige sikkerhedsforanstaltninger
Ved brug af elektriske apparater skal grundlæggende sikkerhedsforanstaltninger altid følges, herunder følgende:
- Read all instructions before operating the breadmaker.
- Rør ikke ved varme overflader. Brug håndtag eller knopper.
- For at beskytte mod elektrisk stød må ledning, stik eller apparat ikke nedsænkes i vand eller anden væske.
- Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af børn.
- Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
- Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
- Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
- Må ikke bruges udendørs.
- Lad ikke ledningen hænge ud over kanten af bordet eller bordpladen eller røre ved varme overflader.
- Må ikke placeres på eller i nærheden af en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
- Der skal udvises ekstrem forsigtighed ved flytning af et apparat, der indeholder varm olie eller andre varme væsker.
- For at afbryde forbindelsen skal du slukke for en hvilken som helst knap og derefter tage stikket ud af stikkontakten.
- Brug ikke apparatet til andet end tilsigtet brug.
- Dette produkt indeholder kemikalier, der af staten Californien vides at forårsage kræft og fødselsdefekter eller anden reproduktionsskade.
Produkt overview
The Breadman TR520 is a horizontal loaf breadmaker designed to produce loaves up to 2 pounds. It features an intuitive control panel with 8 pre-programmed functions, a 13-hour delay timer, and crust control settings. The unit includes a removable bread pan and a kneading paddle for easy operation and cleaning.
Figur 1: Vinklet view of the Breadman TR520 Breadmaker, showcasing its white plastic exterior and top viewvindue.
Figur 2: Øverst view of the Breadman TR520, highlighting the yellow control panel with program selections, display, and operation buttons.

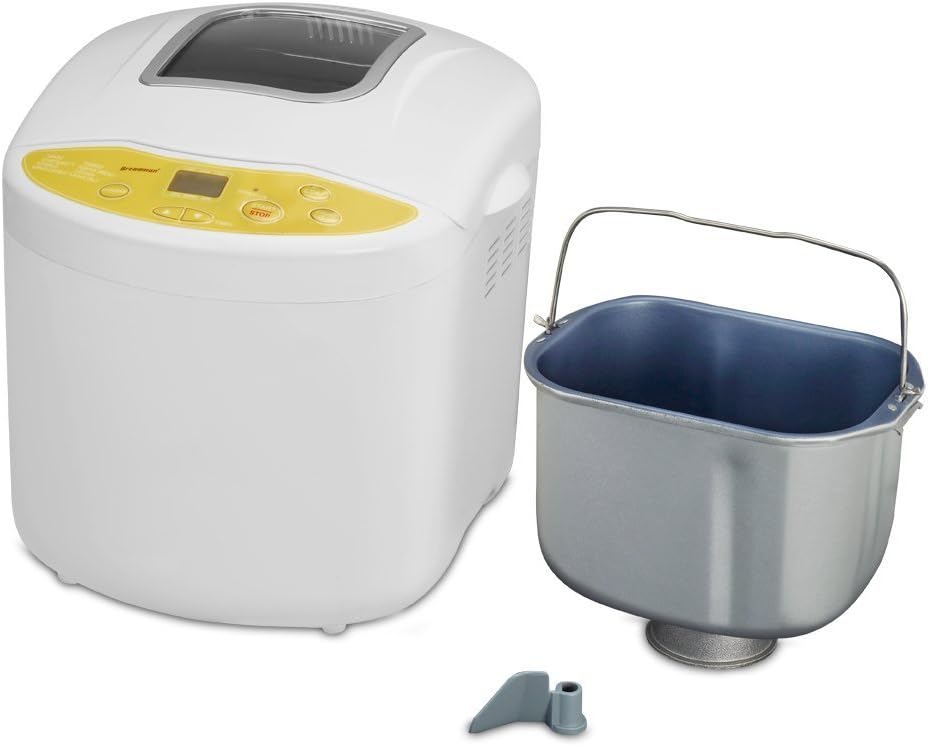

Figure 3: The Breadman TR520 Breadmaker shown alongside its removable bread pan and kneading paddle, ready for assembly.
Komponenter:
- Hovedenhed: The primary housing for the baking chamber and control panel.
- Brødform: A removable, non-stick pan where ingredients are mixed and baked.
- Æltepaddel: Attaches to the shaft inside the bread pan to mix and knead dough.
- Measuring Cup/Spoon (not pictured, but typically included): For nøjagtig måling af ingredienser.
Before First Use / Setup
- Pakker ud: Tag forsigtigt brødbagemaskinen og alt tilbehør ud af emballagen. Gem emballagen til senere opbevaring eller transport.
- Ren: Wash the bread pan and kneading paddle with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the breadmaker with a damp klæde. Nedsænk ikke hovedenheden i vand.
- Placering: Place the breadmaker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the appliance.
- First Bake Cycle (Recommended): To eliminate any manufacturing odors, perform an empty bake cycle.
- Insert the empty bread pan with the kneading paddle attached into the breadmaker.
- Luk låget.
- Plug in the breadmaker.
- Select the "Bake Only" program (Program 8).
- Press "Start/Stop". Allow the cycle to run for approximately 10-15 minutes, then press "Start/Stop" to cancel and unplug.
- Allow the unit to cool completely before cleaning again.
Betjeningsvejledning
Tilføjelse af ingredienser:
- Attach the kneading paddle to the shaft inside the bread pan. Ensure it is securely in place.
- Add ingredients to the bread pan in the order specified by your recipe. Typically, liquids are added first, followed by dry ingredients, with yeast added last on top of the dry ingredients, away from liquids and salt.
- Carefully place the filled bread pan into the breadmaker, pressing down firmly until it clicks into place.
- Luk låget forsvarligt.
Kontrolpanelets funktioner:
- PROGRAM: Press to cycle through the 8 available programs. The selected program number will display on the LCD screen.
- LOAF: Press to select the desired loaf size (e.g., 1.5 lb or 2 lb).
- CRUST COLOR: Press to choose light, medium, or dark crust.
- TIMER (+/-): Use these buttons to set the delay timer for delayed baking. Each press adjusts the time in 10-minute increments.
- START / STOP: Press once to start the selected program. Press and hold for a few seconds to stop or cancel a program.
Start af et program:
- Plug the breadmaker into a grounded electrical outlet.
- Select the desired program using the "PROGRAM" button.
- Select the loaf size using the "LOAF" button.
- Select the crust color using the "CRUST COLOR" button.
- If immediate baking is desired, press the "START/STOP" button. The breadmaker will begin its cycle.
- If using the delay timer, set the desired delay time using the "TIMER (+/-)" buttons, then press "START/STOP". The timer will count down before the program begins.
Removing Bread:
- Once the baking cycle is complete, the breadmaker will beep and may enter a 1-hour keep-warm cycle.
- Unplug the breadmaker.
- Using oven mitts, carefully remove the bread pan from the breadmaker. The pan and surrounding areas will be hot.
- Invert the bread pan onto a wire rack and shake gently until the bread loaf slides out. If the kneading paddle remains in the loaf, carefully remove it with a non-metallic utensil after the bread has cooled slightly.
- Allow the bread to cool on a wire rack for at least 15-30 minutes before slicing to ensure proper texture.
Programguide
The Breadman TR520 offers 8 pre-programmed cycles to simplify various bread and dough preparations:
| Program nr. | Programnavn | Beskrivelse |
|---|---|---|
| 1 | GRUNDLÆGGENDE | For white and mixed breads, primarily using basic bread flour. |
| 2 | FRANSK | For light breads made from fine flour, typically with a crispier crust. |
| 3 | FULD HVEDE | For brød, der indeholder en betydelig andel fuldkornshvedemel. |
| 4 | SØD | For breads with high sugar, fats, and proteins, such as brioche or sweet rolls. |
| 5 | DEJ | Prepares dough for rolls, pizza, or other baked goods that will be shaped and baked in a conventional oven. No baking cycle. |
| 6 | HURTIG | A quicker cycle for basic breads, often resulting in a denser loaf. |
| 7 | ULTRA HURTIG | An even faster cycle for basic breads, suitable for quick results. |
| 8 | BAG KUN | For baking pre-prepared dough or for adding additional baking time to a loaf. No kneading or rising. |
Note: Specific timings for each program may vary. Refer to your recipe book for detailed instructions and ingredient quantities for each program.
Pleje og rengøring
Proper cleaning and maintenance will extend the life of your breadmaker.
- Always unplug the breadmaker and allow it to cool completely before cleaning.
- Brødform og æltepad: Disse dele er Kun håndvask. Wash with warm, soapy water. Do not use abrasive cleaners or scouring pads, as this can damage the non-stick coating. Rinse thoroughly and dry completely before storing or reassembling. If the kneading paddle is stuck, fill the pan with warm water and let it soak for 10-15 minutes to loosen it.
- Ydre: Tør brødbagemaskinens yderside af med en blød, tør klud.amp cloth. Do not use harsh chemicals or abrasive cleaners. Never immerse the main unit in water or other liquids.
- Indre: Brug en blød, damp cloth to wipe the inside of the baking chamber. Remove any crumbs or residue.
- Opbevaring: Sørg for, at alle dele er rene og tørre, inden du stiller brødbagemaskinen til opbevaring. Opbevar den et køligt og tørt sted.
Fejlfinding
If you encounter issues with your Breadman TR520, consult the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Brødet hæver ikke eller hæver for meget. | Incorrect yeast quantity, old yeast, water temperature too hot/cold, incorrect flour type, too much salt/sugar. | Ensure yeast is fresh and active. Use lukewarm water (105-115°F / 40-46°C). Measure ingredients precisely. Check recipe for correct flour and ingredient ratios. |
| Bread is dense or heavy. | Too much flour, not enough liquid, incorrect program selected, old yeast. | Accurately measure flour (spoon into cup, level off). Ensure correct liquid amount. Select appropriate program for the bread type. |
| Æltepaddel sidder fast i brød. | Almindelig forekomst. | Allow bread to cool slightly. Use a non-metallic utensil (e.g., plastic spatula) to carefully pry out the paddle. Avoid metal utensils to prevent scratching the non-stick coating. |
| Machine does not start or respond. | Ikke tilsluttet, strømmen er slukkettage, lid not closed properly, program not selected. | Check power connection. Ensure lid is fully closed. Select a program and press "START/STOP". If still unresponsive, unplug for 5 minutes and try again. |
| Control panel labels are difficult to read. | Low contrast between text and background color. | Use the manual as a reference for button functions. Consider using a small task light for better visibility when operating the machine. |
If the problem persists after attempting these solutions, please refer to the support section or contact customer service.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | TR520 / COMINHKR058410 |
| Mærke | Brødmand |
| Brødkapacitet | Op til 2 lbs |
| Programmer | 8 (Basic, French, Whole Wheat, Sweet, Dough, Rapid, Ultra Fast, Bake Only) |
| Forsink timeren | 13-hour programmable delay |
| Crust Control | Lys, medium, mørk |
| Hold varm funktion | 1-hour automatic keep-warm |
| Magt | 560 watt |
| Farve | Hvid |
| Varens vægt | Cirka 11.15 lbs |
| Produktpleje | Hand Wash Only (Bread Pan & Paddle) |
| Fabrikant | Applika |
Garanti og support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Breadman webGarantibetingelserne dækker typisk fabrikationsfejl i en bestemt periode fra købsdatoen.
If you require technical assistance, have questions about operation, or need to inquire about replacement parts, please contact Breadman customer support. Contact details can usually be found on the manufacturer's webwebsted eller i produktemballagen.
When contacting support, please have your model number (TR520 / COMINHKR058410) and date of purchase readily available.
