Coxo C-root VI 2i1 Dental Endodontisk Endo Apex Locator & Pulpatester Brugermanual

1. Introduktion

The Coxo C-root VI is a versatile 2-in-1 dental instrument designed for precise endodontic measurements. It combines the functionalities of an Apex Locator and a Pulp Tester, providing dental professionals with an efficient tool for root canal procedures and pulp vitality assessment. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of the device.

2. Produktet er slutview

The C-root VI features a compact design with a clear color LCD display for easy reading of measurements. Its intuitive interface allows for seamless switching between Apex Locator and Pulp Tester modes.

Figur 2.1: Forside view of the Coxo C-root VI displaying the Pulp Tester mode.

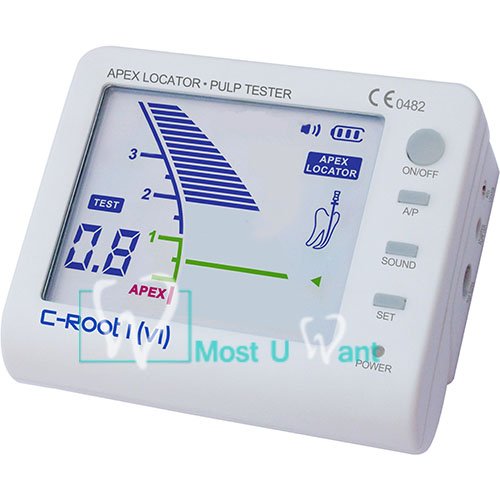

Figur 2.2: Forside view of the Coxo C-root VI displaying the Apex Locator mode.

3. Nøglefunktioner

• 2-i-1 funktionalitet: Combines Apex Locator and Pulp Tester in a single device.
• Cifferdisplay: Provides clear digital display of distance measurements.
• Color LCD Display: Enhanced visibility and readability of measurement data.
• Accurate Current-Stabilized Technology: Ensures reliable and precise measurements.
• Genopladeligt Li-batteri: Offers convenience and portability for clinical use.

4. Komponenter og tilbehør

The Coxo C-root VI package typically includes the main unit and various accessories necessary for its operation.

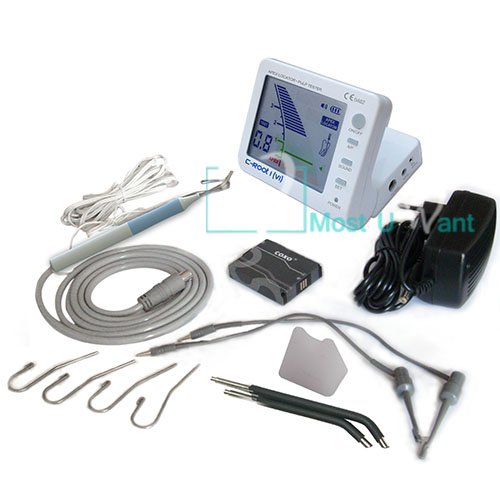

Figure 4.1: Complete kit contents of the Coxo C-root VI.

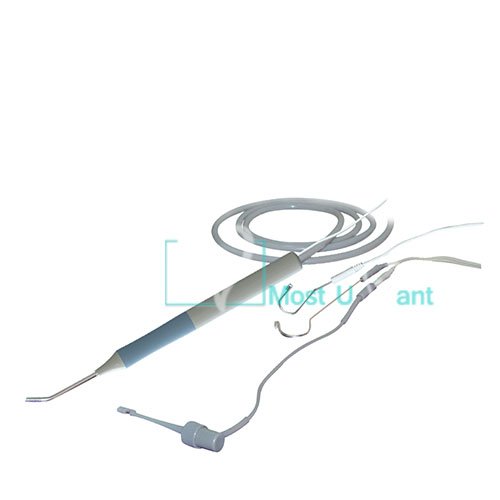

Figur 4.2: Detaljeret view af medfølgende tilbehør.

Standard Package Contents:

• Coxo C-root VI Main Unit
• Measuring Cable
• File Klip (x2)
• Lip Hook (x4)
• Pulp Tester Probe
• Adapter/Charger
• Brugervejledning (dette dokument)

5. Opsætning

5.1 Indledende opladning

1. Connect the provided adapter to the 'CHARGE' port on the side of the C-root VI unit.
2. Sæt adapteren i en passende stikkontakt.
3. The 'CHARGE' indicator light will illuminate, indicating that the device is charging. Allow the device to fully charge before first use (typically 2-3 hours).

5.2 Tilslutning af tilbehør

1. For Apex Locator Function: Connect the measuring cable to the 'APEX LOCATOR' port. Attach a file clip to one end of the measuring cable and a lip hook to the other end.
2. For Pulp Tester Function: Connect the pulp tester probe to the 'PULP TESTER' port.

6. Betjeningsvejledning

6.1 Generel drift

• ON/OFF knap: Tryk for at tænde eller slukke enheden.
• A/P Button: Press to switch between Apex Locator mode and Pulp Tester mode.
• LYD-knap: Toggles the audible alert on or off.
• SET -knap: Used for calibration or setting specific parameters within each mode (refer to specific mode instructions).

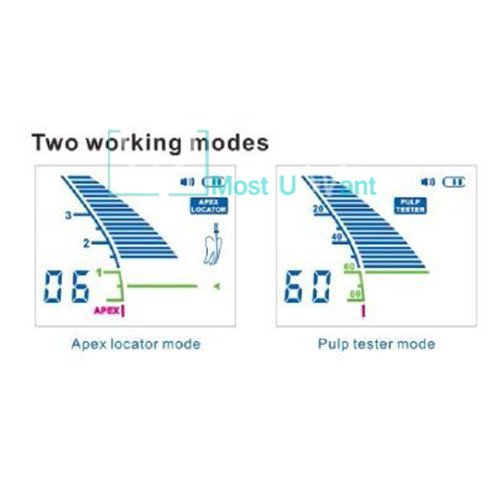

Figure 6.1: Comparison of Apex Locator and Pulp Tester display modes.

6.2 Apex Locator Mode

This mode is used to accurately determine the working length of the root canal.

1. Ensure the device is powered on and in Apex Locator mode (indicated on the display).
2. Vedhæft file clip to the endodontic file and the lip hook to the patient's lip.
3. Carefully insert the endodontic file into the root canal.
4. Observe the color LCD display. The numerical value and graphical representation will indicate the file's position relative to the apex.
5. The 'APEX' indicator and an audible alert (if enabled) will signal when the file reaches the apical foramen.

6.3 Pulp Tester Mode

This mode assesses the vitality of the dental pulp by delivering a controlled electrical stimulus.

1. Ensure the device is powered on and in Pulp Tester mode (indicated on the display).
2. Apply a conductive medium (e.g., toothpaste) to the tip of the pulp tester probe.
3. Place the probe tip on the tooth surface to be tested, avoiding contact with gingival tissue or metallic restorations.
4. Gradually increase the stimulus intensity using the 'SET' button or designated controls until a patient response is observed or the maximum level is reached.
5. Note the numerical reading on the display at which the patient responds. This reading indicates the pulp's vitality level.

7. Vedligeholdelse og pleje

Proper maintenance ensures the longevity and accuracy of your Coxo C-root VI device.

• Rensning: After each use, wipe the main unit with a soft cloth dampened with a mild disinfectant. Do not immerse the unit in liquid.
• Accessory Sterilization: De file clips, lip hooks, and pulp tester probe should be sterilized according to standard dental practice guidelines (e.g., autoclaving for reusable components). Refer to the specific instructions for each accessory.
• Opbevaring: Store the device in a clean, dry environment, away from direct sunlight and extreme temperatures.
• Batteripleje: Recharge the battery regularly, even if the device is not in frequent use, to maintain battery health. Avoid fully discharging the battery for extended periods.

8. Fejlfinding

This section addresses common issues you might encounter with the Coxo C-root VI.

9. Tekniske specifikationer

10. Garanti og support

For detailed warranty information and technical support, please refer to the warranty card included with your product or contact the manufacturer, COXO, directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer Contact Information: Please refer to the packaging or the official COXO webhjemmeside for de seneste kontaktoplysninger.
