Indledning
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Modine Effinity93 High Efficiency Unit Heater. This model, PTC156AS0121, is designed for optimal heating performance with 93% AFUE (Annual Fuel Utilization Efficiency) and utilizes LP (Liquefied Petroleum) gas with separated combustion for enhanced safety and efficiency. Please read this manual thoroughly before installation or operation.

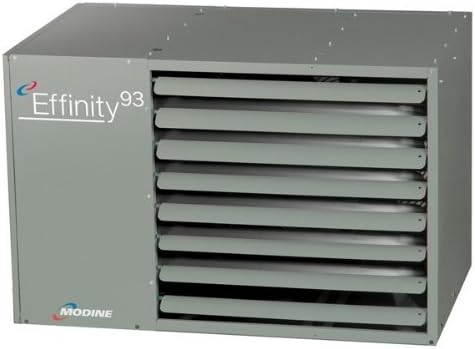

Figure 1: Modine Effinity93 High Efficiency Unit Heater (Model PTC156AS0121). This image shows the main unit, a rectangular gray box with a front grille for heat dispersion and the brand and model name visible on the side panel.
Sikkerhedsoplysninger
Always adhere to local codes and regulations when installing and operating this unit. Failure to do so may result in property damage, personal injury, or death. This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 Warning).
- Kvalificeret personale: Installation og service skal udføres af en kvalificeret installatør, et servicebureau eller en gasleverandør.
- Gaslækager: If you smell gas, immediately shut off the gas supply to the appliance, do not touch any electrical switch, do not use any phone in your building, and call your gas supplier from a neighbor's phone.
- Ventilation: Ensure proper ventilation as specified in the installation instructions to prevent carbon monoxide buildup.
- Frirum: Maintain specified clearances from combustible materials. Refer to the installation manual for detailed clearance requirements.
- Elektrisk sikkerhed: Disconnect power before servicing. Ensure proper grounding.
Opsætning og installation
Proper installation is crucial for the safe and efficient operation of your Effinity93 unit heater. This section provides a general overview; always consult the comprehensive installation manual provided with the unit for detailed instructions and diagrams.
Tjekliste før installation:
- Verify the unit model (PTC156AS0121) matches the intended LP gas supply.
- Ensure adequate clearances from walls, ceilings, and combustible materials.
- Confirm the availability of proper electrical supply (voltage og amperage).
- Prepare the venting system according to local codes and manufacturer specifications for separated combustion.
- Undersøg enheden for eventuelle forsendelsesskader.
Montering:
The unit can be suspended from the ceiling using appropriate hanging rods or brackets. Ensure the mounting structure can support the weight of the unit and any associated piping and ductwork. Level the unit for optimal performance and condensate drainage.
Gasforbindelse:
Connect the LP gas supply line to the unit's gas inlet. Use approved gas piping materials and ensure all connections are leak-free. A manual shut-off valve must be installed upstream of the unit.
Elektriske ledninger:
Wire the unit according to the wiring diagram provided in the full installation manual. Ensure proper grounding and overcurrent protection. Connect the thermostat wiring as per the thermostat manufacturer's instructions.
Udluftning:
Install the separated combustion venting system. This system draws combustion air from outside and exhausts flue gases to the outside, preventing indoor air contamination. Follow all instructions regarding vent pipe sizing, materials, and termination.
Betjeningsvejledning
Once installed and all connections verified, the Effinity93 unit heater is ready for operation. Always ensure the area around the heater is clear of obstructions.
Indledende opstart:
- Ensure the gas supply valve to the unit is open.
- Tænd for strømmen til enheden.
- Set the thermostat to a temperature above the current room temperature.
- The unit will initiate its startup sequence, including a pre-purge cycle, ignition, and main burner operation.
- Observe the unit for proper operation and ensure no unusual noises or odors are present.
Normal drift:
The unit will cycle on and off automatically based on the thermostat setting. For optimal comfort and energy efficiency, set the thermostat to your desired temperature and avoid frequent adjustments.
Lukker ned:
- Midlertidig nedlukning: Set the thermostat to its lowest setting or "Off" position.
- Udvidet nedlukning: For prolonged periods of non-use (e.g., summer), turn off the electrical power to the unit and close the manual gas shut-off valve.
Opretholdelse
Regular maintenance ensures the longevity and efficient operation of your Effinity93 unit heater. Always disconnect electrical power and shut off the gas supply before performing any maintenance.
Annual Maintenance (Recommended by Qualified Technician):
- Inspect and clean the burner and heat exchanger.
- Kontroller og juster gastrykket.
- Inspect the ignition system components (igniter, flame sensor).
- Examine the venting system for obstructions, leaks, or corrosion.
- Lubricate motor bearings if applicable (some motors are sealed).
- Verify electrical connections are tight and free from corrosion.
- Test safety controls (e.g., high-limit switch, rollout switch).
Brugervedligeholdelse (månedlig/sæsonbestemt):
- Keep the area around the unit clean and free of dust, debris, and combustible materials.
- Ensure the air intake and exhaust vents are clear of obstructions (e.g., snow, leaves, bird nests).
- Visually inspect the unit for any signs of damage or unusual wear.
Fejlfinding
This section provides solutions to common issues. For complex problems or if you are unsure, contact a qualified service technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden starter ikke. | No power; thermostat set too low; gas supply off; safety lockout. | Check circuit breaker/fuse; raise thermostat setting; open gas valve; reset unit (turn power off/on for 30 seconds). |
| Unit cycles on and off too frequently. | Oversized unit; restricted airflow; dirty filter (if applicable); thermostat location. | Consult technician for sizing; check for obstructions; ensure proper airflow; relocate thermostat away from drafts or heat sources. |
| Ingen varme eller utilstrækkelig varme. | Pilot light out (if applicable); gas pressure issue; faulty igniter/flame sensor; heat exchanger issue. | Check gas supply; contact qualified technician for diagnosis and repair. |
| Usædvanlige lyde. | Loose components; motor issues; fan imbalance. | Inspect for loose panels; contact technician for internal component inspection. |
Specifikationer
| Feature | Detalje |
|---|---|
| Model | PTC156AS0121 |
| Mærke | Modine |
| Varmekapacitet | 156,000 BTU |
| Brændstoftype | LP (Liquefied Petroleum) Gas |
| Efficiency (AFUE) | 93 % |
| Combustion Type | Separat forbrænding |
| ASIN | B00BZ7HXJS |
| Første ledige dato | 5. september 2024 |
Garanti og support
For specific warranty terms and conditions, please refer to the warranty card included with your unit or visit the official Modine webwebsted. Gem din købsbevis til garantikrav.
For technical support, service, or to locate a qualified Modine service provider, please contact Modine customer service or visit their official support page. Always provide your model number (PTC156AS0121) and serial number when seeking support.
