LASERLINER MultiFinder Plus - Universal Detektor Brugermanual

1. Introduktion

The LASERLINER MultiFinder Plus is a highly versatile and reliable locating device designed for detecting various materials within walls, ceilings, and floors. Equipped with multiple integrated sensors, it provides precise detection of wood, metal (including copper, steel, and iron), and live electrical wires. Its user-friendly LCD screen and automatic calibration feature ensure easy and safe operation for both professionals and DIY enthusiasts.

This manual provides comprehensive instructions for the safe and effective use, maintenance, and troubleshooting of your MultiFinder Plus. Please read it thoroughly before operating the device.

2. Sikkerhedsoplysninger

WARNING: Always exercise extreme caution when detecting near electrical installations. The device indicates live wires, but it is crucial to verify findings with other methods if there is any doubt. Disconnect power before drilling or cutting into walls.

• Læs alle instruktioner før brug.
• Udsæt ikke enheden for ekstreme temperaturer, fugt eller direkte sollys.
• Use only the specified battery type (9V alkaline battery, Type 6LR 61).
• Hold enheden ren og tør.
• Do not attempt to open or modify the device. Repairs should only be performed by authorized personnel.
• Be aware of potential hazards such as gas pipes, water pipes, and electrical cables.

Image: The display shows a permanent electrical warning symbol (lightning bolt in triangle) when live wires are detected, indicating a potential hazard.

Image: A red warning light illuminates on the top of the device, accompanied by a lightning bolt symbol on the display, to alert the user to the presence of live electrical current.

3. Pakkens indhold

• LASERLINER MultiFinder Plus device
• 1 x 9V alkaline battery (Type 6LR 61)
• Brugervejledning (dette dokument)

4. Produktet er slutview

Familiarize yourself with the components of your MultiFinder Plus:

Billede: Forside view of the MultiFinder Plus, showing the LCD display, Mode button, and CAL button.

• LCD-skærm: Shows detection mode, signal strength, battery status, and warning indicators.
• Mode knap: Used to switch between detection modes (Wood/Stud, Metal, AC).
• CAL-knap: Used for automatic calibration.
• Detektionssensorområde: Located on the back of the device, this area must be placed flat against the surface for accurate readings.
• Batterirum: Located on the back for battery installation.
• Advarselslampe: A red LED on the top of the device illuminates when live electrical wires are detected.

Billede: Nærbillede view of the orange 'Mode' button and the black 'CAL' (Calibration) button, indicating simple, one-touch operation.

Image: The LCD display provides clear information, including 'MOVE' arrows to guide the user during scanning, indicating the direction to move for optimal detection.

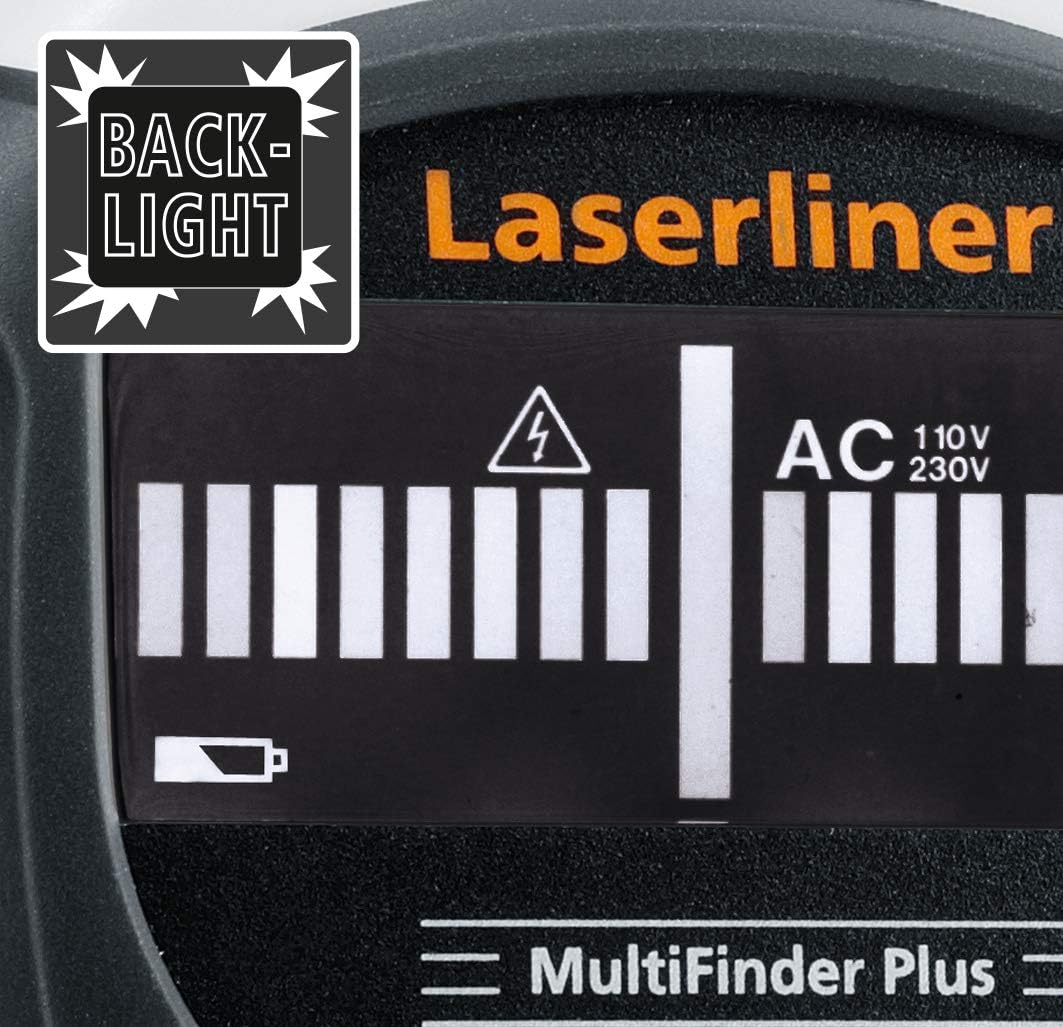

Image: The MultiFinder Plus features a backlight on its display, ensuring readability in low-light conditions.

5. Opsætning

5.1. Batteriinstallation

The MultiFinder Plus requires one 9V alkaline battery (Type 6LR 61).

1. Find batteridækslet på bagsiden af ​​enheden.
2. Skub dækslet åbent.
3. Insert the 9V battery, ensuring correct polarity (+ and -).
4. Luk batterirummets dæksel forsvarligt.

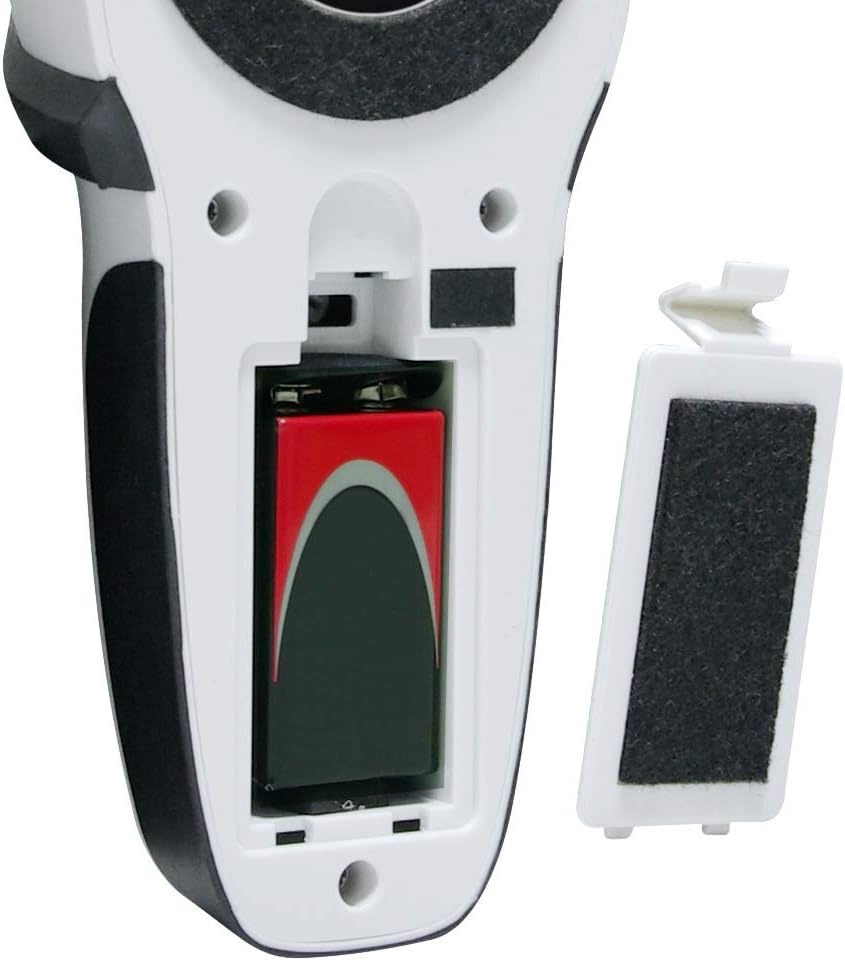

Image: The open battery compartment of the MultiFinder Plus, showing the correct placement of a 9V battery. The battery cover is shown detached.

Image: The MultiFinder Plus device displayed alongside a 9V battery, illustrating the required power source.

5.2. Indledende kalibrering

Before each use, or when switching detection modes, it is recommended to perform an automatic calibration.

1. Place the device flat against the surface you intend to scan, ensuring no objects are directly beneath it.
2. Tryk og hold på CAL button until the calibration process is complete (indicated on the LCD).
3. The device is now ready for use in the selected mode.

6. Betjeningsvejledning

6.1. Tænd/sluk og valg af tilstand

For at tænde enheden skal du trykke på Mode button. To switch between detection modes (Wood/Stud, Metal, AC), press the Mode button repeatedly until the desired mode is displayed on the LCD.

6.2. Detection Modes and Depths

The MultiFinder Plus offers three primary detection modes:

• Stud-Scan (Wood): Detects wooden studs and beams.
  • Detection Depth: Approximately 2 cm to 4 cm.
• Metal-Scan: Detects ferrous and non-ferrous metals, including copper, steel, and iron. This mode can also detect non-live cables under plaster.
  • Detection Depth: Up to 10 cm.
• AC-Scan: Detects live electrical wires (110V-230V).
  • Detection Depth: Approximately 4 cm to 5 cm.

Image: A visual diagram illustrating the approximate detection depths for different scan modes: Stud-Scan (2-4 cm), AC-Scan (4-5 cm for 110-230 Volt wires), and Metal-Scan (up to 10 cm).

6.3. Scanning Procedure

1. Select the appropriate detection mode using the Mode knap.
2. Perform automatic calibration by pressing the CAL button while the device is flat against the surface.
3. Slowly move the device horizontally across the surface. Maintain constant contact and pressure.
4. Observe the LCD display for signal strength indicators and the 'MOVE' arrows, which guide you towards the center of the detected object.
5. When an object is detected, the device will emit an acoustic signal, and the optical display will show a strong signal. For live wires, the red warning light will also illuminate.
6. Mark the location of the detected object. For precise localization, scan the area from multiple directions.

6.4. Acoustic and Optical Signals

The MultiFinder Plus provides clear feedback:

• Acoustic Signal: A beeping sound indicates the presence of a detected object. The frequency or intensity may change as you get closer to the object.
• Optisk skærm: The LCD screen shows a bar graph indicating signal strength. The higher the bars, the closer you are to the object.
• Rødt advarselslys: Illuminates when live electrical wires are detected, providing an immediate visual alert.

7. Vedligeholdelse og pleje

• Rensning: Tør enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the device in a dry, dust-free environment, away from direct sunlight and extreme temperatures (-20 °C to 70 °C).
• Batteri: Fjern batteriet, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
• Kalibrering: Regular calibration ensures optimal performance.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

Laserliner products are manufactured with high quality standards and undergo strict quality control. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official Laserliner webhjemmeside for detaljerede garantivilkår.

For technical support, service, or spare parts, please contact your local Laserliner distributor or the customer service department. Contact information can typically be found on the Laserliner webwebstedet eller på din produktemballage.

Gem venligst dit købsbevis for garantikrav.
