Dino-Lite USB digitalt mikroskop AM3111-0.3MP brugermanual

1. Introduktion

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Dino-Lite USB Digital Microscope AM3111-0.3MP. Designed for ease of use, this microscope offers versatile magnification capabilities and seamless integration with Windows and Mac operating systems, making it an ideal tool for various inspection and viewi applikationer.

2. Produktet er slutview og funktioner

The Dino-Lite AM3111 is a compact and powerful digital microscope equipped with essential features for detailed observation.

Forstørrelse: Offers true optical magnification from 20x to 50x, and up to 200x.
Billedopløsning: Captures images at 640 x 480 (0.3MP) resolution.
Videokapacitet: Records video at 30 frames per second (FPS).
Forbindelse: Features standard USB connectivity for simple plug-and-play operation.
Belysning: Integrated with 8 white LEDs for optimal lighting, with software-controlled on/off functionality.
Software: Includes DinoCapture (for Windows) and DinoXcope (for Mac) for image/video capture, annotation, and measurement.
Design: Solid, portable design with a high-quality sensor and durable ABS plastic body.

The Dino-Lite USB Digital Microscope AM3111, showcasing dens kompakte og ergonomiske design.

Dino-Lite AM3111 with key features — Overview of the Dino-Lite AM3111 highlighting its 20x-50x & 200x magnification, USB 2.0 connectivity, and compatibility with Windows & Mac operating systems.

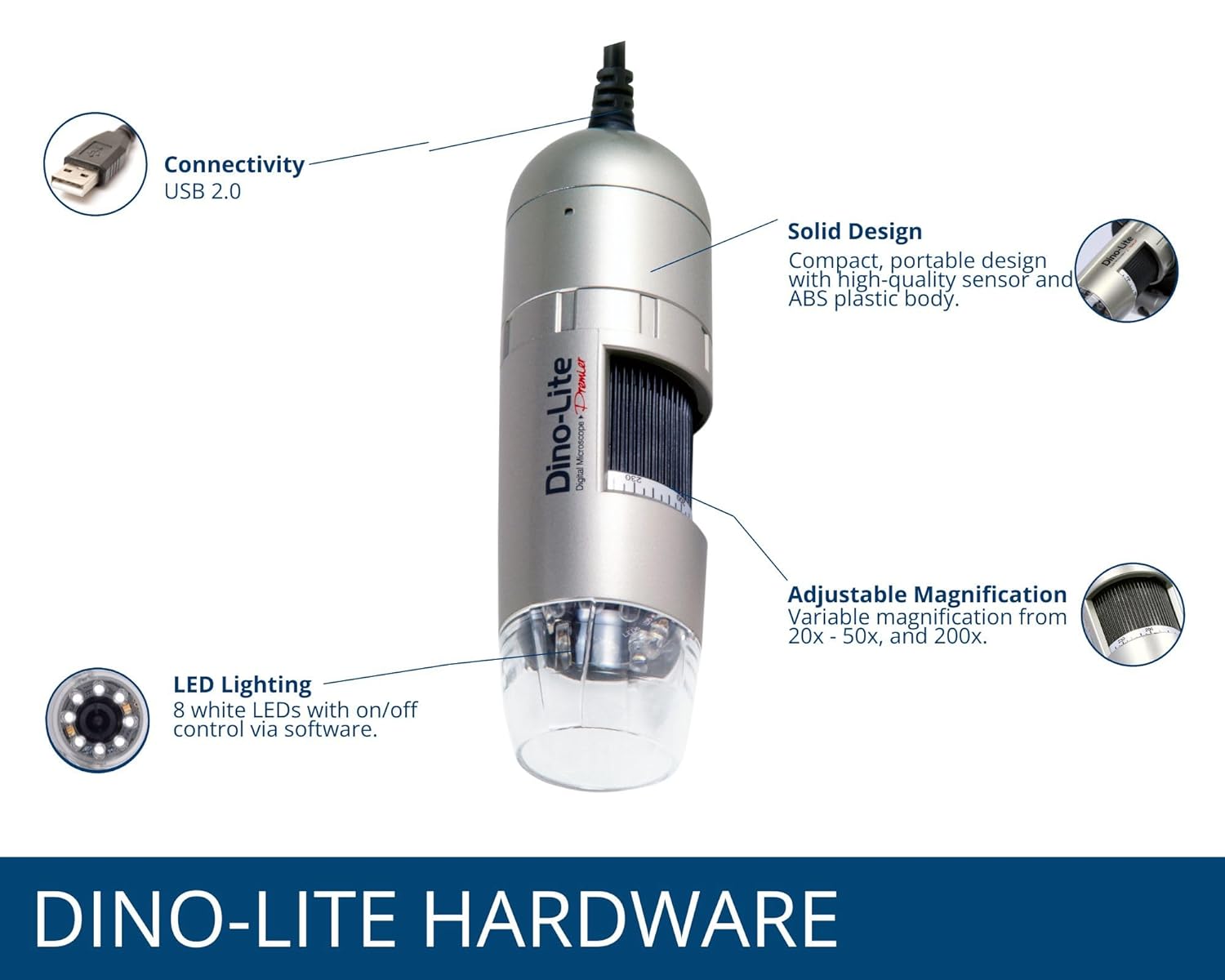

Dino-Lite Hardware Features — Detaljeret view of Dino-Lite hardware, illustrating USB 2.0 connectivity, solid design, adjustable magnification, and 8 white LED lighting with software control.

Dino-Lite Standard Working Distance — The Dino-Lite AM3111 in use, demonstrating its standard working distance for both handheld operation and when paired with an optional stand for precise movement.

3. Opsætning

Follow these steps to set up your Dino-Lite USB Digital Microscope:

Software installation: Insert the included CD or download the latest software (DinoCapture for Windows or DinoXcope for Mac) from the official Dino-Lite webFølg instruktionerne på skærmen for at fuldføre installationen.
Connect the Microscope: Plug the USB cable of the Dino-Lite microscope into an available USB port on your computer.
Start software: Double-click the Dino-Lite software icon on your desktop to launch the application. The microscope's live view burde vises på din skærm.

Dino-Lite Quick Guide Software Installation — A section from the Quick Guide illustrating the software installation process and initial connection steps for the Dino-Lite microscope.

4. Betjeningsvejledning

Operating your Dino-Lite microscope involves adjusting magnification, controlling illumination, and utilizing the software for image and video capture.

4.1 Adjusting Magnification and Focus

Justering af forstørrelse: Rotate the magnification dial on the microscope body to change the optical magnification between 20x-50x or to 200x.
Fokusering: Once the desired magnification is set, adjust the focus wheel to achieve a clear image on your computer screen.

Dino-Lite Magnification Dial Close-up — Nærbillede view of the magnification dial on the Dino-Lite microscope, used to adjust the optical magnification.

4.2 LED Illumination Control

The Dino-Lite AM3111 features 8 built-in white LEDs to illuminate your subject. These can be controlled via the software to optimize lighting conditions.

Dino-Lite LED Lights Close-up — En detaljeret view of the 8 white LED lights integrated into the Dino-Lite microscope's tip, providing illumination for observation.

4.3 Using the Software (DinoCapture/DinoXcope)

The included software provides a user-friendly interface for various functions:

Billedoptagelse: Click the 'Snapshot' button to capture still images of your observations.
Videooptagelse: Use the 'Video Recorder' function to record live video footage.
Annotation and Measurement: The software offers tools to add annotations, draw, and perform basic measurements on captured images.
Image Management: Organize and browse your captured images and videos within the software's file ledelsessystem.

Dino-Lite Software Interface — A laptop screen displaying the DinoCapture software interface, showing a magnified image and various tools for capture, recording, and annotation.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your Dino-Lite microscope.

Rengøring af linsen: Use a soft, lint-free cloth or lens paper to gently clean the microscope's lens. For stubborn spots, a small amount of lens cleaning solution can be applied to the cloth, not directly to the lens.
Rengøring af kroppen: Wipe the microscope body with a dry or slightly damp klæde. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
Opbevaring: Store the microscope in a clean, dry place, away from direct sunlight and extreme temperatures. Use the included carry pouch for protection when not in use.
Softwareopdateringer: Periodically check the Dino-Lite webwebsted for softwareopdateringer for at sikre, at du har de nyeste funktioner og fejlrettelser.

Dino-Lite In The Box Contents — Contents included in the Dino-Lite package: the microscope unit, a quick start guide with software download link, and a protective carry pouch.

6. Fejlfinding

If you encounter issues with your Dino-Lite microscope, refer to the following common problems and solutions:

Problem	Mulig årsag	Løsning
No image on screen / Microscope not detected	USB connection issue, software not running, driver issue.	Ensure USB cable is securely connected. Restart the Dino-Lite software. Reinstall the software and drivers. Try a different USB port.
Billedet er sløret eller ude af fokus	Incorrect focus adjustment, wrong working distance, dirty lens.	Adjust the focus wheel. Ensure the microscope is at the correct working distance from the object. Clean the lens as per maintenance instructions.
LED'erne lyser ikke	LED control in software is off, power issue.	Check the LED control settings within the Dino-Lite software. Ensure the microscope is properly connected and receiving power via USB.
Software går ned eller fryser	Software conflict, outdated software, system resource issue.	Close other applications. Update the Dino-Lite software to the latest version. Restart your computer.

7. Specifikationer

Key technical specifications for the Dino-Lite USB Digital Microscope AM3111:

Modelnavn: AM3111
Maksimal forstørrelse: 200x
Billedopløsning: 640 x 480 (0.3 MP)
Videobilledhastighed: 30 FPS
Lyskildetype: LED (8 white LEDs)
Forbindelse: USB 2.0
Produktdimensioner: 3.2 x 3.2 x 10.5 cm (L x B x H)
Varens vægt: 0.4 pund (6.4 ounces / 181 gram)
Voltage: 5 volt (USB-drevet)
Materiale: Plast
Farve: Taupe
Virkelig vinkel på View: 45 grader
Fabrikant: Dino-Lite

8. Garanti og support

For warranty information, technical support, and further assistance, please refer to the official Dino-Lite website or contact their customer service. Detailed user guides and FAQs are often available online to help with advanced features and specific applications.

Besøg Dino-Lite Store for mere information og produkttilbehør.
