1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of the uxcell H3Y-2 AC 220V Delay Timer Time Relay. This device is designed for precise time control in industrial automation systems and various mechanical equipment, offering a reliable power-on delay function.
2. Produktet er slutview og funktioner
The uxcell H3Y-2 is a compact and efficient time relay featuring a DPDT (Double Pole Double Throw) contact type. It operates on AC 220V and offers a time delay range of 0 to 10 minutes, adjustable via a transparent setting knob. Key features include:
- Model: H3Y-2
- Kontakttype: DPDT (Double Pole Double Throw)
- Operation Voltage: AC 220V
- Kontaktbedømmelse: 5A 250VAC (Resistive Load)
- Tidsinterval: Justerbar fra 0 til 10 minutter
- Terminaler: 8-pin solder terminal for secure connections
- Montering: Compatible with 35mm DIN Rail
- Indikatorer: LED indicators for Power (PW) and Output Status (UP)
- Justering: Large, transparent knob for easy time setting
Figur 1: Forside view of the uxcell H3Y-2 Delay Timer Time Relay, showing the adjustable time knob and indicator lights.

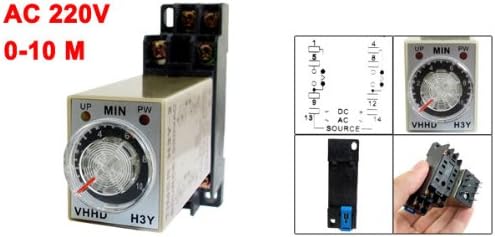

Figure 2: Various perspectives of the H3Y-2 relay, including its 8-pin socket and a basic wiring schematic.
3. Opsætning og installation
ADVARSEL: Ensure all power is disconnected before attempting any installation or wiring to prevent electric shock or damage to the device.
3.1 Montering
- Identify a suitable 35mm DIN Rail in your control panel or enclosure.
- Attach the provided 8-pin DIN Rail socket to the DIN Rail. Ensure it is securely fastened.
- Insert the H3Y-2 time relay into the 8-pin socket. It should click into place.
3.2 Ledningsføring
The relay uses an 8-pin solder terminal for electrical connections. Refer to the wiring diagram (Figure 2) for specific pin assignments. Ensure all connections are tight and correct for AC 220V operation.
- Connect the AC 220V power supply to the designated input terminals on the 8-pin socket.
- Connect the load (device to be controlled) to the DPDT output contacts.
- Verify all wiring against the schematic to prevent misconnections.
4. Betjening
4.1 Setting the Time Delay
- Locate the transparent time setting knob on the front of the H3Y-2 relay.
- Rotate the knob to align the red indicator with the desired time value between 0 and 10 minutes.
4.2 Powering On and Function
- Once installation and wiring are complete and verified, restore power to the circuit.
- The Power (PW) LED indicator on the relay will illuminate, indicating that the device is receiving power.
- The relay will begin its timed delay countdown.
- Upon completion of the set delay time, the Output Status (UP) LED will illuminate, and the relay contacts will switch, activating the connected load.
- The relay maintains this state until power is removed and reapplied, initiating a new delay cycle.
5. Specifikationer
| Feature | Specifikation |
|---|---|
| Produktnavn | Time Relay + Socket |
| Type | H3Y-2 |
| Kontakttype | DPDT (Double Pole Double Throw) |
| Operation Voltage | AC 220V |
| Kontaktvurdering | 5A 250VAC (Resistive Load) |
| Tidsområde | 0-10 minutter |
| Antal terminaler | 8 |
| Monteringstype | 35mm DIN-skinne |
| Fixing Mount Hole Size | 6 x 4mm (L*W) |
| Fixing Mount Center Hole Distance | 57 x 15mm (L*W) |
| Total Size (Approx.) | 68 x 22 x 88 mm (L*B*H) |
| Nettovægt | 65 g |
| Connector Type | Loddet |
| Kontaktmateriale | Sølv |
| Driftstilstand | Automatisk |
| Varemodelnummer | a12122100ux0565 |
6. Vedligeholdelse
The uxcell H3Y-2 Delay Timer Time Relay is designed for reliable, long-term operation with minimal maintenance. However, periodic checks can help ensure optimal performance:
- Rensning: Keep the relay and its socket free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
- Forbindelser: Periodically inspect all wiring connections to ensure they remain secure and free from corrosion.
- Miljøforhold: Ensure the operating environment remains within specified temperature and humidity ranges to prevent premature wear.
7. Fejlfinding
If the uxcell H3Y-2 Delay Timer Time Relay does not function as expected, consider the following common issues and solutions:
- No Power (PW LED Off):
- Check the AC 220V power supply to the relay socket.
- Verify all power connections are secure and correctly wired.
- Ensure the relay is fully seated in its 8-pin socket.
- Relay Does Not Switch After Delay (UP LED Off):
- Confirm the time setting knob is correctly set to a non-zero delay time.
- Check the load connections and ensure the load itself is functional.
- Verify the contact rating (5A 250VAC) is not exceeded by the connected load.
- Incorrect Delay Time:
- Re-adjust the time setting knob to the desired value.
- Ensure the knob is not obstructed and rotates freely.
If issues persist after performing these checks, contact uxcell customer support or a qualified electrician.
8. Garanti og support
8.1 Garantioplysninger
Specific warranty details for the uxcell H3Y-2 Delay Timer Time Relay are not provided in this manual. Please refer to the product packaging or the official uxcell webwebstedet for den seneste garantipolitik.
8.2 Kundesupport
For technical assistance, product inquiries, or further support, please visit the official uxcell website or contact their customer service department. You can often find contact information and FAQs on their brand store page: uxcell Officiel Butik.
