ALFAJR Classic Watch WS-06S Brugermanual

1. Introduktion

This manual provides detailed instructions for the ALFAJR Classic Watch WS-06S. Please read this manual carefully to understand the watch's features and functions, ensuring proper setup and operation. This watch is designed to assist users with prayer times, Qibla direction, and standard timekeeping features.

2. Produktet er slutview

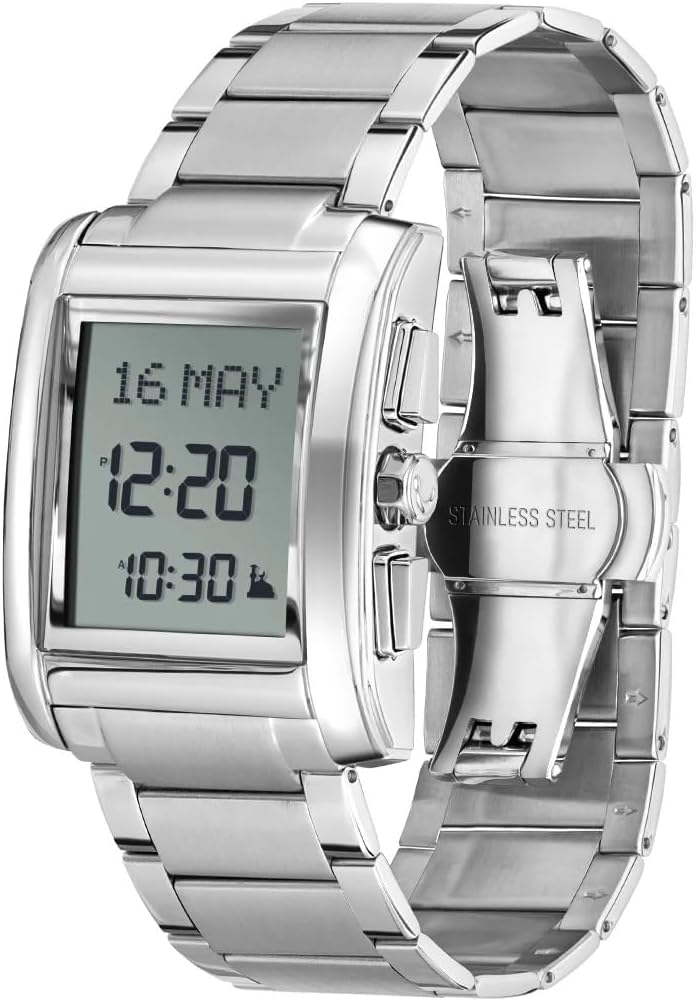

The ALFAJR Classic Watch WS-06S features a rectangular stainless steel case, a metal bracelet, scratch-resistant glass, and a Crystal FSTN LCD with blue EL backlight. It is water-resistant and offers a bilingual display in Arabic and English.

Nøglefunktioner:

• Digitalt display
• Azan Times for all cities worldwide
• Prayer Reminders
• Qibla Direction
• Hijri and Gregorian Calendars
• Qur'an Bookmark function
• Stopur
• Daglige alarmer
• Batteriniveauindikator
• 12-hour (AM/PM) or 24-hour time format display

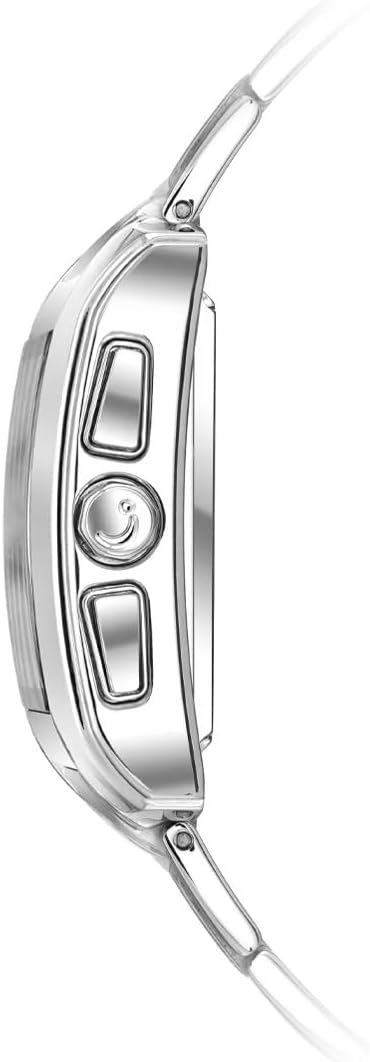

Urkomponenter:

3. Opsætning

3.1 Indledende tænding

Upon first use or after a battery change, the watch may require initial setup. Follow the on-screen prompts or proceed to set the basic parameters manually.

3.2 Indstilling af tid og dato

1. Tryk på Mode button (usually bottom right) to navigate to the Time Setting mode.
2. Brug Tilpasse button (usually top right) to select the hour, minute, year, month, and day.
3. Brug Sæt button (usually middle right) to change the values.
4. Confirm settings by pressing the Mode knappen igen eller venter på automatisk afslutning.

3.3 Selecting Language

The watch supports both Arabic and English. To change the display language:

1. Navigate to the Language Setting menu (refer to the watch's on-screen menu for exact navigation).
2. Vælg enten arabisk or engelsk ved hjælp af Tilpasse knap.
3. Bekræft dit valg.

3.4 Setting City for Azan Times

Accurate Azan times depend on the correct city setting. The watch has pre-programmed cities. If your city is not listed, you may need to set a nearby major city or manually adjust the prayer times.

1. Enter the Azan City Setting mode.
2. Browse through the list of cities using the Tilpasse knapper.
3. Select your city or the closest major city.
4. The watch will automatically calculate Azan times based on the selected city.

4. Betjeningsvejledning

4.1 Azan Times and Prayer Reminders

The watch displays Azan times for all cities worldwide and provides prayer reminders.

• Viewing Azan Times: In the main display mode, press the Mode button to cycle through the different prayer times.
• Adjusting Azan Times: If needed, individual prayer times can be adjusted by entering the Azan Adjustment menu. This is useful for minor discrepancies or specific local prayer time calculations.
• Bønpåmindelser: The watch will sound an alarm at each prayer time. This feature can be enabled or disabled in the settings.

4.2 Qibla Direction

The watch can display the Qibla direction relative to North. Ensure your current location is set correctly for accurate readings.

1. Enter the Qibla mode (refer to the watch's menu for specific button presses).
2. Hold the watch flat and rotate it slowly until the Qibla indicator points in the correct direction.

4.3 Stopur

The integrated stopwatch function allows for timing events.

1. Navigate to the Stopwatch mode.
2. Tryk på Start/Stop button to begin and end timing.
3. Tryk på Nulstil button to clear the stopwatch.

4.4 Daily Alarms

In addition to prayer alarms, the watch includes daily alarms for general use.

1. Enter the Daily Alarm setting mode.
2. Set the desired alarm time using the Tilpasse og Sæt knapper.
3. Aktiver eller deaktiver alarmen.

4.5 Calendar Display

The watch displays both Hijri and Gregorian calendars.

• Cycle through calendar views bruger Mode button or a dedicated calendar button.

4.6 Qur'an Bookmark

This feature allows you to mark the last read Surah and Ayah in the Qur'an.

1. Enter the Qur'an Bookmark mode.
2. Set the Surah number and Ayah number using the Tilpasse knapper.
3. The watch will store this information for future reference.

4.7 12/24 timers format

The time can be displayed in either 12-hour (AM/PM) or 24-hour format.

• Access the Time Format setting in the main menu.
• Skift mellem 12H og 24H muligheder.

5. Vedligeholdelse

5.1 Rengøring

Sådan bevarer du dit urs udseende:

• Wipe the watch case and bracelet with a soft, dry cloth.
• Til genstridigt snavs, en let damp klud kan bruges, efterfulgt af øjeblikkelig tørring.
• Undgå at bruge skrappe kemikalier eller slibende materialer.

5.2 Vandtæthed

The ALFAJR WS-06S is water-resistant. This means it can withstand splashes, rain, and brief immersion in water. However, it is ikke suitable for swimming, diving, or showering with hot water, as steam and prolonged water exposure can compromise the seals. Always ensure the crown and buttons are fully pushed in before any contact with water.

5.3 Udskiftning af batteri

The watch features a battery level indicator. When the battery is low, it is recommended to have it replaced by a qualified watch technician to ensure the water resistance seal is maintained. Do not attempt to replace the battery yourself unless you have the proper tools and expertise.

6. Fejlfinding

• Displayet er tomt: Check the battery level. If low, replace the battery.
• Incorrect Azan times: Verify that the correct city is selected in the settings. Ensure the date and time are set accurately.
• Knapper reagerer ikke: Ensure the watch is not in a locked mode. Try a soft reset (refer to specific model instructions if available, or remove and reinsert battery if possible).
• Qibla direction inaccurate: Ensure the watch is held flat and away from strong magnetic fields. Re-calibrate if a calibration option is available.

For issues not covered here, please contact ALFAJR customer support or your retailer.

7. Specifikationer

8. Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or further assistance, please visit the official ALFAJR webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
