Orbit 62100 Yard Enforcer bevægelsesaktiveret sprinkler brugermanual

1. Produktet er slutview

The Orbit Yard Enforcer Motion-Activated Sprinkler is designed to protect your landscapes and gardens by deterring unwanted animals and pests. It utilizes a combination of spray, motion detection, and noise to create an effective barrier. This versatile device also includes a timed watering feature for convenient garden irrigation.

Nøglefunktioner:

Sensor-Activated Yard Security: Detects movement up to 40 feet away, triggering a burst of water to deter visitors.
Dual-Purpose Functionality: Acts as both an animal repellent and allows for additional sprinklers to be connected for comprehensive coverage.
Humane Animal Repellent: Provides a safe and effective method to keep various animals, such as deer and cats, away from protected areas without causing harm.
Timed Watering Feature: Includes a convenient 30-minute watering cycle for garden irrigation.

Figure 1.1: The Orbit 62100 Yard Enforcer Motion-Activated Sprinkler.

2. Opsætningsvejledning

Udpak komponenter: Carefully remove all parts from the packaging. Ensure you have the main sprinkler unit, the motion sensor, and the ground stake.
Installer batterier: Locate the battery compartment on the motion sensor unit. Insert 4 AA batteries (not included), ensuring correct polarity.
Saml enhed: Attach the motion sensor unit to the sprinkler pole. Securely connect the sprinkler head to the top of the pole.
Attach Ground Stake: Connect the heavy-duty metal dual-step spike to the bottom of the sprinkler pole.
Placering af sprinkleren: Choose a location in your yard or garden that requires protection. Insert the ground stake firmly into the soil. Ensure the unit is stable and upright.
Tilslut vandslange: Attach a standard garden hose to the inlet connection at the base of the unit. Ensure a tight, leak-free connection.
Adjust Detection Angle: The motion sensor can be adjusted to control its detection angle. Rotate the sensor housing to cover the desired area.

Adjusting the detection angle of the Orbit Yard Enforcer — Figure 2.1: Control the detection angle by rotating the sensor unit.

Orbit Yard Enforcer humanely repelling animals and pests — Figure 2.2: The Yard Enforcer positioned in a garden, ready to deter animals.

3. Operating the Yard Enforcer

The Orbit Yard Enforcer offers multiple operating modes and adjustable settings to customize its performance for your specific needs.

3.1 driftstilstande:

Use the main dial on the sensor unit to select one of the following modes:

OFF: The unit is powered off and will not activate.
DAG: The motion sensor is active only during daylight hours.
NAT: The motion sensor is active only during nighttime hours.
ALTID: The motion sensor is active 24 hours a day.

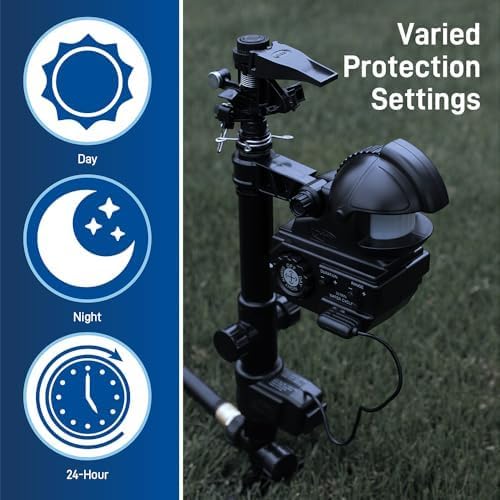

Operating modes: Day, Night, 24-Hour — Figure 3.1: Select from Day, Night, or Always active modes for varied protection settings.

3.2 Adjustable Settings:

Fine-tune the sprinkler's performance using the adjustment buttons:

Varighed: Adjusts the length of time the sprinkler sprays water after activation.
Rækkevidde: Controls the sensitivity and detection distance of the motion sensor, up to 40 feet.
30 Min Water Cycle: Press this button to activate a continuous 30-minute watering cycle, independent of motion detection. This is useful for regular garden irrigation.

Adjustable settings for duration, range, and watering mode — Figure 3.2: Adjust duration, range, and activate the 30-minute water cycle.

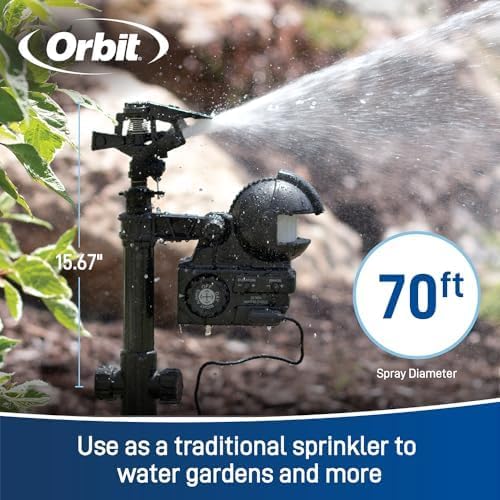

Orbit Yard Enforcer used as a traditional sprinkler with 70ft spray diameter — Figure 3.3: The Yard Enforcer can spray up to 70 feet in diameter, covering a large area.

3.3 Animal Detection:

The heat- and motion-activated sensor is designed to detect various animal sizes. For optimal detection of smaller animals like rabbits or cats, ensure the sensor is positioned lower to the ground. For larger animals like deer, a higher sensor position is effective.

Detectable animal types by Orbit Yard Enforcer — Figure 3.4: The Yard Enforcer effectively deters various animals, from large to neighborhood pets.

3.4 Officiel produktvideo:

Video 3.1: Official product video demonstrating how the Orbit Yard Enforcer repels and deters pests.

4. Vedligeholdelse

Udskiftning af batteri: Replace the 4 AA batteries when the unit's performance diminishes or the indicator light (if present) signals low power.
Sensorrensning: Periodically wipe the motion sensor lens with a soft, damp cloth to remove dirt, dust, or debris that may obstruct detection.
Rengøring af dyse: If water spray becomes uneven, check the sprinkler nozzle for any blockages and clear them carefully.
Vinterisering: Before freezing temperatures, disconnect the unit from the hose, drain all water, and store it indoors in a dry, protected area to prevent damage.

5. Fejlfinding

Problem	Mulig årsag	Løsning
Unit not spraying water.	No water supply, low water pressure, dead batteries, sensor obstruction, unit in OFF mode.	Ensure hose is connected and water supply is on. Check water pressure. Replace batteries. Clear any debris from sensor. Set unit to DAY, NIGHT, or ALWAYS mode.
Unit sprays too frequently or not enough.	Incorrect range/sensitivity setting, sensor angle incorrect.	Adjust the "RANGE" setting on the unit. Re-position the sensor to cover the desired area more accurately. Consider ambient conditions like wind.
Enheden er utæt.	Loose hose connection, damaged O-ring/gasket.	Tighten all hose connections. Check and replace any worn or damaged O-rings or gaskets.
Does not deter small animals (e.g., rabbits).	Sensor height/position not optimal for small animals.	Lower the unit's height and adjust the sensor angle to better detect animals closer to the ground.

6. Specifikationer

Mærke: Orbit
Modelnummer: 62100
Farve: Sort
Materiale: Plast, zink
Stil: Yard Enforcer
Emnemål (L x B x H): 10 x 5 x 24.5 tommer
Varens vægt: 2.1 pund
Maksimalt tryk: 100 pund pr. kvadrattomme
Maksimal gennemstrømningshastighed: 0.5 gallon pr. Minut
Batterier: 4 AA batterier påkrævet
UPC: 046878621008
Oprindelsesland: Kina

Dimensions of the Orbit Yard Enforcer — Figure 6.1: Product dimensions for the Orbit Yard Enforcer.

7. Garanti og support

For detailed warranty information, please refer to the documentation included with your purchase or visit the official Orbit webwebsted. Gem din købsbevis til garantikrav.
