1. Produktet er slutview
The BriskHeat DHCS13 is a standard heavy-duty drum heater designed for metal drums and pails, specifically fitting 30-gallon (114L) containers. This heater provides efficient and uniform heating for various materials, utilizing a robust construction for durability and safety.
Its design incorporates a patented 360-degree grounded multi-stranded heating element, laminated between two extra-thick layers of 20mil fiberglass-reinforced silicone rubber. This construction ensures excellent strength, durability, and uniform heat distribution, meeting NEC 427.23 standards. The unit is moisture and chemical resistant and features an adjustable thermostat for precise temperature control.

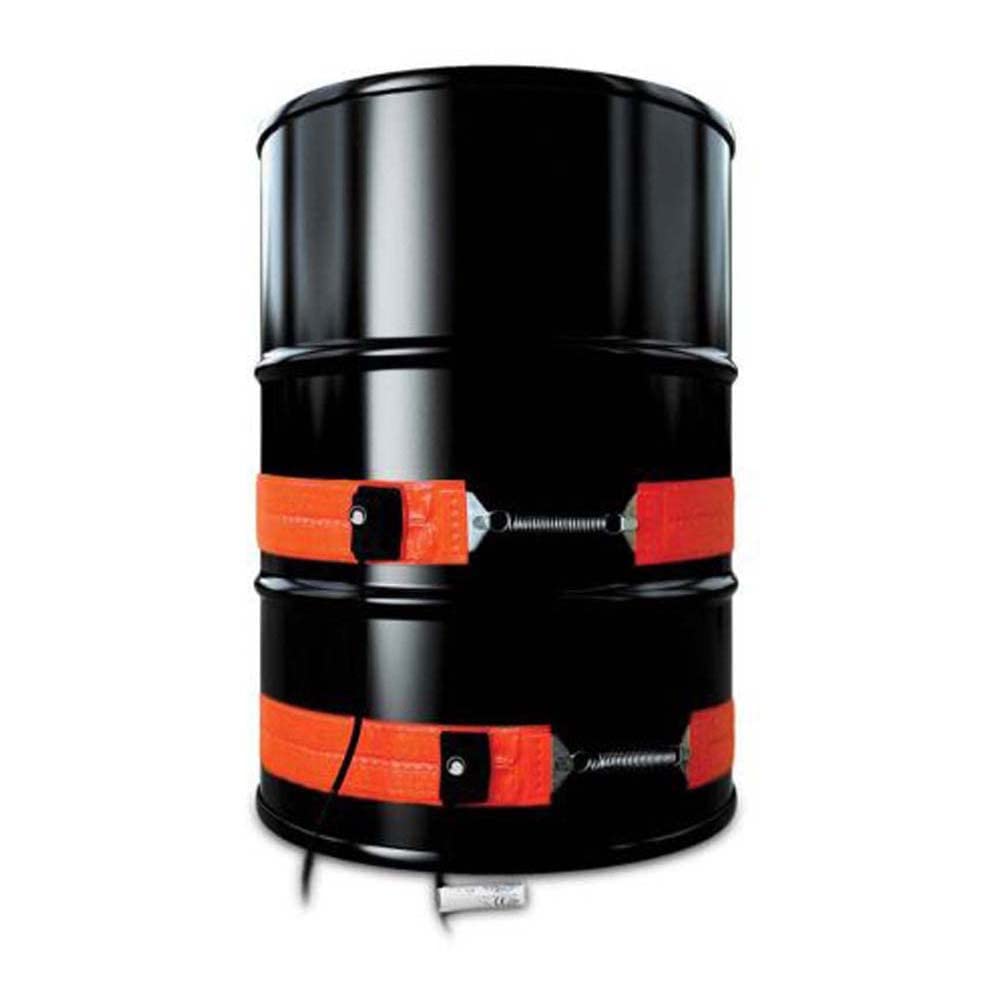

Image 1.1: The BriskHeat DHCS13 drum heater shown installed on a black 30-gallon metal drum. The orange heating bands are visible wrapped around the drum, secured by spring closures.
2. Sikkerhedsoplysninger
Read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, serious injury, or death.
- Ensure the heater is used only on metal drums and pails as specified. Do not use on plastic drums.
- Kontroller, at strømforsyningen voltage matches the heater's requirements (120VAC).
- Always ensure the heater is properly grounded. The unit includes a standard 3-prong plug (NEMA 5-15) for this purpose.
- Do not operate the heater in explosive atmospheres or near flammable vapors unless specifically rated for such environments. This heater is not intrinsically safe.
- Avoid direct contact with the heating surface during operation, as temperatures can reach up to 450°F (232°C).
- Do not immerse the heater in liquid. It is moisture and chemical resistant, but not submersible.
- Afbryd strømmen, før du udfører vedligeholdelse eller justeringer.
- Hold netledningen væk fra varme overflader og skarpe kanter.
- Do not modify the heater or its components. Use only genuine BriskHeat replacement parts if necessary.
3. Udpakning og indhold
Carefully unpack the BriskHeat DHCS13 drum heater from its packaging. Inspect the unit for any signs of shipping damage. If damage is observed, do not proceed with installation and contact your supplier immediately.
Pakkeindhold:
- BriskHeat DHCS13 Drum Heater (1 unit)
4. Opsætning og installation
The DHCS13 drum heater is designed for easy installation on 30-gallon metal drums.
- Klargør tromlen: Ensure the metal drum is clean and free from any debris or flammable residues on its exterior surface where the heater will be applied.
- Placer varmeren: Wrap the DHCS13 drum heater around the circumference of the 30-gallon metal drum. Position it at the desired height, typically around the lower or middle section of the drum, depending on the material to be heated.
- Secure the Heater: The heater features a spring closure mechanism. Expand the spring closure as needed (up to 3 inches / 76mm) to securely fasten the heater around the drum. Ensure the heater fits snugly against the drum surface for optimal heat transfer.
- Tilslut strøm: Plug the 6ft (1.8m) long power cord with its standard 3-prong plug (NEMA 5-15) into a properly grounded 120VAC electrical outlet. Ensure the outlet is capable of supplying 1000 watts.
- Indledende kontrol: Before setting the temperature, ensure the heater is firmly attached and the power cord is not pinched or in contact with any hot surfaces.
5. Betjeningsvejledning
The DHCS13 drum heater is equipped with an adjustable thermostat for precise temperature control.
- Juster termostaten: Locate the adjustable thermostat dial on the heater. The thermostat has a temperature range of 50°F to 425°F (10°C to 218°C).
- Indstil ønsket temperatur: Rotate the dial to set the desired temperature for the contents of the drum. Start with a lower setting and gradually increase if higher temperatures are required.
- Overvåg opvarmning: The heater will begin to warm the drum. The thermostat will cycle the heating element on and off to maintain the set temperature.
- Overtemperaturbeskyttelse: The maximum exposure temperature on the heating surface is 450°F (232°C). The thermostat will prevent the surface from exceeding this temperature.
- Sluk: To turn off the heater, unplug it from the power outlet.
Note: The actual temperature of the drum contents may vary based on ambient temperature, drum material, and the specific properties of the material being heated. It is recommended to monitor the internal temperature of the drum contents, especially for temperature-sensitive materials.
6. Vedligeholdelse
Regular maintenance ensures the longevity and safe operation of your BriskHeat DHCS13 drum heater.
- Rensning: Disconnect the heater from power before cleaning. Use a damp cloth to wipe down the exterior of the heater. Do not use abrasive cleaners or solvents that could damage the silicone rubber.
- Inspektion: Periodically inspect the heater for any signs of wear, damage, or fraying of the power cord. Check the integrity of the silicone rubber and the spring closure mechanism.
- Opbevaring: When not in use, store the heater in a clean, dry place, away from direct sunlight and extreme temperatures.
- Reparationer: Do not attempt to repair damaged components yourself. Contact BriskHeat customer support or a qualified technician for repairs.
7. Fejlfinding
If you encounter issues with your DHCS13 drum heater, refer to the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Heater not warming up. | Ingen strøm til enheden. Termostat indstillet for lavt. Defekt stikkontakt. | Check if the heater is plugged in. Øg termostatindstillingen. Test stikkontakten med en anden enhed, eller prøv en anden stikkontakt. |
| Varmeapparatet når ikke den ønskede temperatur. | Termostat indstillet for lavt. Drum contents too cold or large volume. Poor contact with drum surface. | Øg termostatindstillingen. Allow more time for heating, or consider additional insulation for the drum. Ensure the heater is snugly secured around the drum. |
| Varmeapparatet tænder og slukker ofte. | Normal operation (thermostat maintaining temperature). Thermostat sensor issue. | This is typically normal. If cycling is excessive or erratic, contact support. |
| Visible damage to heater or cord. | Fysisk skade. | Immediately disconnect power. Do not use. Contact BriskHeat for repair or replacement. |
If the problem persists after attempting these solutions, please contact BriskHeat customer support.
8. Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | DHCS13 |
| Tromlekapacitet | 30-Gallon (114L) Metal Drums |
| Voltage | 120VAC |
| Watt | 1000W |
| Thermostat Temperature Range | 50°F til 425°F (10°C til 218°C) |
| Maximum Exposure Temperature (Heating Surface) | 450°F (232°C) |
| Materiale | 2-Layer Fiberglass Reinforced Silicone Rubber |
| Dielektrisk styrke | 2000V |
| Dimensioner (B x L) | 4" (102 mm) x 58.5" (1496 mm) |
| Diameter (for drum) | 18.6 tommer (473 mm) |
| Strømkabellængde | 6 fod (1.8 m) |
| Stiktype | Standard 3-prong (NEMA 5-15) |
| Jordforbindelse | Jordet |
9. Garanti og support
BriskHeat products are manufactured to the highest quality standards. For information regarding product warranty, please refer to the warranty statement provided with your purchase or visit the official BriskHeat webwebsted.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact BriskHeat customer support:
- Fabrikant: BriskHeat
- Kontaktoplysninger: Refer to the BriskHeat webwebstedet eller produktemballagen for de mest aktuelle kontaktoplysninger.
