Johnson Controls M9116-AGA-2 Series Electric Non-Spring-Return Actuator

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the Johnson Controls M9116-AGA-2 Series Electric Non-Spring-Return Actuator. It is designed to ensure safe and efficient use of the product. Please read this manual thoroughly before attempting to install or operate the actuator.

2. Sikkerhedsoplysninger

Observe the following safety precautions to prevent personal injury and damage to the equipment:

• Disconnect all power to the actuator before installation or servicing to prevent electrical shock.
• Sørg for, at al ledningsføring overholder lokale og nationale elektriske forskrifter.
• Do not operate the actuator beyond its specified voltage og aktuelle vurderinger.
• Kun kvalificeret personale bør udføre installation og vedligeholdelse.
• Protect the actuator from moisture and extreme temperatures unless specifically rated for such conditions.

3. Produktet er slutview

The Johnson Controls M9116-AGA-2 is an electric non-spring-return actuator designed for precise control in various industrial applications. It offers on/off, floating, proportional, or resistive control capabilities and provides 16 Nm (140 in-lb) of torque.

Nøglefunktioner:

• Simple direct coupling reduces installation and commissioning time while improving reliability by eliminating dampeh forbindelser.
• Four control inputs meet the needs of most applications.
• Output position feedback provides simple closed-loop control with accurate position sensing.
• Electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected.
• NPT threaded housing provides easy connection for electrical fittings.

Komponenter:

The actuator features a robust housing, a direct-mount coupling mechanism, and clearly labeled electrical terminals. The image below illustrates a typical M9116 series actuator.

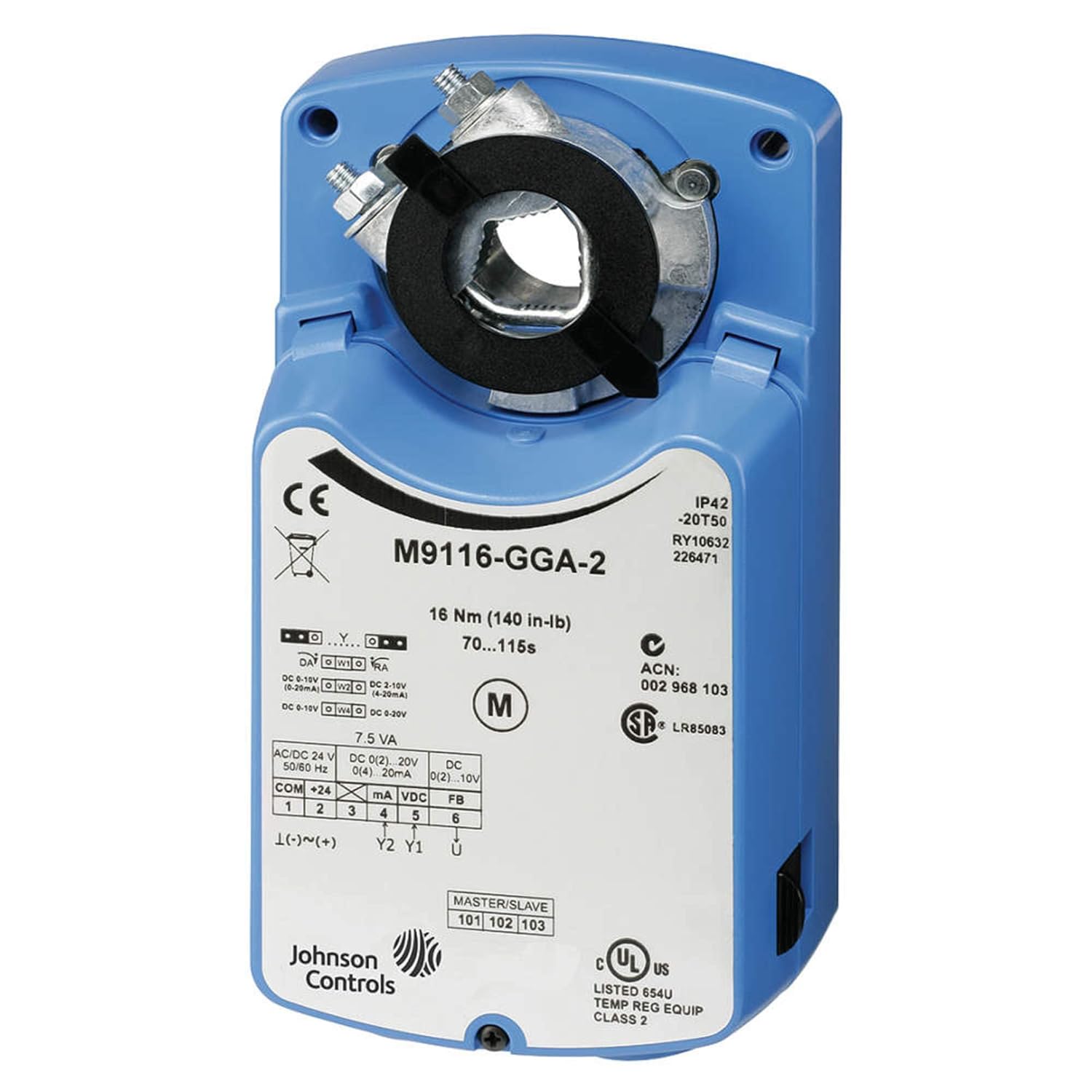

Figur 1: Johnson Controls M9116 Series Actuator (M9116-GGA-2 shown). Visible features include the model number, 16 Nm (140 in-lb) torque rating, 70-115s rotation time, IP42 protection, and various wiring terminals for AC/DC 24V power, control inputs (Y2, Y1), and feedback (FB).

4. Installation (Opsætning)

4.1 Montering

The M9116-AGA-2 actuator can be direct or remote mounted. It is designed for easy installation on a damper with a round shaft up to 3/4 inch (20 mm) in diameter or a square shaft up to 5/8 inch (16 mm). For valve applications, use one of the M9000-5xx Valve Linkage Kits.

• Ensure the mounting surface is stable and capable of supporting the actuator's weight.
• Securely attach the actuator to the shaft using the provided hardware.
• Verify that the actuator has a full range of motion without obstruction.

4.2 Ledningsføring

Refer to the wiring diagram on the actuator label (Figure 1) and local electrical codes for proper connections. The actuator operates on AC/DC 24 V power.

• COM: Fælles terminal.
• +24: 24V AC/DC power supply.
• Y2, Y1: Control input terminals for on/off or floating control.
• U: Feedback signal output (DC 0(2)-10V).
• mA, VDC: Additional input/output terminals for specific control types (e.g., 0(4)-20mA, 0(2)-10V).

The NPT threaded housing facilitates easy connection for electrical conduits.

5. Betjening

5.1 Control Types

The M9116-AGA-2 actuator supports various control signals:

• On/Off kontrol: Actuator moves to fully open or fully closed position based on a simple switch signal.
• Floating Control: Actuator position is adjusted by pulsed signals, allowing for intermediate positions.
• Proportional kontrol: Actuator position is proportional to an analog input signal (e.g., 0-10V DC or 4-20mA).
• Resistive Control: Actuator position is controlled by a resistive input.

5.2 Angle of Rotation Adjustment

The angle of rotation can be mechanically adjusted from 0 to 90 degrees in 5-degree increments. This allows for precise calibration to match specific application requirements.

5.3 Hjælpefunktioner

Integral auxiliary switches are available to indicate end-stop positions or to perform switching functions at any angle within the selected rotation range. Position feedback is provided through switches, a potentiometer, or a DC 0(2) to 10 V signal, enabling closed-loop control systems.

6. Vedligeholdelse

The M9116-AGA-2 actuator is designed for reliable, long-term operation with minimal maintenance. Periodic checks are recommended:

• Inspect wiring connections for tightness and signs of wear.
• Ensure the actuator housing is free from dust and debris.
• Verify that the shaft connection remains secure and free of play.
• No lubrication is required for internal components.

7. Fejlfinding

If the actuator is not functioning as expected, consider the following:

• Ingen bevægelse: Kontroller strømforsyningens tilslutninger, og sørg for at den korrekte lydstyrketage is applied. Verify control signal input.
• Incorrect Positioning: Re-check control signal calibration and mechanical angle adjustments.
• Usædvanlig støj: Inspect for mechanical obstructions or loose mounting.

Electronic Stall Detection:

The actuator features electronic stall detection, which deactivates the motor if an obstruction prevents movement. If a stall occurs, remove the obstruction and cycle power to reset the actuator.

8. Specifikationer

9. Garanti og support

Johnson Controls products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Johnson Controls webwebsted.

For technical support, service, or replacement parts, please contact your authorized Johnson Controls distributor or customer service representative. Provide the model number (M9116-AGA-2) and serial number (if applicable) when seeking assistance.
