EZ-FLO 35302 Hvid S-låseafløbsrør 1-1/2 tommer brugsanvisning

1. Introduktion og overview

This manual provides detailed instructions for the installation, maintenance, and troubleshooting of the EZ-FLO 35302 White S-Trap Drain Pipe. This S-trap is designed for tubular drain applications in both kitchen and bathroom sinks, ensuring efficient wastewater drainage and preventing sewer gases from entering your living space. It is constructed from durable polypropylene plastic and is certified by the Uniform Plumbing Code (UPC) for product safety.

Figur 1: Assembled EZ-FLO 35302 White S-Trap Drain Pipe. This image displays the complete S-trap unit, showing its characteristic S-shape and white polypropylene construction, ready for installation.

2. Produktfunktioner

• Alsidig anvendelse: Suitable for under-sink installation in kitchens and bathrooms.
• Holdbar konstruktion: Crafted from high-impact polypropylene plastic for long-lasting reliability.
• Nem installation: Features a captive nut on the J-bend for quick and straightforward assembly.
• Standard kompatibilitet: Designed for compatibility with 1-1/2 inch pipes, fitting most standard sinks.
• Certificeret sikkerhed: Certified by the Uniform Plumbing Code (UPC) for product safety standards.

3. Opsætning og installation

Before beginning installation, ensure all necessary components are present and that the existing plumbing is compatible with a 1-1/2 inch S-trap system. Basic tools such as a wrench or pliers may be required.

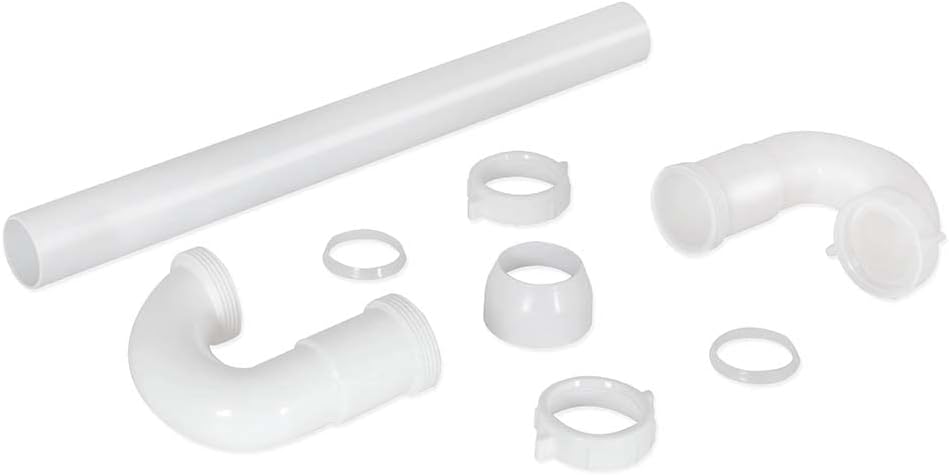

Figur 2: EZ-FLO S-Trap Drain Pipe components. This image shows the individual parts of the S-trap, including the straight pipe, J-bend, nuts, and washers, laid out before assembly.

Installationstrin:

1. Forberedelse: Turn off the water supply to the sink. Place a bucket under the existing drain to catch any residual water.
2. Remove Old Drain: Carefully disconnect and remove the old drain pipe assembly.
3. Saml komponenter: Attach the J-bend to the sink tailpiece using the provided nuts and washers. Ensure washers are correctly seated to prevent leaks. The captive nut design facilitates this step.
4. Tilslutning til vægafløb: Connect the straight pipe section of the S-trap to the J-bend and then to the wall drain pipe. Adjust the length of the straight pipe if necessary by cutting it to fit.
5. Spænd forbindelser: Hand-tighten all nuts, then use a wrench or pliers for a final snug turn. Avoid over-tightening, which can crack plastic components.
6. Test for lækager: Turn on the water supply and run water through the sink. Carefully inspect all connections for any signs of leaks. Tighten connections further if leaks are detected.

Figur 3: J-bend and nuts for EZ-FLO S-Trap. This image highlights the J-bend component along with the associated nuts and washers, demonstrating the captive nut feature for easier assembly.

4. Specifikationer

5. Vedligeholdelse

Regular maintenance helps ensure the longevity and proper function of your S-trap drain pipe.

• Regelmæssig rengøring: Periodically flush the drain with hot water to help prevent grease and soap buildup.
• Tjek for lækager: Inspect all connections annually for any signs of drips or moisture. Tighten connections as needed.
• Undgå barske kemikalier: Do not use harsh chemical drain cleaners, as they can damage plastic pipes and seals. Use enzymatic cleaners or a plumber's snake for clogs.
• Ryd forhindringer: If a clog occurs, disassemble the S-trap to manually remove the obstruction. The captive nut design makes this process easier.

6. Fejlfinding

7. Garanti og support

For information regarding warranty coverage, product support, or replacement parts for your EZ-FLO 35302 White S-Trap Drain Pipe, please refer to the official EZ-FLO webwebstedet eller kontakt deres kundeserviceafdeling direkte. Gem din købskvittering som købsbevis.

EZ-FLO Customer Support: Visit the EZ-FLO Store on Amazon
