GEORGE KOVACS P4308-647 LED Swing Arm Wall Lamp

Indledning

This manual provides essential information for the safe installation, operation, and maintenance of your GEORGE KOVACS P4308-647 LED Swing Arm Wall LampLæs venligst disse instruktioner grundigt, inden installationen påbegyndes, og gem dem til senere brug.

The P4308-647 is a contemporary LED swing arm wall lamp designed for indoor use, featuring an integrated dimmable LED module and a copper bronze patina finish.

Sikkerhedsoplysninger

• ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringsboksen eller afbryderen før installation eller service.
• Alle elektriske forbindelser skal være i overensstemmelse med lokale forskrifter, forordninger eller National Electric Code (NEC). Kontakt en kvalificeret elektriker, hvis du ikke er bekendt med korrekt elektrisk ledningsføring.
• Denne lampe er kun beregnet til indendørs brug. Må ikke udsættes for vand eller fugt.
• Sørg for, at monteringsfladen kan bære armaturets vægt.
• Do not attempt to modify the LED module or any electrical components. The LED module is integrated and not user-replaceable.
• Clean the fixture only with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Dette produkt indeholder kemikalier, der af staten Californien er kendt for at forårsage kræft og fosterskader eller andre reproduktionsskader (advarsel i henhold til Proposition 65).

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• LED Swing Arm Wall Lamp Fixture (P4308-647)
• Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
• Integreret LED-modul

Opsætning og installation

Denne væg lamp is designed for wall mount installation and includes hardware to mount the fixture to an existing junction box (junction box not included). The lamp operates via a corded electric power source with a US-style plug.

1. Forbered til installation: Turn off the electrical power at the main fuse box or circuit breaker. Ensure the power is off before proceeding.
2. Montering af monteringsplade: Attach the mounting plate to the existing junction box using the provided screws. Ensure the plate is securely fastened.
3. Elektriske forbindelser: Connect the fixture's electrical wires to the corresponding wires from the junction box. Typically, connect the black wire from the fixture to the black (live) wire from the junction box, the white wire from the fixture to the white (neutral) wire from the junction box, and the ground wire (bare copper or green) from the fixture to the ground wire from the junction box. Secure connections with wire nuts.
4. Sikre armaturet: Juster forsigtigt lamp fixture with the mounting plate and secure it in place using the provided screws. Ensure the fixture is flush against the wall and stable.
5. Tilslut: Once the fixture is securely mounted and wired, plug the power cord into a standard US electrical outlet.
6. Gendan strøm: Turn the electrical power back on at the main fuse box or circuit breaker.

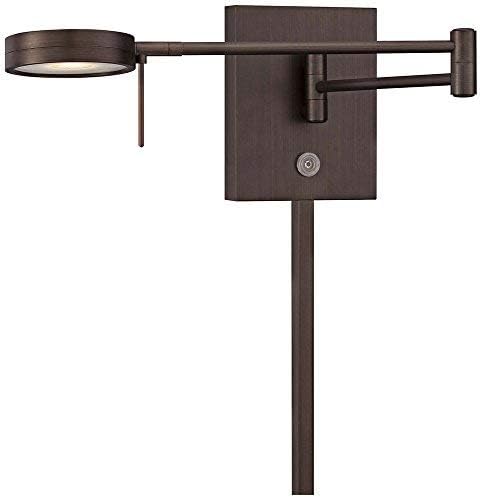

Image: Wall plate of the P4308-647 lamp, showing the integrated dimming button and the power cord extending downwards. This view highlights the control interface and power connection point.

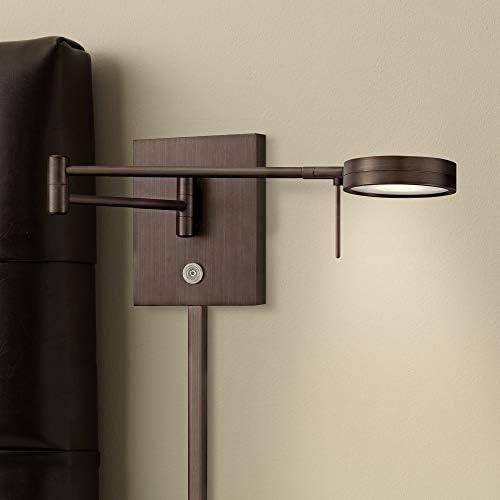

Image: The P4308-647 lamp mounted on a wall, positioned beside a bed with a dark upholstered headboard. The swing arm is extended, and the LED light is illuminated, demonstrating its functional placement in a reading environment.

Betjeningsvejledning

The P4308-647 lamp features an integrated push-button control for power and dimming, located on the wall plate.

• Tænd/sluk: Tap the circular button on the wall plate to turn the lamp til eller fra.
• Dæmpning: To adjust brightness, press and hold the circular button. The light will cycle through its brightness levels (from brightest to dimmest and back again). Release the button when the desired brightness is reached. The lamp will remember the last brightness setting when turned off and on again.
• Justering af armen: The swing arm allows for flexible positioning of the light. Gently move the arm to direct the light as needed.

Billede: Detaljeret view of the P4308-647 lamp's LED head and the articulation points of its swing arm. This image highlights the design and adjustability of the light source.

Opretholdelse

The GEORGE KOVACS P4308-647 LED Swing Arm Wall Lamp kræver minimal vedligeholdelse.

• Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp cloth. Do not use harsh chemicals, abrasive cleaners, or polishes as they may damage the finish or electrical components.
• LED -modul: The LED module is integrated and designed for long-term use. It is not user-replaceable. If the LED module fails, contact customer support for assistance.

Fejlfinding

Specifikationer

Garantioplysninger

This GEORGE KOVACS P4308-647 LED Swing Arm Wall Lamp kommer med en et års begrænset garanti fra købsdatoen. Denne garanti dækker defekter i materialer og udførelse ved normal brug. Den dækker ikke skader som følge af forkert installation, ulykker, misbrug, misbrug eller uautoriserede ændringer.

Gem venligst dit købsbevis for garantikrav.

Kundesupport

For technical assistance, warranty claims, or questions regarding your GEORGE KOVACS P4308-647 LED Swing Arm Wall Lamp, please contact the manufacturer or your retailer.

For mere information kan du besøge GEORGE KOVACS Store on Amazon.
