TIMEX Expedition analog-digital ur MF46 brugsanvisning

Indledning

This manual provides detailed instructions for the operation and maintenance of your TIMEX Expedition Analog-Digital Watch, model MF46. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your timepiece.

Våge overview

The TIMEX Expedition Analog-Digital Watch MF46 combines traditional analog timekeeping with digital functionalities. It features a durable design suitable for various activities, including water resistance up to 50 meters.

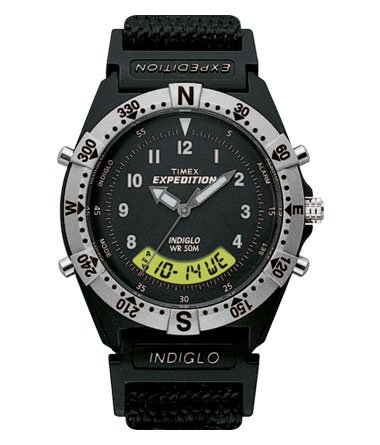

Figur 1: Front view of the TIMEX Expedition Analog-Digital Watch MF46. This image displays the TIMEX Expedition Analog-Digital Watch MF46. It features a black dial with white hour markers and hands, a digital display showing date and day, and a silver-toned bezel with compass markings (N, E, S, W) and degree indicators. The watch has multiple pushers on the sides and a crown for adjustments. The strap is black fabric.

Opsætning

1. Indstilling af analog tid

1. Pull the crown (located on the right side of the watch case) out to the first position.
2. Drej kronen med eller mod uret for at indstille time- og minutviserne til det ønskede tidspunkt.
3. Push the crown back into its original position to start the analog timekeeping.

2. Indstilling af digital tid og dato

The digital display can be adjusted using the pushers located on the sides of the watch case. Refer to the watch diagram (Figure 1) for pusher locations.

1. Press the "MODE" pusher (typically on the bottom left) repeatedly to cycle through different digital display modes (e.g., Time, Date, Alarm, Stopwatch).
2. When in the desired setting mode (e.g., Time/Date), press and hold the "SET" pusher (typically on the bottom right) until the digits begin to flash.
3. Use the "ADJUST" or "START/STOP" pushers (typically top left/right) to increment or decrement the flashing digits.
4. Press the "MODE" pusher to move to the next setting field (e.g., hours, minutes, month, day, year).
5. Once all settings are complete, press the "SET" pusher again to exit the setting mode.

Betjeningsvejledning

1. Digital Display Modes

Press the "MODE" pusher to cycle through the following functions:

• Tidstilstand: Displays current digital time (hours, minutes, seconds) and often the day of the week.
• Datotilstand: Displays the current month, day, and year.
• Alarmtilstand: Allows setting and activating an audible alarm.
• Stopurstilstand: Functions as a timer for measuring elapsed time.

2. INDIGLO Natlampe

To illuminate the watch face in low-light conditions, press the INDIGLO pusher (typically the top right pusher or the crown itself, depending on the model). The entire dial will glow for a few seconds.

3. Vandafvisende

This watch is water resistant to 50 meters (164 feet). This rating means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Do not operate pushers or the crown while the watch is wet or submerged, as this can compromise the water resistance seal.

Opretholdelse

1. Rensning

Rengør dit ur regelmæssigt med en blød kludamp cloth. For the fabric strap, a mild soap solution can be used, followed by thorough rinsing and air drying. Avoid harsh chemicals or abrasive materials.

2. Udskiftning af batteri

The watch is powered by a quartz movement, which requires a battery. When the watch stops or the INDIGLO light dims significantly, the battery may need replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

3. Opbevaring

When not in use, store your watch in a cool, dry place away from direct sunlight and extreme temperatures. Avoid exposing the watch to strong magnetic fields.

Fejlfinding

• Uret kører ikke: Kontroller om kronen er trykket helt ind. Hvis uret stadig ikke går, skal batteriet muligvis udskiftes.
• Digital Display Blank or Faint: This typically indicates a low battery.
• Vand indeni vagt: If moisture appears inside the watch, have it inspected by a professional immediately to prevent damage.
• Forkert tidspunkt/dato: Refer to the "Setting Analog Time" and "Setting Digital Time and Date" sections for adjustment procedures.

Specifikationer

Garanti og support

1. Garantioplysninger

This TIMEX Expedition Analog-Digital Watch MF46 comes with a 1 års fabriksgaranti. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear.

2. Kundesupport

For warranty claims, service, or technical assistance, please contact TIMEX customer support. Refer to the official TIMEX webwebstedet eller din købsdokumentation for kontaktoplysninger specifikke for din region.
