Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your SCS Sentinel MecaBell 3250 wired electromechanical doorbell. This doorbell features an integrated 8V transformer and produces a classic "Ding Dong" sound. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Sikkerhedsoplysninger
- Elektrisk sikkerhed: Installation must be performed by a qualified electrician or competent person. Ensure the main power supply is disconnected before commencing any electrical work. This device operates on 230V AC.
- Polaritet: Pay close attention to wiring polarity as indicated in the installation section. Incorrect wiring may damage the unit or pose a safety hazard.
- Overheating Risk: Avoid continuously pressing the doorbell button for extended periods. Prolonged activation can lead to overheating and potential damage to the internal components.
- Kun indendørs brug: This doorbell is designed for indoor use in dry environments. Do not expose it to moisture or extreme temperatures.
- Børn: Opbevar enheden utilgængeligt for børn.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- SCS Sentinel MecaBell 3250 Wired Electromechanical Doorbell Unit
- Monteringsskruer (x2)
- Vægstik (x2)
- Instruktionsmanual (dette dokument)
Image: The SCS Sentinel MecaBell 3250 doorbell unit shown in its retail packaging, indicating included components and features.
Opsætning og installation
Følg disse trin for korrekt installation:
- Vælg placering: Select a suitable indoor location for the doorbell unit, typically near the entrance or in a central area where the sound can be heard clearly.
- Afbryd strømmen: Before any wiring, ensure the main electrical supply to the circuit where the doorbell will be connected is completely switched off at the circuit breaker.
- Montering:
- Mark the positions for the two mounting screws on the wall.
- Bor pilothuller på de markerede positioner.
- Sæt vægpropperne i de borede huller.
- Secure the doorbell unit to the wall using the provided screws.
- Wiring (230V AC):
The MecaBell 3250 operates on 230V AC and has an integrated transformer. Connect the doorbell unit to your existing doorbell button and 230V AC power supply as follows:
- Tilslut Phase (Live) wire from your 230V AC supply to the right terminal of the doorbell unit.
- Tilslut Neutral ledning from your 230V AC supply to the left terminal of the doorbell unit.
- Sørg for, at alle forbindelser er sikre og isolerede.
Warning: Incorrect wiring can cause damage or electrical shock. If unsure, consult a qualified electrician.
- Gendan strøm: Once all connections are secure and the unit is mounted, restore power at the circuit breaker.
- Test funktionalitet: Press the doorbell button to verify that the unit produces the "Ding Dong" sound.

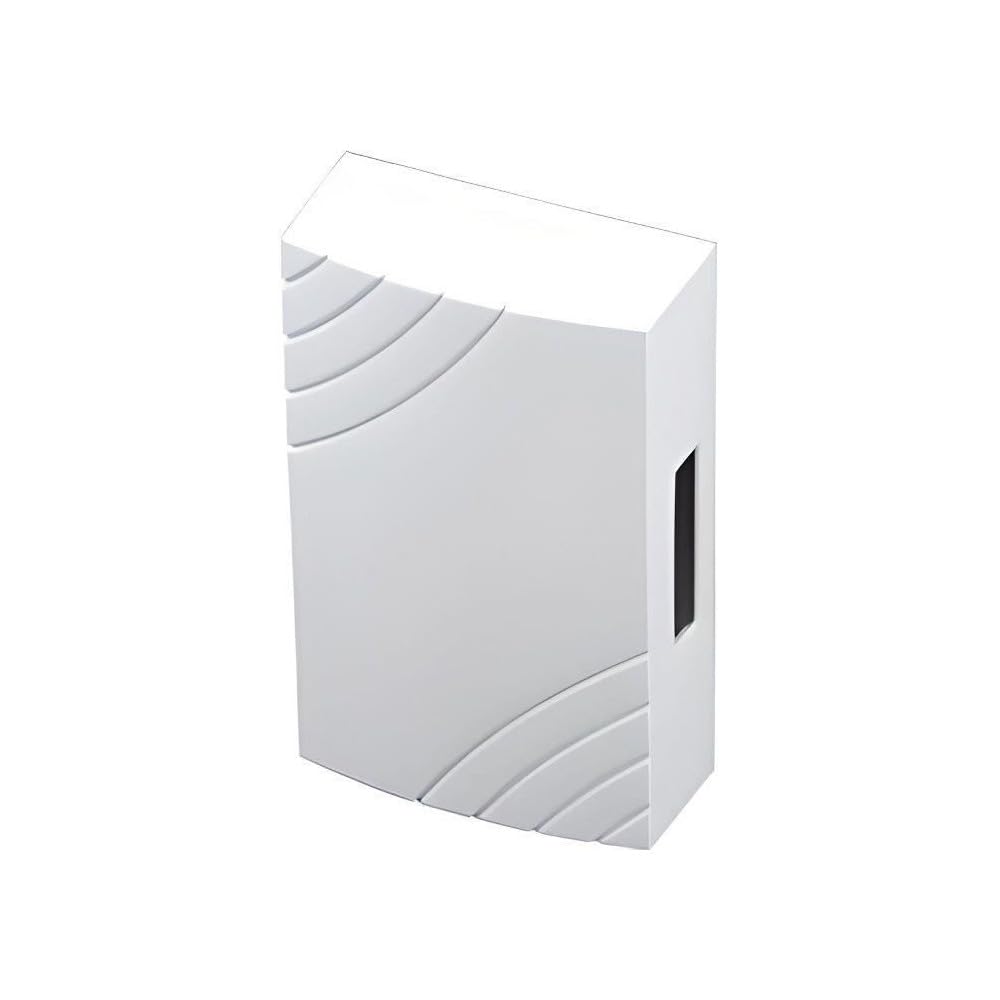

Image: The SCS Sentinel MecaBell 3250 doorbell unit, showing its compact white design with curved accents.
Betjeningsvejledning
The SCS Sentinel MecaBell 3250 is designed for simple operation:
- When the external doorbell button is pressed, the unit will produce a clear, electromechanical "Ding Dong" sound.
- The sound level is approximately 80 dB(A), ensuring it is audible throughout a typical home environment.
- Release the doorbell button promptly after activation to prevent potential overheating and ensure longevity of the device.
Opretholdelse
The MecaBell 3250 requires minimal maintenance:
- Rensning: Tør enhedens yderside af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Periodically check the wiring connections to ensure they remain secure.
- Ingen dele, der kan serviceres af brugeren: Forsøg ikke at åbne eller reparere enheden selv. Overlad al service til kvalificeret personale.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Dørklokken ringer ikke. |
|
|
| Lyden er svag eller forvrænget. |
|
|
| Unit becomes warm or vibrates excessively when button is held. |
|
|
Specifikationer
| Feature | Detalje |
|---|---|
| Model | MecaBell 3250 (Internal Model Number: SEN4138456) |
| Mærke | SCS Sentinel |
| Type | Wired Electromechanical Doorbell |
| Strømkilde | 230V AC (with integrated 8V transformer) |
| Melodi | 1 (Ding Dong) |
| Lydniveau | 80 dB(A) |
| Dimensioner (L x B x H) | 4.9 x 10.49 x 16.99 cm (ca. 1.93 x 4.13 x 6.69 tommer) |
| Vægt | 578 gram (ca. 1.27 pund) |
| Fixation Type | Vægmontering |
| Overholdelse | CE |
| Oprindelsesland | Frankrig |
Garanti og support
For warranty information and technical support, please refer to the official SCS Sentinel webwebstedet eller kontakt din forhandler. Gem din købsbevis i tilfælde af garantikrav.
For yderligere hjælp kan du besøge SCS Sentinel official webwebsted.
