1. Introduktion
Welcome to the instruction manual for your Cal-Royal CRN900PBF N900PBFALUM 900 Series Aluminum Surface Mount Door Closer. This manual provides essential information for the proper installation, operation, and maintenance of your door closer. Please read these instructions carefully and completely before proceeding with installation or making any adjustments to ensure safe and correct functionality.
2. Sikkerhedsoplysninger
Adhering to these safety guidelines is crucial for preventing injury and ensuring the longevity of the product.
- Brug altid passende personlige værnemidler (PPE), såsom sikkerhedsbriller og handsker, under installationen.
- Ensure all fasteners are securely tightened to prevent loosening, which could lead to product failure or injury.
- Do not attempt to modify the door closer. Unauthorized modifications may void the warranty and compromise the safety and performance of the unit.
- Keep hands and fingers clear of moving parts, especially the arm assembly, during operation and adjustment.
- This product is designed for specific applications. Do not use it for purposes other than its intended use as a door closer.
3. Produktet er slutview
The Cal-Royal 900 Series door closer is a Grade 1 heavy-duty commercial door closer, engineered for durability and reliable performance in various environments, including office buildings and shopping centers. It features a non-handed design for universal installation and offers adjustable closing and latching speeds, along with an adjustable back-check function.
Nøglefunktioner:
- Non-handed Design: Suitable for standard, top-jamb, or parallel arm installation on both left and right-hand doors.
- Justerbar lukkehastighed: Controls the door's movement from its fully open position.
- Adjustable Latching Speed: Regulates the final 10-15 degrees of door closing to ensure proper latch engagement.
- Adjustable Back-Check Function: Provides hydraulic resistance to prevent the door from opening too rapidly or forcefully.
- Grade 1 Certification: Meets ANSI 156.4 standards for high-frequency use.
- UL-listet: Approved for use on fire door assemblies.
- ADA-kompatibel: Meets barrier-free regulations for accessibility.
- Konstruktion: Features precision rack and pinion mechanism with a standard full plastic cover.

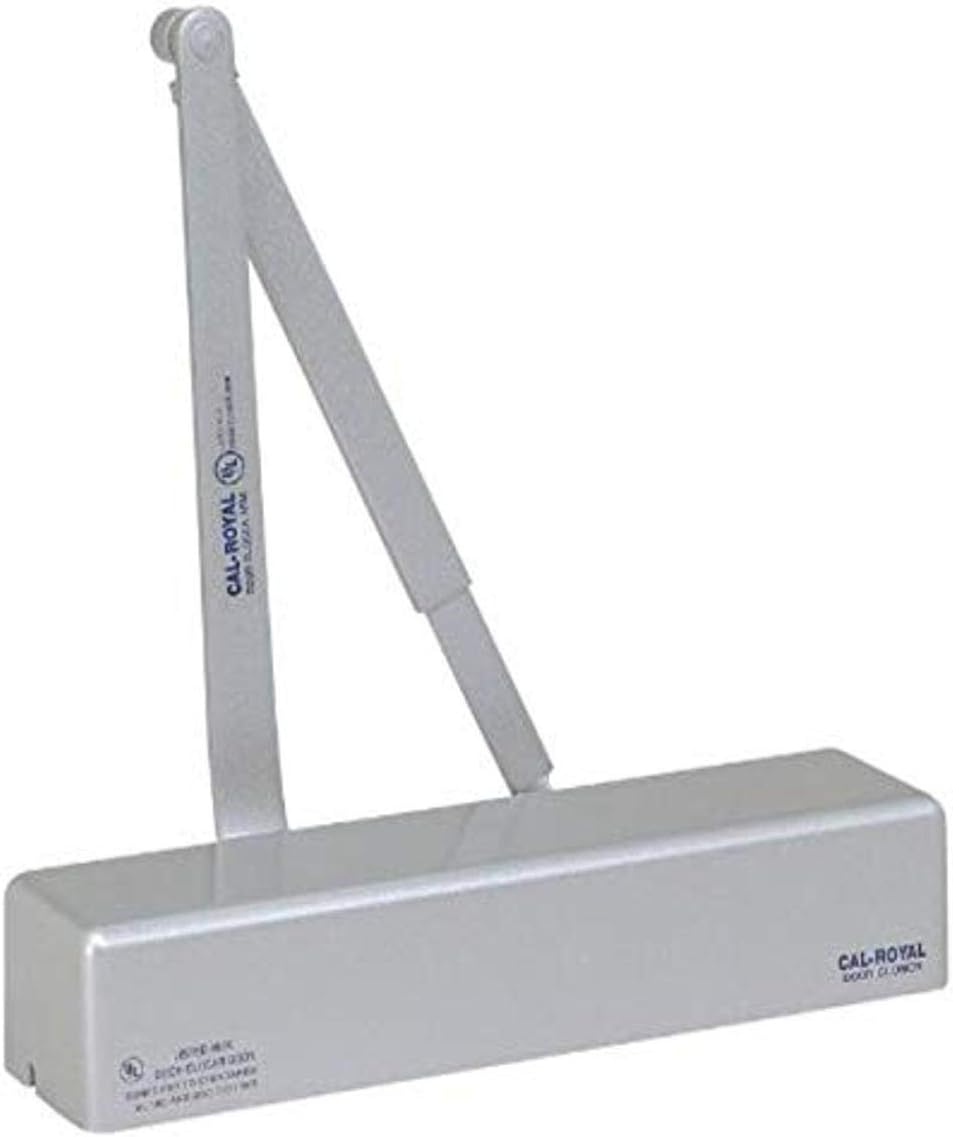

Figure 1: Cal-Royal CRN900PBF Aluminum Surface Mount Door Closer. This image displays the main body of the closer in an aluminum finish, along with its articulated arm assembly. The Cal-Royal branding is visible on both the closer body and the arm.
4. Opsætning og installation
The Cal-Royal CRN900PBF door closer is designed for versatile, non-handed installation, accommodating standard, top-jamb, or parallel arm configurations. Proper installation is critical for optimal performance and safety.
4.1. Før installation:
- Efterse komponenter: Verify that all components are present, including the door closer body, main arm, forearm, parallel arm bracket (if required for your installation type), and all necessary mounting hardware (screws, bolts).
- Review Skabelon: Forsigtigt vedrview the provided installation template (typically included with the product) for precise hole placement and mounting instructions specific to your chosen configuration.
- Door and Frame Integrity: Ensure the door and door frame are structurally sound and capable of supporting the weight and operational forces of the door closer.
- Nødvendige værktøjer: Gather necessary tools such as a drill, drill bits, screwdriver, measuring tape, level, and pencil.
4.2. Installationstrin:
- Select Mounting Configuration: Determine the appropriate mounting configuration (standard, top-jamb, or parallel arm) based on your door's swing direction, frame type, and desired aesthetics.
- Stillingsskabelon: Affix the installation template to the door and/or frame according to the chosen configuration. Use a level to ensure it is straight and accurate. Mark all drilling points clearly.
- Bor pilothuller: Using the appropriate drill bit size as specified in the template, drill pilot holes at all marked locations.
- Mount Closer Body: Securely attach the door closer body to the door or frame using the provided screws or bolts. Ensure it is firmly seated and level.
- Attach Main Arm: Connect the main arm to the closer's spindle. Ensure it is properly aligned and tightened.
- Attach Forearm: Connect the forearm to the main arm. Then, attach the other end of the forearm to the door frame (for standard/top-jamb mount) or to the parallel arm bracket (for parallel arm mount).
- Sikre alle forbindelser: Double-check that all screws, bolts, and arm connections are tightened to the manufacturer's specifications.
5. Betjening og justering
The Cal-Royal CRN900PBF door closer allows for precise adjustment of closing speed, latching speed, and back-check to meet specific operational requirements and user preferences.
5.1. Adjustment Valves:
- Closing Speed Valve (Valve 1): This valve controls the speed at which the door closes from its fully open position until it reaches approximately 10-15 degrees from the closed position.
- Latching Speed Valve (Valve 2): This valve controls the speed of the door for the final 10-15 degrees of its closing cycle. Proper adjustment ensures the door latch engages smoothly without slamming.
- Back-Check Valve (Valve 3): This valve provides hydraulic resistance to slow down the door's opening swing, typically engaging after 70-80 degrees of opening. It helps prevent damage to the door or frame from forceful opening.
5.2. Adjustment Procedure:
- Identificér ventiler: Locate the adjustment valves on the door closer body. Refer to the product diagram or manufacturer's template for exact positions.
- Juster hastighed: Use an appropriate tool (e.g., a flathead screwdriver) to turn the adjustment valves.
- Turning the valve med uret vilje formindske the speed (slow down the door).
- Turning the valve mod uret vilje øge the speed (speed up the door).
- Test and Refine: Make small adjustments (typically quarter-turns) and test the door's operation after each adjustment.
- Start by adjusting the closing speed (Valve 1) to achieve the desired general closing pace.
- Next, adjust the latching speed (Valve 2) to ensure the door latches securely without slamming or failing to close completely.
- Finally, adjust the back-check (Valve 3) if the door is opening too quickly or forcefully.
- Må ikke overspændes: Never overtighten the adjustment valves, as this can damage the seals and lead to fluid leakage.
6. Vedligeholdelse
Regular maintenance helps ensure the continued smooth operation and extends the lifespan of your Cal-Royal door closer.
- Periodisk eftersyn: At least once every six months, inspect the door closer and its arm assembly for any signs of wear, damage, or loose fasteners. Pay close attention to the arm joints and mounting screws.
- Rensning: Clean the exterior of the closer body and arm with a soft, damp klud. Undgå at bruge slibende rengøringsmidler, opløsningsmidler eller barske kemikalier, da disse kan beskadige overfladen eller de indvendige komponenter.
- Stram fastgørelsesanordninger: Re-tighten any loose screws or bolts found during inspection. Do not overtighten.
- Driftstjek: Observe the door closer's operation. It should close smoothly and consistently without excessive noise, grinding, or resistance. If unusual behavior is noted, refer to the troubleshooting section.
- No Internal Lubrication: The door closer is a factory-sealed hydraulic unit and does not require internal lubrication. Do not attempt to open the closer body.
- Væskelækager: If any hydraulic fluid leakage is observed, the closer is likely damaged and should be replaced. Contact Cal-Royal support for assistance.
7. Fejlfinding
This section provides solutions to common issues you might encounter with your door closer.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Door closes too fast | Closing speed valve (Valve 1) is set too open (counter-clockwise). | Turn closing speed valve clockwise in small increments to slow down the door. |
| Door closes too slow | Closing speed valve (Valve 1) is set too closed (clockwise). | Turn closing speed valve counter-clockwise in small increments to speed up the door. |
| Door does not latch completely | Latching speed valve (Valve 2) is set too slow, or closing speed is too fast. | Increase latching speed (counter-clockwise) or slightly decrease closing speed (clockwise). |
| Door slams shut at the end of the cycle | Latching speed valve (Valve 2) is set too fast. | Turn latching speed valve clockwise in small increments to slow down the final closing. |
| Door opens too far or violently | Back-check function is not engaged or set too low (Valve 3). | Adjust the back-check valve to increase hydraulic resistance during opening. |
| Oil leakage from closer body | Internal seals are damaged, or the closer body is compromised. | This indicates a damaged unit. The closer cannot be repaired and must be replaced. Contact Cal-Royal support. |
| Door closer makes grinding noise | Internal mechanical issue or lack of fluid. | The closer is likely damaged. Replacement is recommended. Contact Cal-Royal support. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | CRN900PBF |
| Mærke | Cal-Royal |
| Serie | 900-serien |
| Grad | 1. klasse |
| Materiale | Aluminium |
| Slutte | Aluminium |
| Closer Body Length | 11-3/4 tommer (29.85 cm) |
| Installationstype | Surface Mount, Screw-In |
| Aflevering | Non-handed (Universal) |
| Certificeringer | ANSI 156.4, UL Listed for Fire Door Assemblies, ADA Barrier-Free |
| Varens vægt | 7.96 pund (3.61 kg) |
| Product Dimensions (Closer Body) | Approximately 11.75" L x 4.9" W x 3.2" H |
| UPC | 640265324970 |
9. Garantioplysninger
Specific warranty details for the Cal-Royal CRN900PBF door closer are not available in the provided product data. For comprehensive warranty terms and conditions, including coverage duration and claims procedures, please refer to the official Cal-Royal webhjemmeside eller kontakt deres kundeserviceafdeling direkte.
10. Kundesupport
For technical assistance, inquiries about replacement parts, or any other questions regarding your Cal-Royal CRN900PBF door closer, please reach out to the manufacturer.
Fabrikant: Cal-Royal
Webwebsted: www.cal-royal.com
Bemærk venligst, at website link is provided as a general reference to the manufacturer's official site. Specific contact information may vary and can typically be found on their webwebsted.
