Waring FP2200 Food Processor User Manual

Indledning

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Waring FP2200 6-Qt. Batch Bowl and Continuous-Feed Food Processor. Please read all instructions carefully before use to ensure optimal performance and longevity of your appliance.

The Waring FP2200 is a commercial-grade food processor designed for high-volume food preparation. It features a powerful 3/4 HP motor and versatile processing capabilities, including both batch bowl and continuous-feed operations.

Image: The Waring FP2200 Food Processor, showing both the main unit with the batch bowl and the continuous feed attachment.

Vigtige sikkerhedsforanstaltninger

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger.

• Læs alle instruktioner, inden du betjener apparatet.
• Nedsænk ikke motorbasen i vand eller andre væsker.
• Keep hands and utensils out of the processing bowl while operating to prevent injury and damage to the processor.
• Always use the food pusher when feeding food through the continuous feed tube. Never use fingers or other utensils.
• Ensure all parts are properly assembled and locked in place before operation.
• Træk stikket ud af stikkontakten, når det ikke er i brug, før du sætter dele på eller af, og før rengøring.
• Brug ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet tabt eller beskadiget på nogen måde.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

Dele og komponenter

Familiarize yourself with the various parts of your Waring FP2200 Food Processor:

• Motorbase: Houses the 3/4 HP commercial-grade motor and controls.
• Batch Bowl: Durable Lexan polycarbonate bowl with a 6-quart dry capacity or 4-quart wet capacity.
• Continuous-Feed Attachment: Polycarbonate attachment with a super-large feed tube for continuous processing.
• Låg: Secure lid for both batch bowl and continuous-feed operations.
• Madskubbemaskine: Used to guide food through the feed tube.
• "S" Blade (Chopping Blade): For chopping, mixing, and pureeing. (Model: 3406E13)
• Slicing Disc: 1/8" (3mm) slicing disc. (Model: 3406E04)
• Shredding Disc: 3/16" (5mm) shredding disc. (Model: 3406E10)

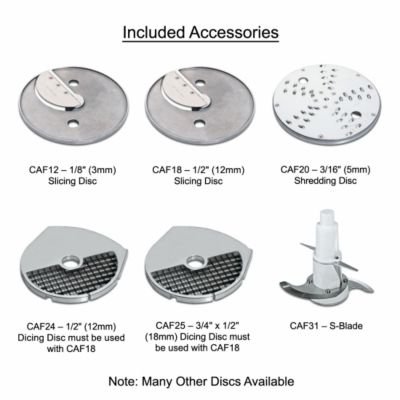

Image: A selection of included accessories, including various slicing and shredding discs, and the S-blade.

Opsætning og montering

Indledende opsætning:

1. Pak alle komponenter ud, og fjern al emballage.
2. Wash all removable parts (bowl, lid, blades, discs) in warm, soapy water. Rinse thoroughly and dry.
3. Place the motor base on a clean, dry, stable surface.

Assembling for Batch Processing:

1. Place the batch bowl onto the motor base, aligning the handle with the front of the base. Twist clockwise until it locks securely.
2. Carefully place the desired blade (e.g., "S" blade) onto the center shaft in the bowl. Ensure it sits firmly.
3. Add ingredients to the bowl. Do not exceed the maximum fill line.
4. Place the lid onto the bowl, aligning the lid tab with the handle. Twist clockwise until it locks securely. The unit will not operate unless the lid is properly locked.

Assembling for Continuous-Feed Processing:

1. Place the continuous-feed attachment onto the motor base, aligning it correctly and twisting to lock.
2. Insert the desired slicing or shredding disc onto the shaft within the continuous-feed attachment.
3. Place the lid with the feed tube onto the continuous-feed attachment, aligning and twisting to lock.
4. Position a receiving container under the discharge chute.

Betjeningsvejledning

Generel drift:

1. Ensure the unit is properly assembled and locked.
2. Sæt strømkablet i en jordet stikkontakt (120V).
3. Use the smooth touchpad controls to operate the unit.
4. For continuous-feed operation, feed ingredients through the super-large feed tube using the food pusher. Do not force food.
5. When processing is complete, turn off the unit and unplug it before disassembling or removing food.

Forarbejdningstips:

• For best results, process similar-sized pieces of food.
• Do not overload the batch bowl. Process in batches if necessary.
• When using the continuous-feed attachment, ensure the receiving container is large enough to hold the processed food.

Image: A user operating a Waring food processor, demonstrating typical use.

Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure the longevity and optimal performance of your food processor.

Rensning:

1. Tag altid stikket ud af stikkontakten før rengøring.
2. Disassemble all removable parts: bowl, lid, blades, and discs.
3. Wash removable parts in warm, soapy water. Rinse thoroughly and dry immediately. These parts are also dishwasher safe (top rack recommended).
4. Tør motorbasen af ​​med adamp klud. Motorbasen må ikke nedsænkes i vand, og den må ikke sprøjtes med vand.
5. For stubborn food residue, use a non-abrasive brush or sponge.
6. Sørg for, at alle dele er helt tørre, før de monteres igen eller opbevares.

Opbevaring:

Store the food processor and its accessories in a clean, dry place. Keep blades and discs in a safe location to prevent accidental injury.

Fejlfinding

If the problem persists after attempting these solutions, please contact Waring Customer Service.

Specifikationer

Garanti og support

Waring provides a limited warranty for its commercial products. Please refer to the official Waring website or the warranty card included with your purchase for specific terms and conditions regarding your FP2200 Food Processor.

For technical assistance, replacement parts, or service inquiries, please contact Waring Customer Service:

• Waring kommerciel Webwebsted: www.waringcommercialproducts.com
• Kundeservice telefon: Refer to your product documentation or the webwebstedet for det seneste kontaktnummer.

When contacting support, please have your model number (FP2200) and serial number (if applicable) ready.
