1. Introduktion
Tak for købetasing the Energizer LED Lantern FFL814. This manual provides essential information for the safe and efficient operation of your lantern. Please read it thoroughly before use and retain it for future reference.
Nøglefunktioner:
- Maximum brightness of 400 lumens.
- Maximum runtime of 100 hours (in low mode, using 8 AA batteries).
- Self-standing design with an integrated rear stand.
- IPX4 vandtæthedsklassificering.
- 360-degree illumination capability.
- Sammenfoldeligt design for nem opbevaring og bærbarhed.
- Stepless dimming function for adjustable brightness.
2. Opsætning
Installation af batteri
- Locate the battery compartment cover on the back of the lantern.
- Open the cover by sliding or unlatching it according to the markings.
- Insert 4 or 8 AA alkaline batteries, ensuring correct polarity (+/-) as indicated inside the compartment. For maximum performance and runtime, 8 batteries are recommended.
- Luk dækslet til batterirummet forsvarligt.
Image: Battery compartment with 8 AA batteries. The lantern can operate with 4 or 8 AA batteries, with 8 providing optimal performance.
3. Betjeningsvejledning
Tænd/sluk og justering af lysstyrke
- Tænd: Press the power button once to turn on the lantern.
- Lysstyrkejustering (trinløs dæmpning): While the lantern is on, press and hold the power button. The brightness will gradually increase or decrease. Release the button when the desired brightness level is reached.
- Sluk: Press the power button again to turn off the lantern.
Image: Light Fusion Technology provides uniform illumination. The stepless dimming function allows precise brightness control by pressing and holding the power button.
Using the Stand and Foldable Design
- The lantern features an integrated rear stand that allows it to be self-standing on flat surfaces.
- Adjust the angle of the light panel to direct illumination as needed. The design supports 360-degree illumination.
- For storage or transport, fold the lantern flat to minimize space.
Image: The lantern can be angled to function as a stand light or area light.
Image: When folded, the lantern is easy to store and carry.
4. Vedligeholdelse
- Rensning: Tør lanternen af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Udskiftning af batteri: Replace all batteries at the same time with new alkaline batteries. Do not mix old and new batteries or different battery types.
- Opbevaring: If storing the lantern for an extended period, remove the batteries to prevent leakage and damage. Store in a cool, dry place.
5. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lanterne tænder ikke. | Batterierne er brugt op eller forkert installeret. | Udskift batterierne med nye, og sørg for korrekt polaritet. |
| Lyset er svagt eller flimrer. | Lav batteristrøm. | Replace all batteries with new ones. Ensure 8 batteries are used for optimal performance. |
| Brightness adjustment not working. | Button not held long enough or malfunction. | Ensure the button is pressed and held for continuous adjustment. If issue persists, contact support. |
6. Specifikationer
- Model: FFL814
- Mærke: Energigiver
- Lyskilde: LED
- Maximum Light Output: 400 lumen
- Strømkilde: Battery powered (4 or 8 AA alkaline batteries)
- Maksimal køretid: 100 hours (low mode, with 8 AA batteries)
- Vandtæthed: IPX4
- Vægt: Approximately 486 grams (product only)
- Dimensioner (pakket): 29.5 x 20 x 4 cm
- Andre funktioner: Energy saving, Foldable design, 360-degree illumination, Stepless dimming

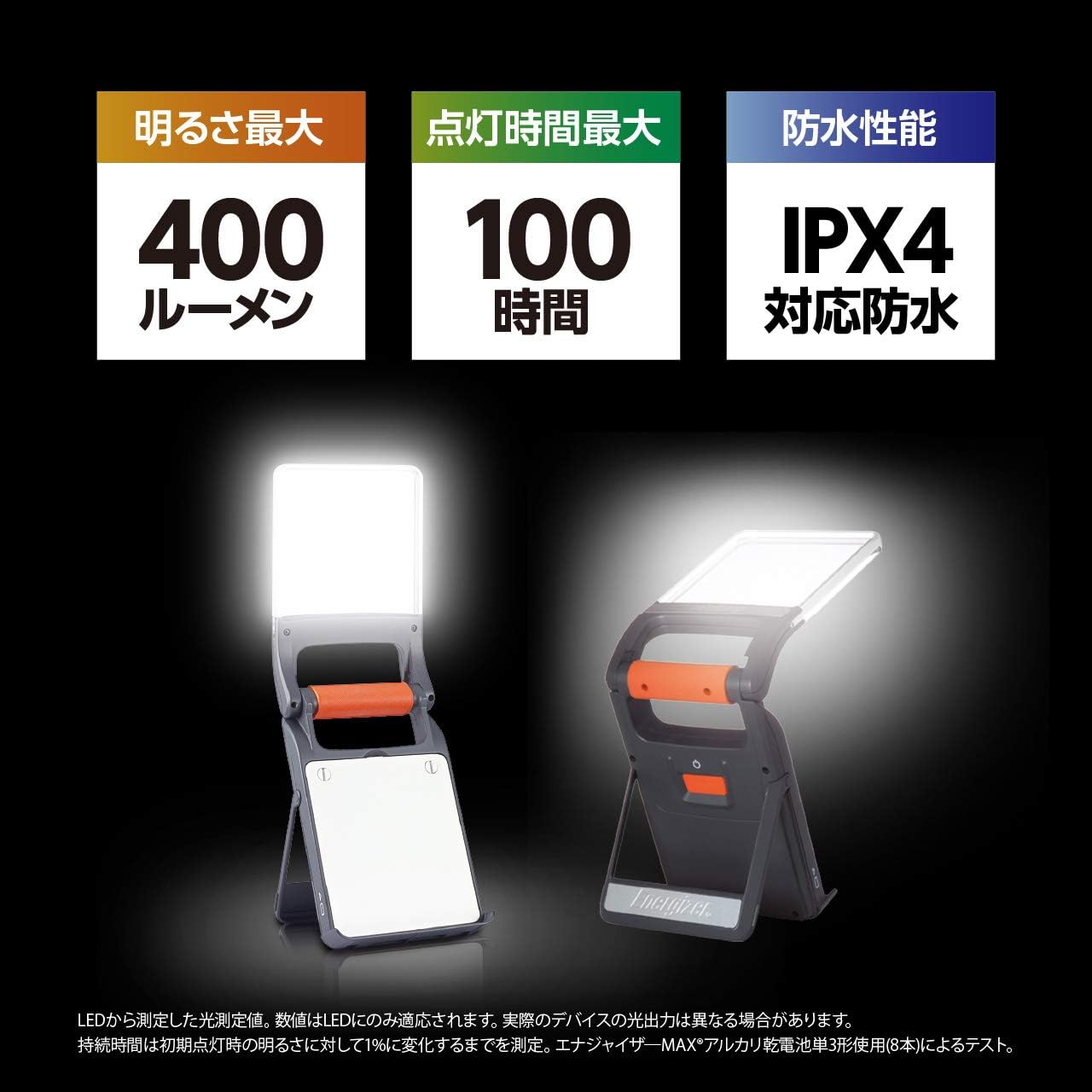

Billede: Overview of key performance specifications including brightness, runtime, and water resistance.
7. Garanti og support
Producentens garanti
This Energizer LED Lantern FFL814 comes with a manufacturer's warranty of 12 months from the date of purchase. Please retain your proof of purchase for warranty claims.
Kundesupport
For technical assistance, warranty service, or general inquiries, please refer to the official Energizer website or contact their customer support channels available in your region.
