Leica V-LUX 3 digitalkamera brugsanvisning

1. Introduktion

This manual provides essential information for the proper use and care of your Leica V-LUX 3 digital camera. The Leica V-LUX 3 is designed for versatile photography, featuring a 24x super-telephoto zoom lens and a 12.1-megapixel CMOS image sensor. It is capable of capturing high-quality still images and recording full-HD video.

Please read this manual thoroughly before operating the camera to ensure optimal performance and longevity of the device.

2. Produktet er slutview

2.1 Nøglefunktioner

• 12.1-megapixel CMOS image sensor for high-quality imaging.
• 24x optical super-telephoto zoom lens (25-600mm equivalent) for extensive focal length range.
• Full-HD video recording capability (1920 x 1080 at 60 fps).
• Optical Image Stabilization to reduce blur.
• 3-inch articulating LCD display and electronic viewfinderen.
• Fast continuous shooting up to 12 frames per second.

2.2 Hvad er der i æsken

The Leica V-LUX 3 package typically includes:

• Leica V-LUX 3 Camera Body
• Lithium-Ion Rechargeable Battery (BP-DC 9)
• Batterioplader
• Skulderrem
• USB kabel
• Lens Cap
• Instruktionsmanual (dette dokument)

3. Opsætning

3.1 Opladning af batteriet

1. Insert the battery into the provided charger.
2. Connect the charger to a power outlet. The charging indicator light will illuminate.
3. Once charging is complete, the indicator light will change or turn off. Disconnect the charger and remove the battery.

Note: Fully charge the battery before first use for optimal performance.

3.2 Isætning af batteri og hukommelseskort

Ensure the camera is turned off before inserting or removing the battery or memory card.

1. Open the battery/card compartment cover located on the bottom of the camera.
2. Insert the charged battery with the contacts facing the correct direction, as indicated inside the compartment. Push until it clicks into place.
3. Insert an SD/SDHC/SDXC memory card into the card slot with the label facing the correct direction. Push until it clicks.
4. Luk dækslet forsvarligt.

Figur 1: Forside view of the Leica V-LUX 3 camera. This image displays the lens, built-in flash, and the Leica branding on the camera body.

3.3 Første opstart og grundlæggende indstillinger

1. Slide the ON/OFF switch to the 'ON' position.
2. The camera's LCD screen will power on.
3. Follow the on-screen prompts to set the date, time, and language. Use the directional buttons and 'MENU/SET' button to navigate and confirm selections.

4. Betjening af kameraet

4.1 Grundlæggende fotografering

1. Tænd kameraet.
2. Rotate the mode dial (located on the top of the camera) to select your desired shooting mode (e.g., Program AE, Aperture Priority, Shutter Priority, Manual, Scene Modes).
3. Frame your shot using the LCD monitor or the electronic viewfinderen.
4. Press the shutter button halfway down to activate autofocus and exposure metering.
5. Tryk udløserknappen helt ned for at tage billedet.

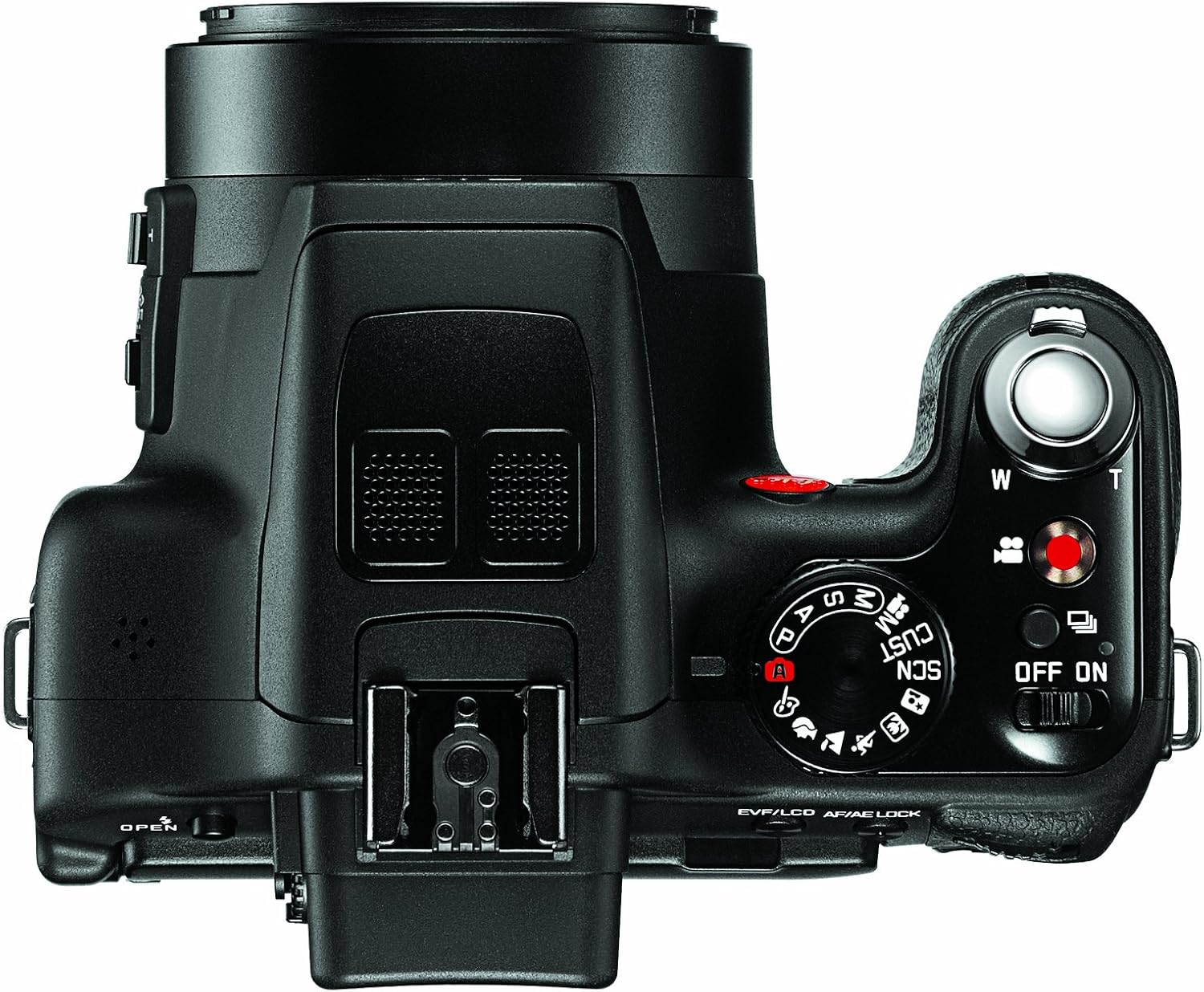

Figur 2: Øverst view of the Leica V-LUX 3 camera. This image highlights the mode dial, shutter button, and zoom lever.

4.2 Zoomfunktion

The camera features a 24x optical zoom lens. Use the zoom lever, typically located around the shutter button, to adjust the focal length.

• Push the zoom lever towards 'W' (Wide) to zoom out.
• Push the zoom lever towards 'T' (Telephoto) to zoom in.

Figur 3: Side view of the Leica V-LUX 3 camera. This image shows the side controls, including the zoom rocker and focus mode switch.

4.3 Videooptagelse

Sådan optager du video:

1. Tryk på den dedikerede videooptagelsesknap (ofte markeret med en rød prik) for at starte optagelsen.
2. Tryk på knappen igen for at stoppe optagelsen.
3. The camera records in AVCHD and MPEG-4 formats, with resolutions up to 1920 x 1080 at 60 frames per second.

4.4 Brug af blitz

The Leica V-LUX 3 has a built-in flash. To use the flash:

1. Locate the flash pop-up button or lever, typically near the flash unit.
2. Press the button to raise the flash.
3. In certain shooting modes (e.g., Auto), the flash may pop up automatically in low-light conditions.
4. Access flash modes (Auto, Red-eye Reduction, Forced Flash, Slow Sync, Flash Off) through the camera's menu system.

Figur 4: Forside view of the Leica V-LUX 3 camera with the built-in flash in the deployed (popped-up) position.

4.5 Fokusering

The camera offers both autofocus and manual focus options.

• Autofokus (AF): The default setting. Press the shutter button halfway to allow the camera to automatically focus on your subject. The V-LUX 3 uses contrast detection AF with 23 autofocus points.
• Manuel fokus (MF): Switch to MF mode using the dedicated switch on the lens barrel or through the menu. Rotate the focus ring on the lens to adjust focus manually.

5. Vedligeholdelse

5.1 Rengøring af kameraet

• Linse: Brug en blød, fnugfri klud eller en linsebørste til forsigtigt at fjerne støv. Brug en specialiseret linserengøringsopløsning på en klud, ikke direkte på linsen, til at fjerne snavs.
• Kamerahus: Tør af med en blød, tør klud. Ved genstridigt snavs, tør letampen the cloth with water. Avoid using strong cleaning agents.
• LCD skærm: Brug en blød, tør klud. Undgå at trykke for hårdt.

5.2 Pleje af batterier

• Opbevar batterierne på et køligt, tørt sted, når de ikke er i brug.
• Undgå at aflade batteriet helt ofte.
• Udsæt ikke batterier for ekstreme temperaturer.

5.3 Opbevaring

When storing the camera for extended periods, remove the battery and memory card. Store the camera in a dry, dust-free environment, preferably in a camera bag or case to protect it from impacts and moisture.

6. Fejlfinding

7. Specifikationer

8. Garanti- og supportoplysninger

8.1 Garanti

This product is covered by a 90-day parts and labor warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

Gem venligst dit købsbevis for garantikrav.

8.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Leica customer support. Refer to the official Leica webwebstedet eller din købsdokumentation for aktuelle kontaktoplysninger.
